Horizontal swivelling Medical Arm 2 x 300 mm

for monitoring Philips Intellivue Séries

(light applications up to 8 Kg)

Mounting on Anesthesia Machines (All manufacturers).

Product number: WM 260.128 - Horizontal swivelling Medical Arm 2 x 300 mm

for monitoring Philips Intellivue Séries

(light applications up to 8 Kg)

Mounting on Anesthesia Machines (All manufacturers).

Product sheet PDF

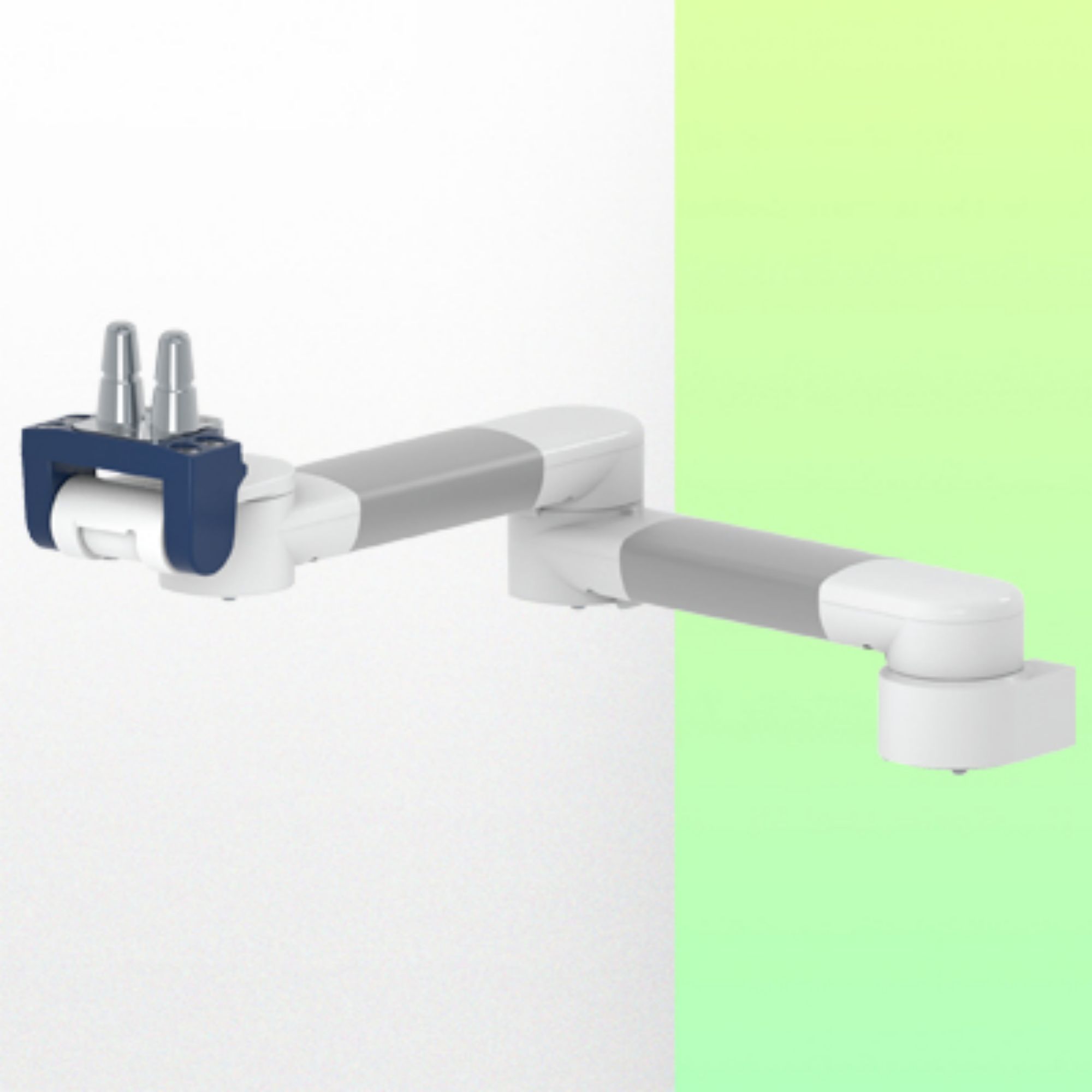

This 2 x 300 mm Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Light Application

* Mounting on Anaesthesia Machines (All Manufacturers)

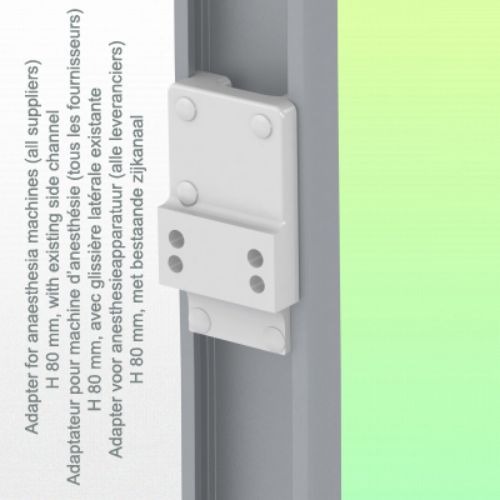

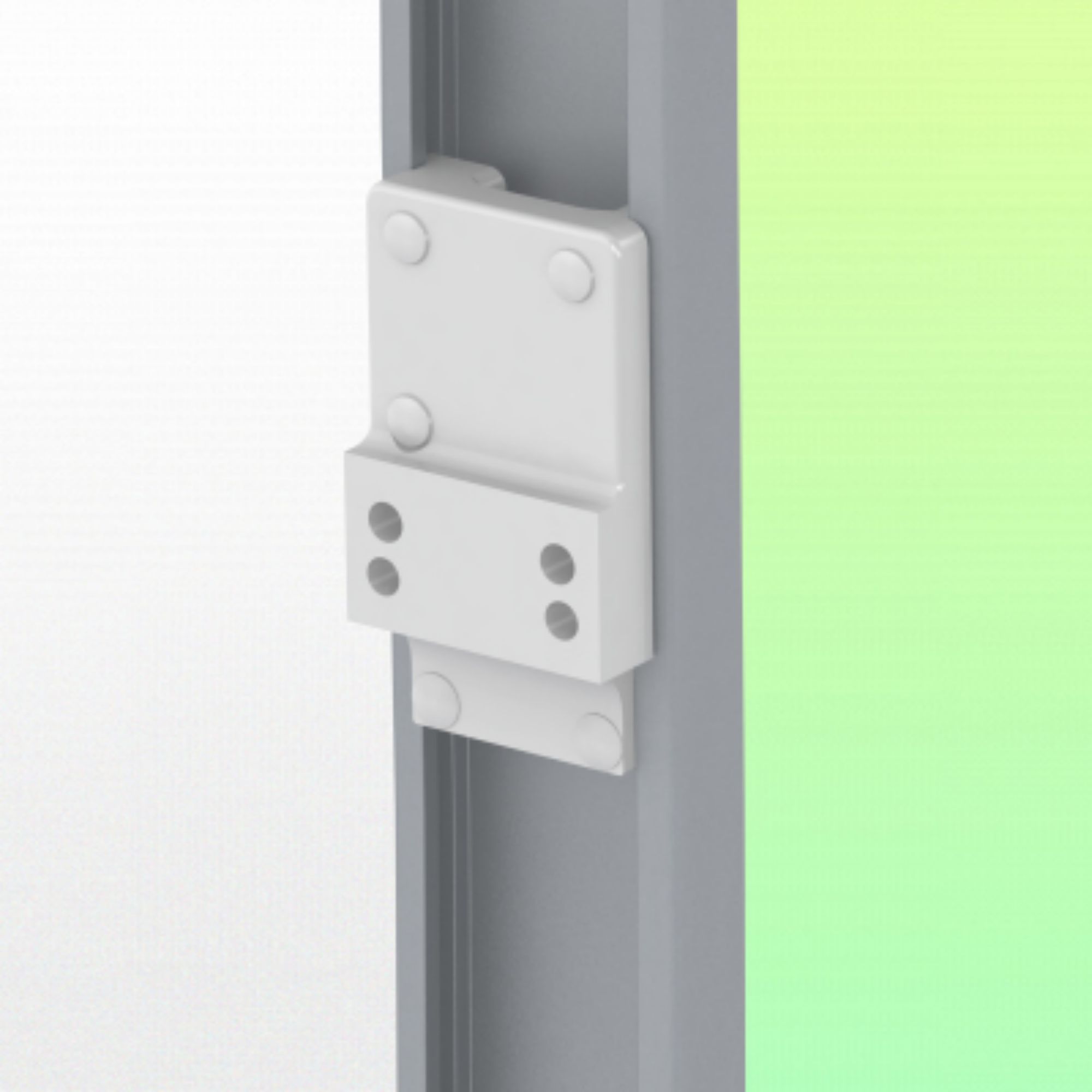

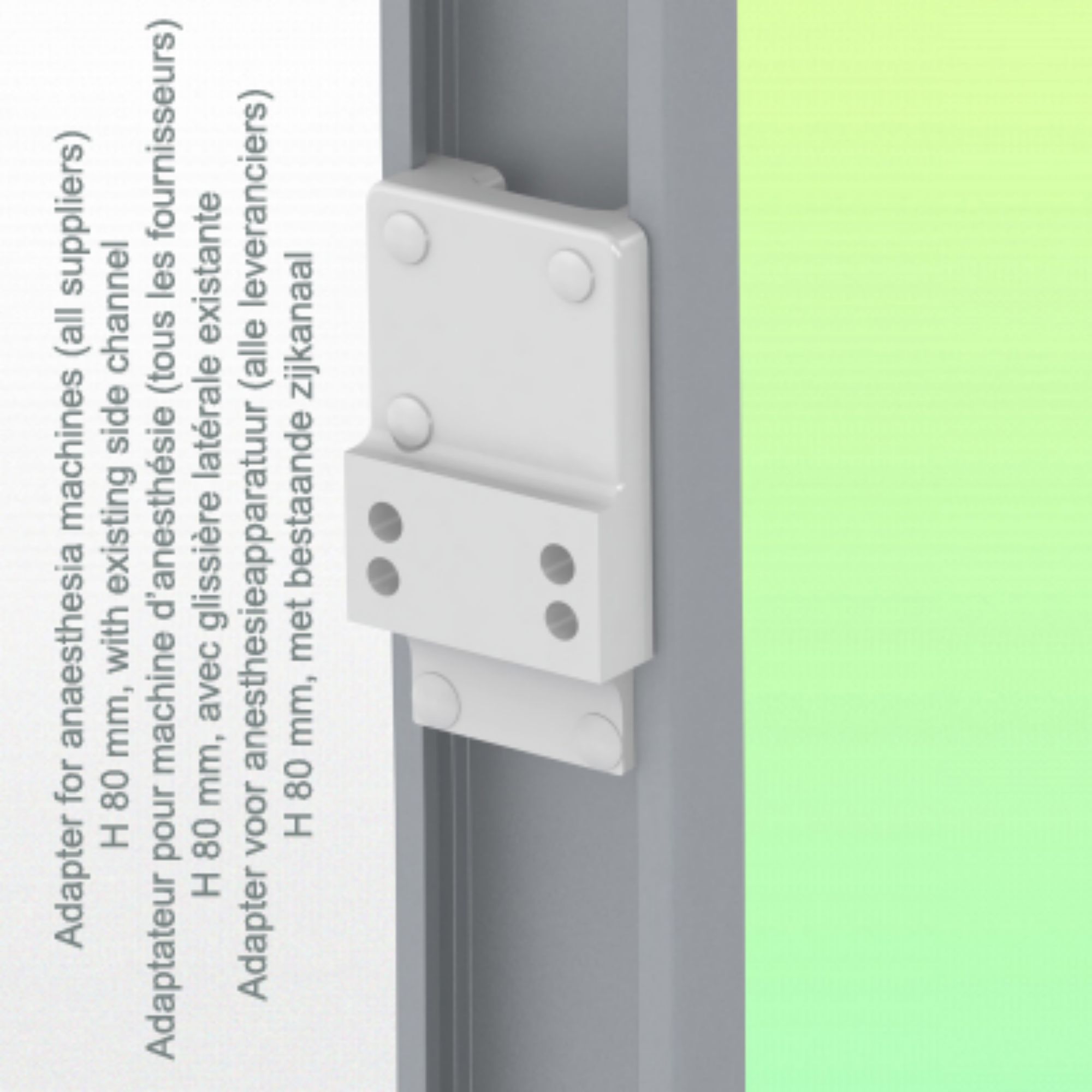

* This medical arm simply attaches to the existing rail of the machine and is then adjusted to the rail and clamped with the two grips.

* It has no height adjustment.

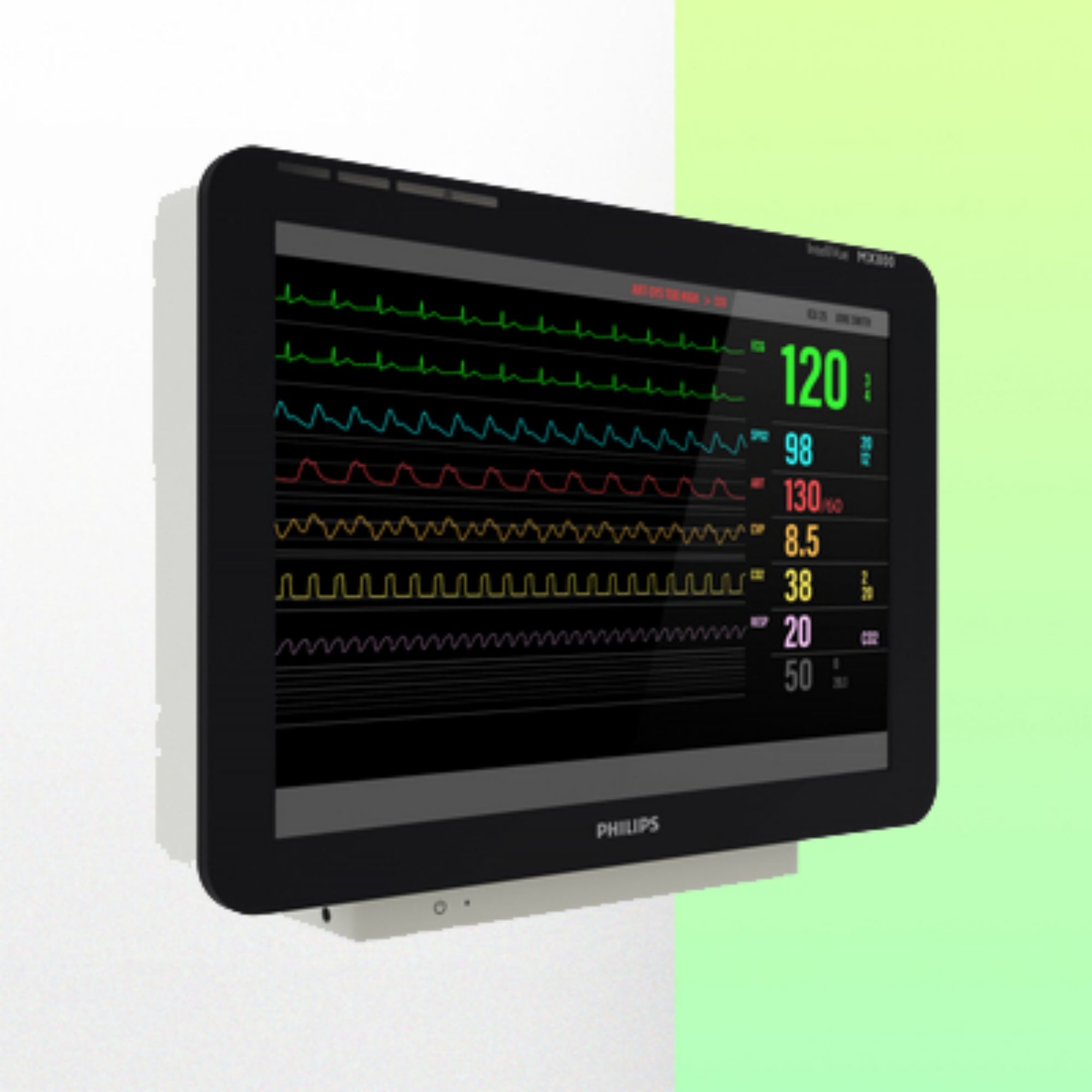

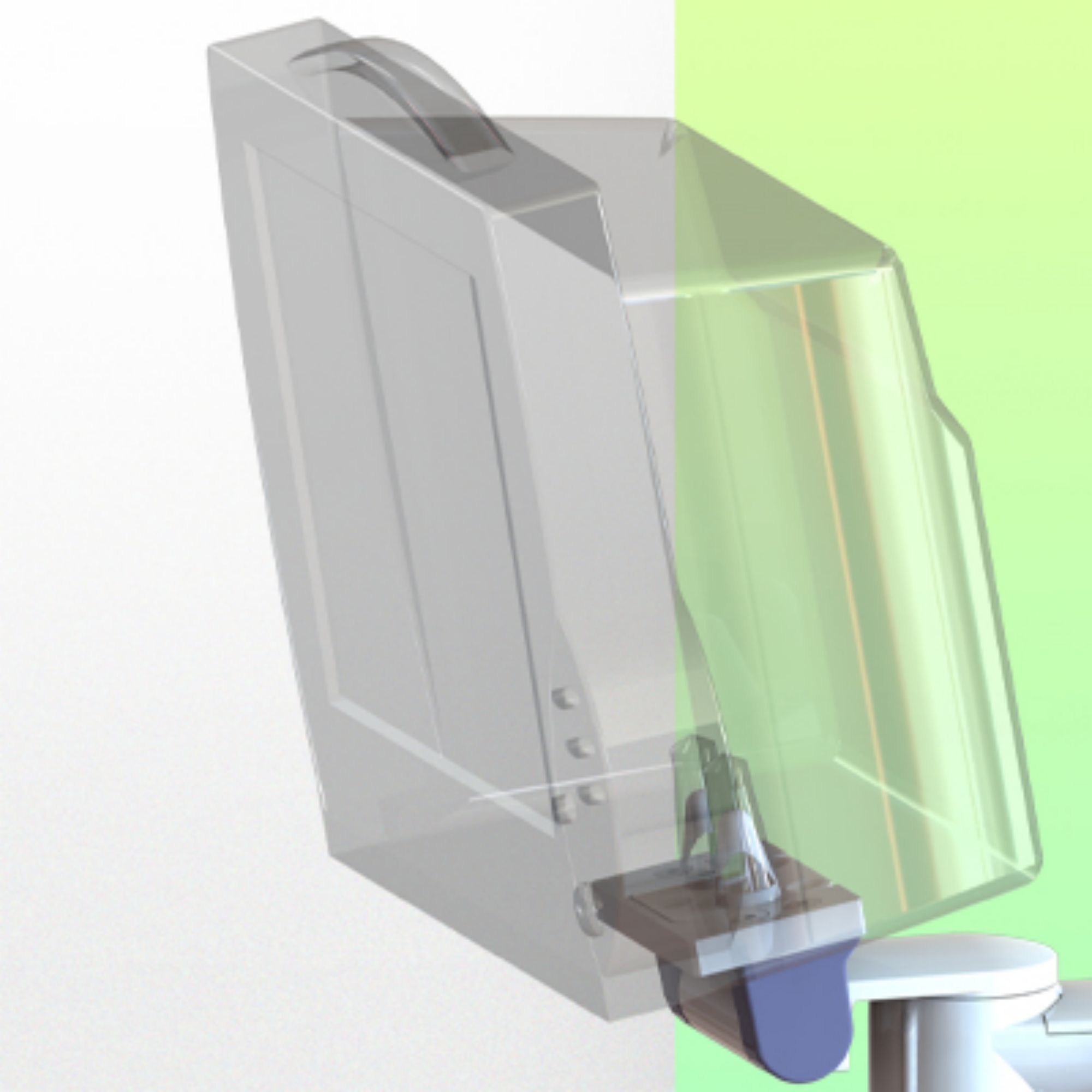

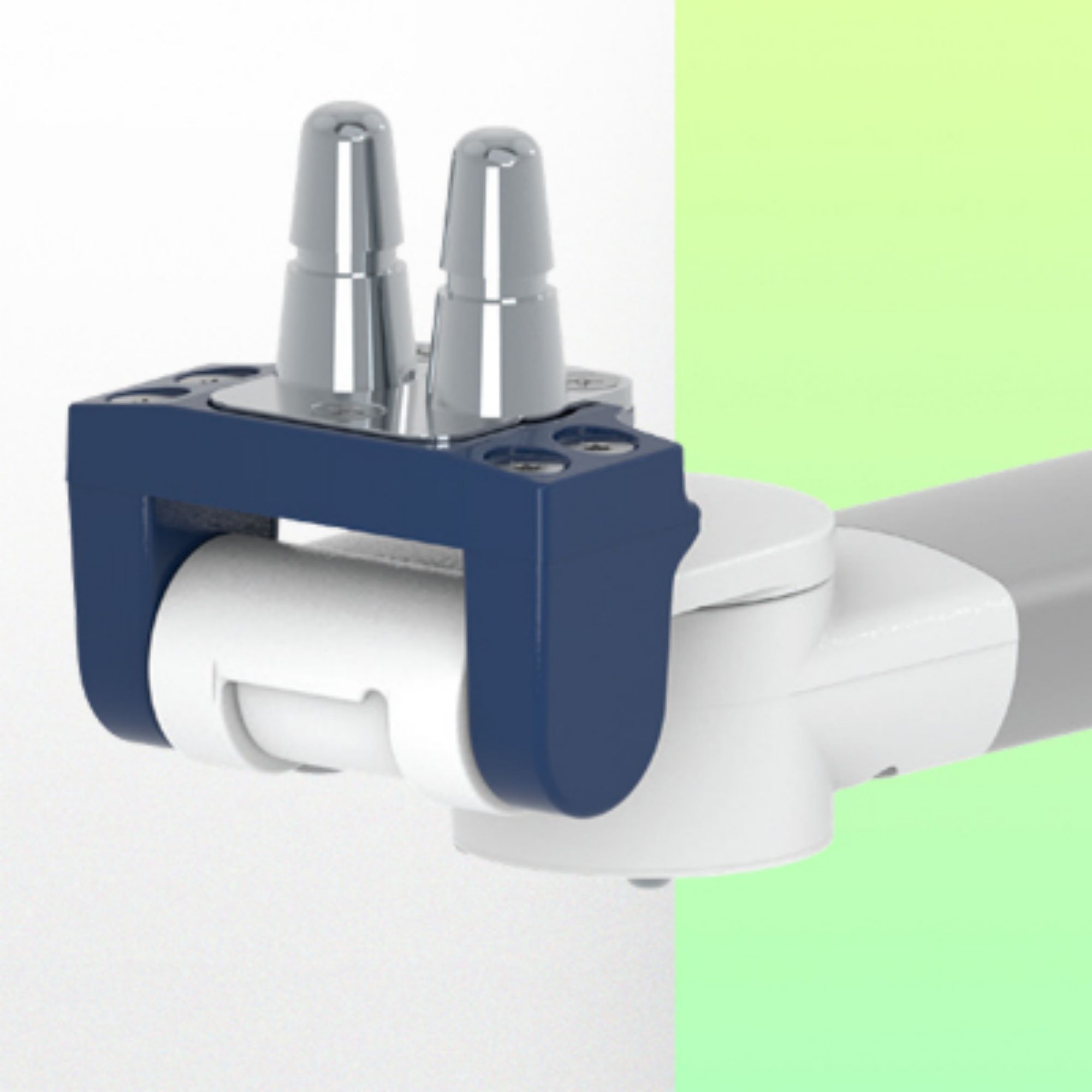

* The head of this arm complies with the Philips Intellivue Series mounting standard, which does not exceed 8 Kg.

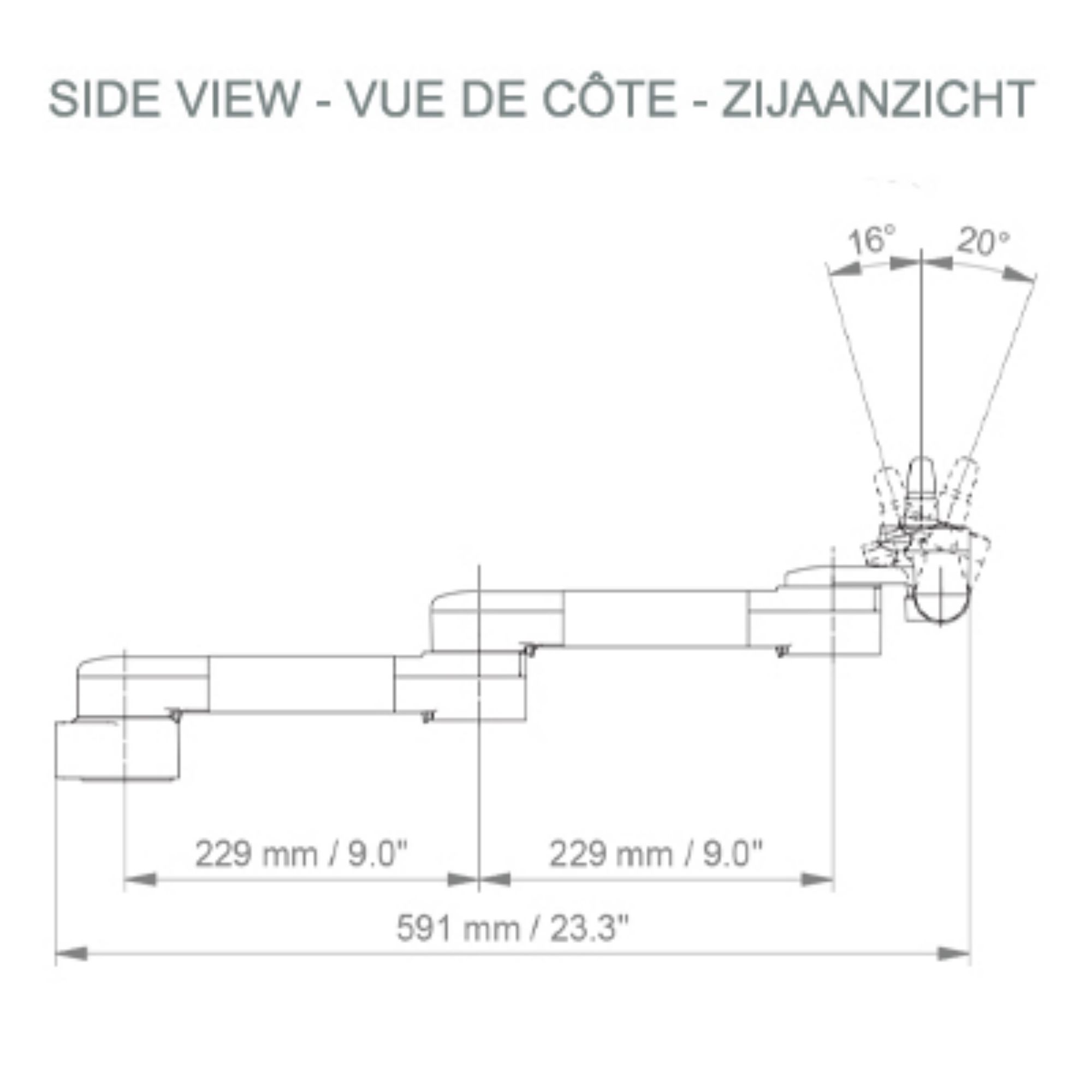

* Monitor tilt: 20° down and 12° up

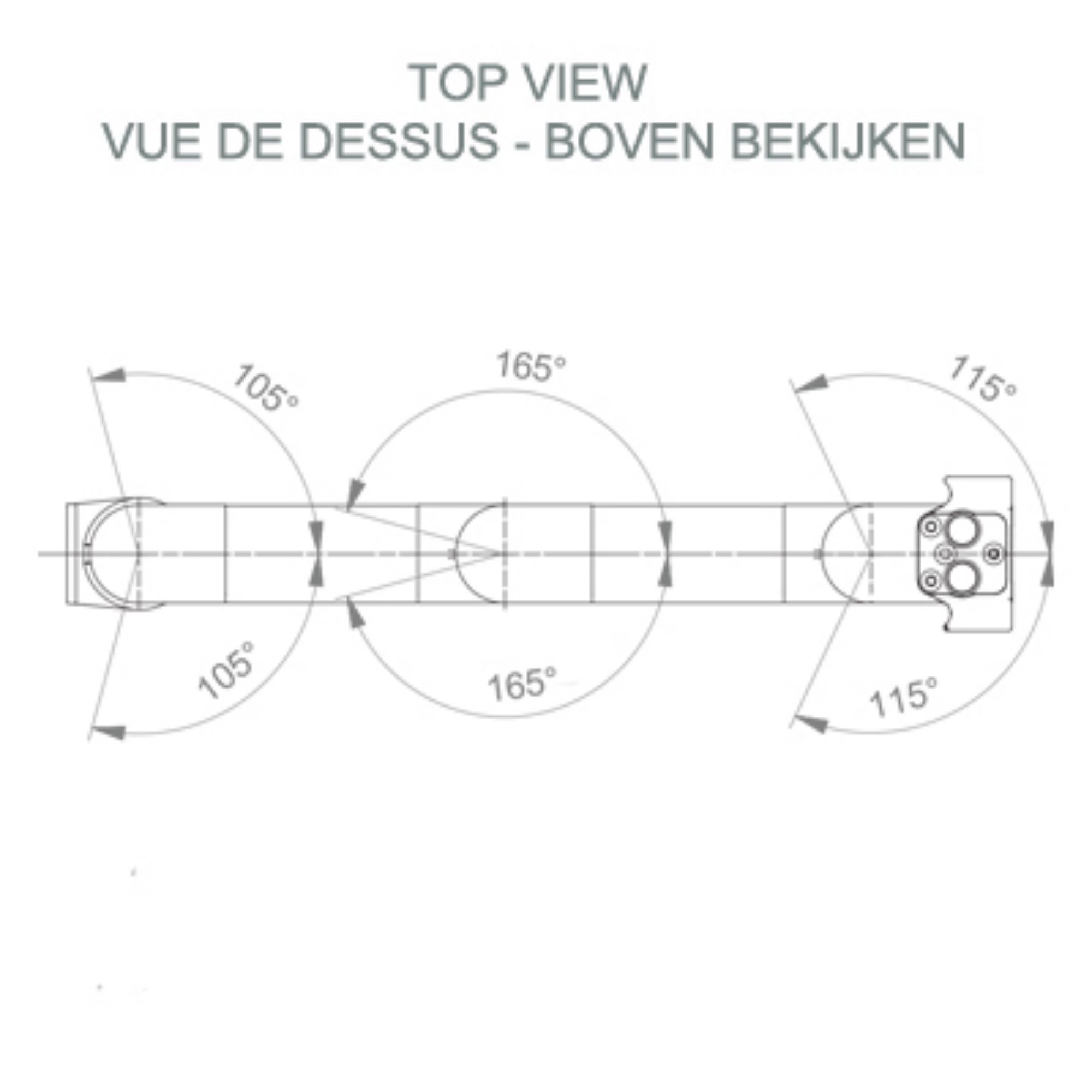

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 591 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
