Height-adjustable medical arm, length 450 mm,

for monitoring Philips Intellivue MP2/X2/X3 Séries,

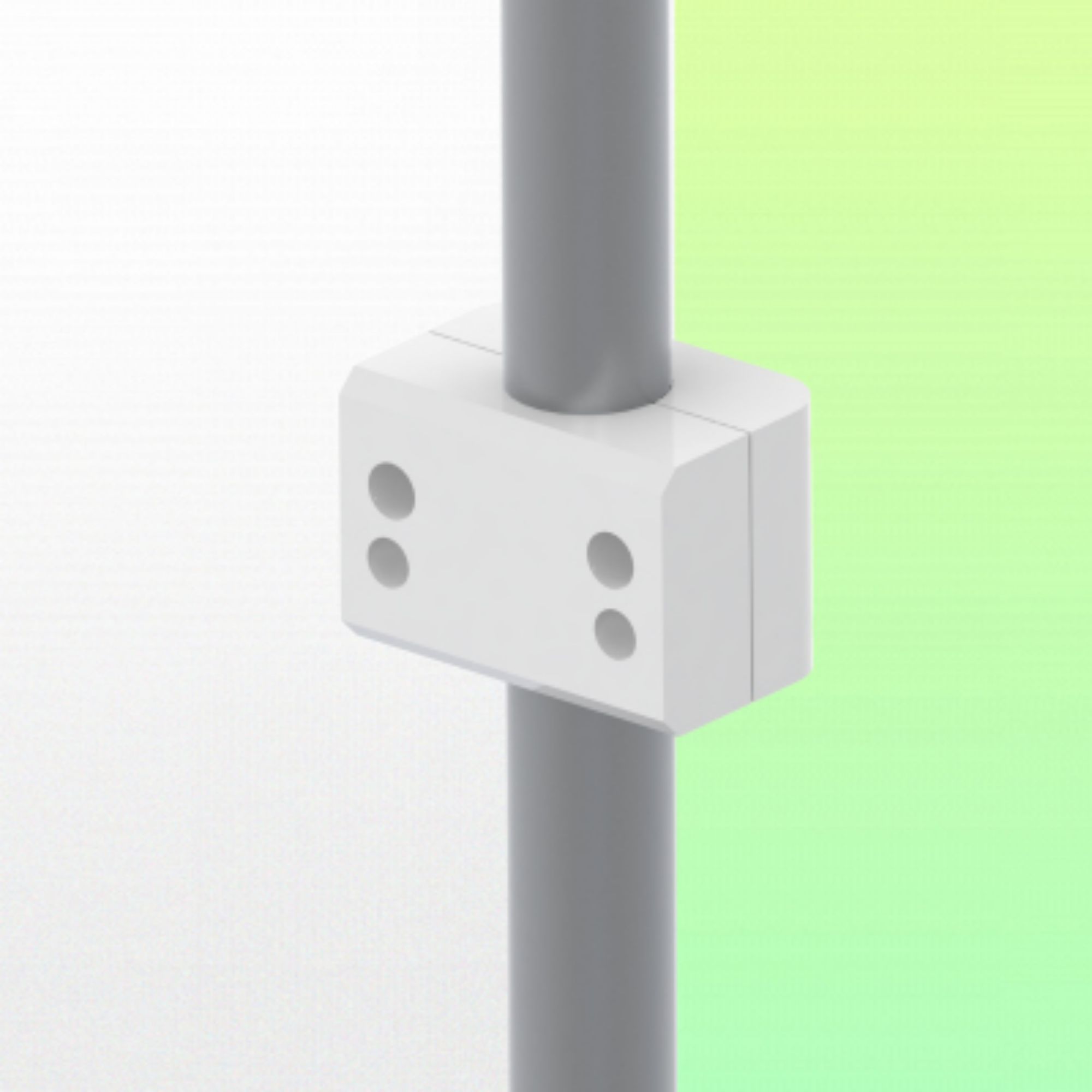

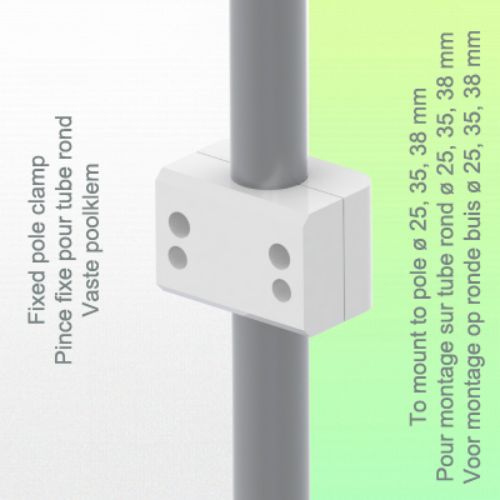

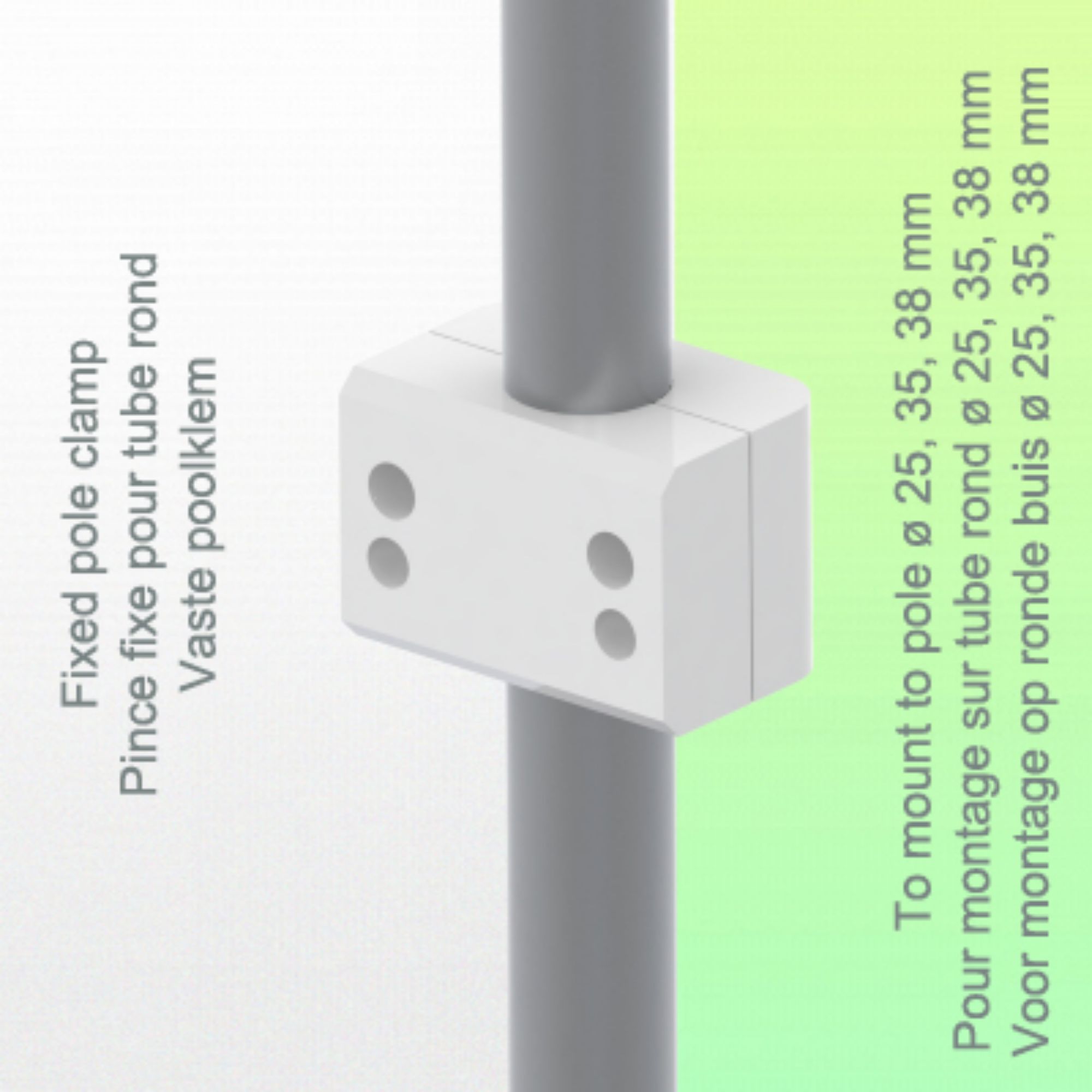

Mounting on fixed pole diameter 25, 35 and 38 mm.

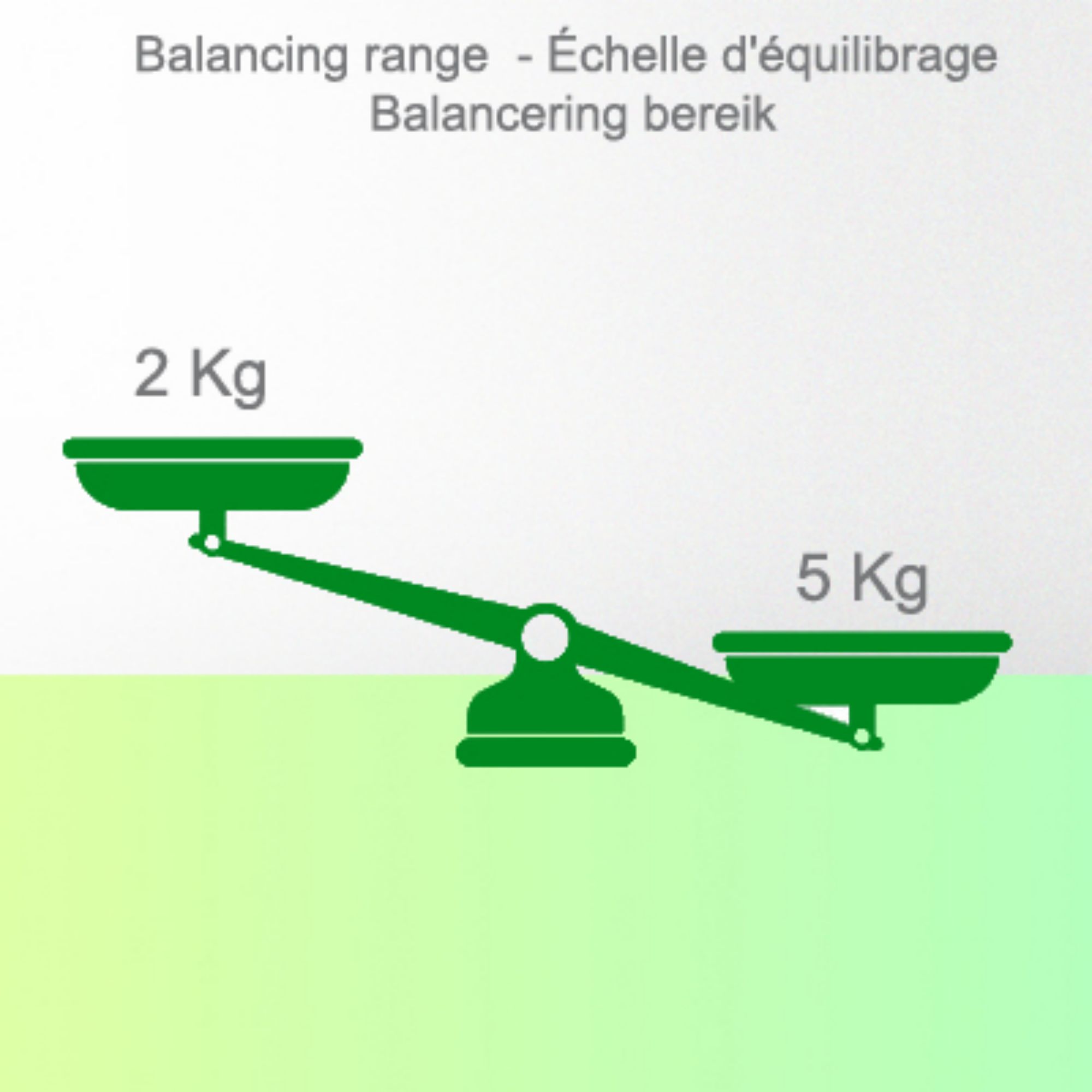

Supported weight balancing range from 2 to 5 Kg.

mounting without power cable hook

Product number: WM 260.156X - Height-adjustable medical arm, length 450 mm, for monitoring Philips Intellivue MP2/X2/X3 Séries,

Mounting on fixed pole diameter 25, 35 and 38 mm.

Supported weight balancing range from 2 to 5 Kg.

mounting without power cable hook

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

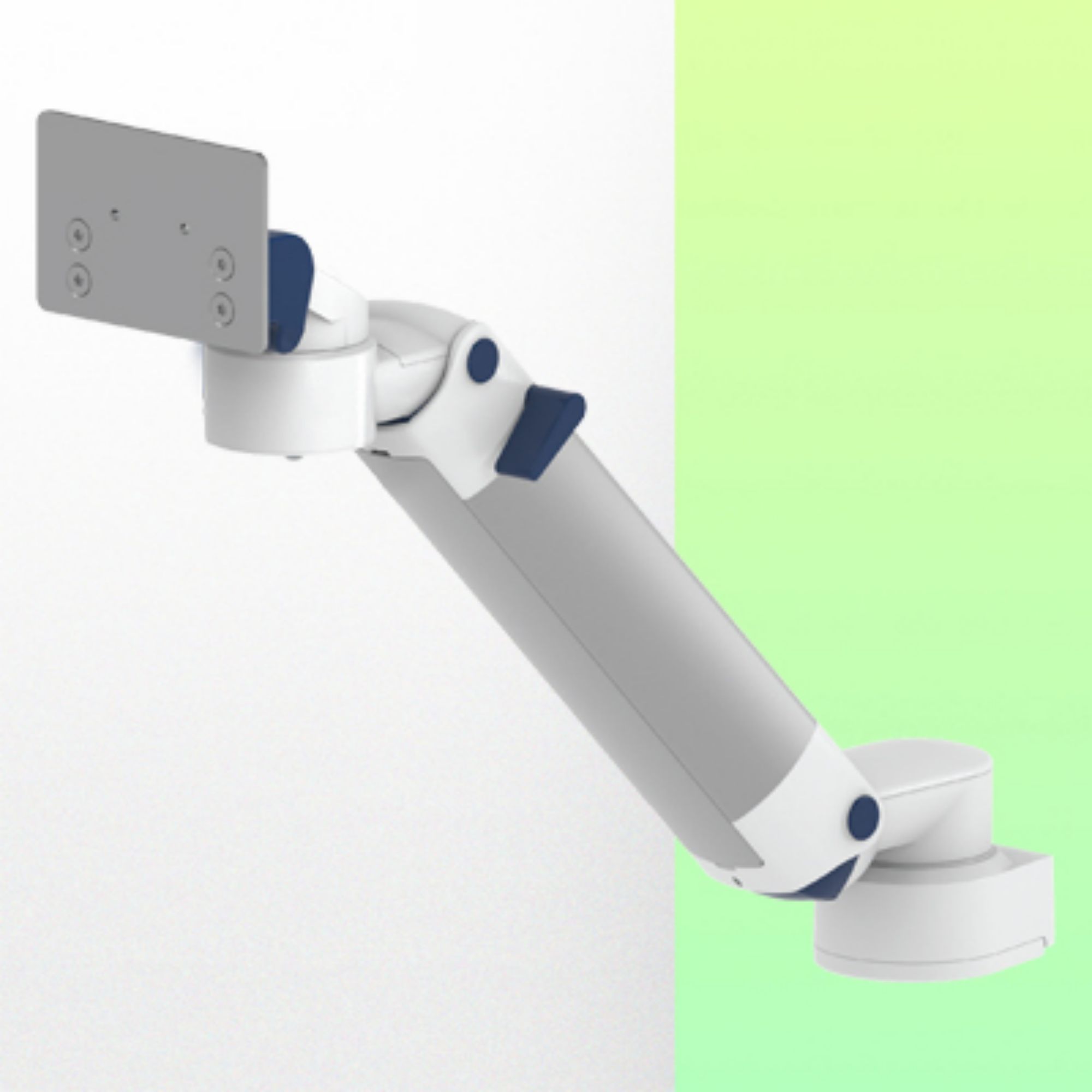

This 450 mm Horizontal Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Equipotential bonding

* This 450 mm Horizontal Arm with gas spring simply adjusts to the desired height and is fixed.

* It has a safety stop button for height adjustment, allowing the arm to remain in the chosen position.

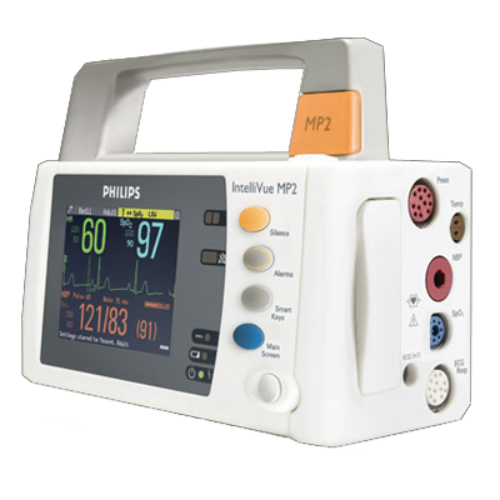

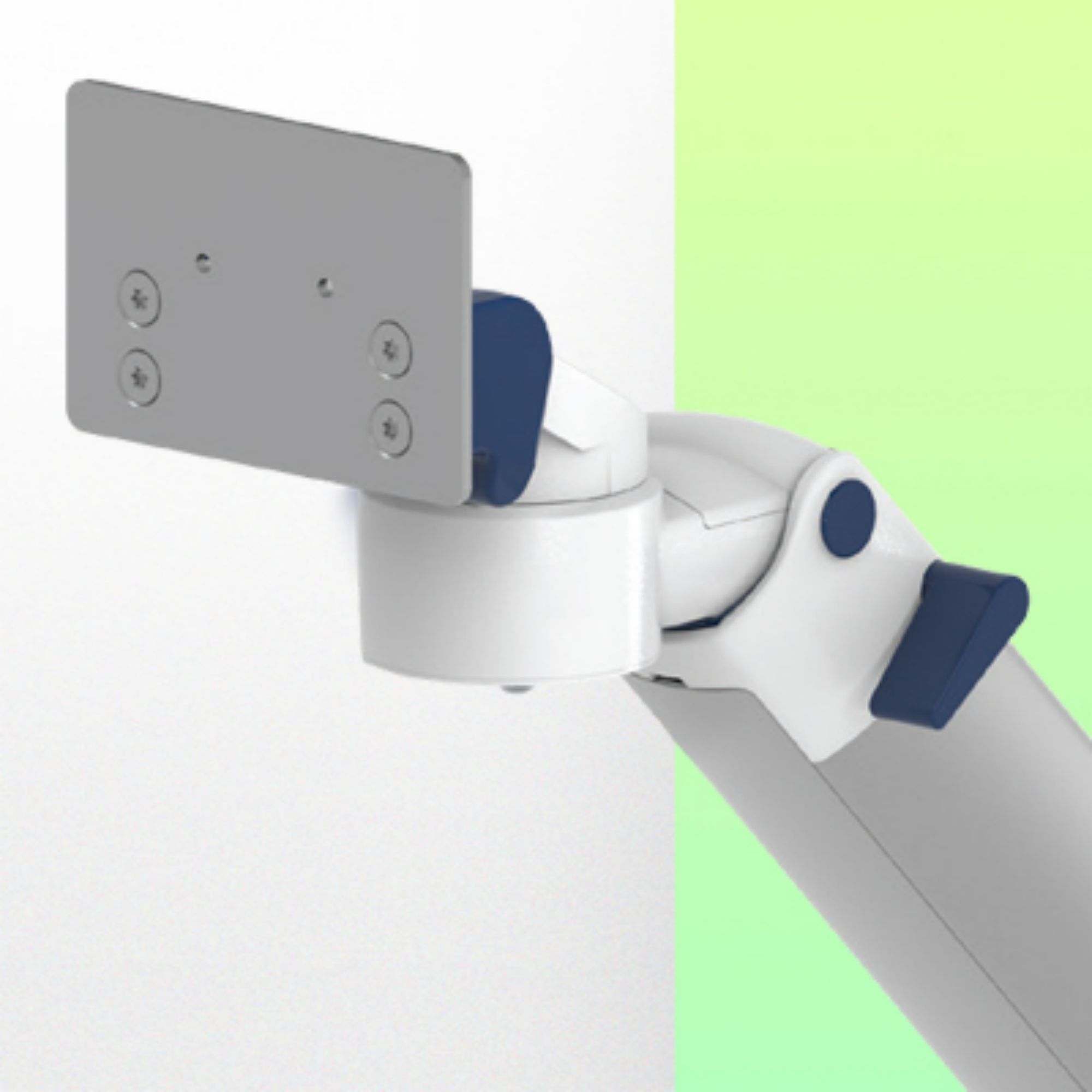

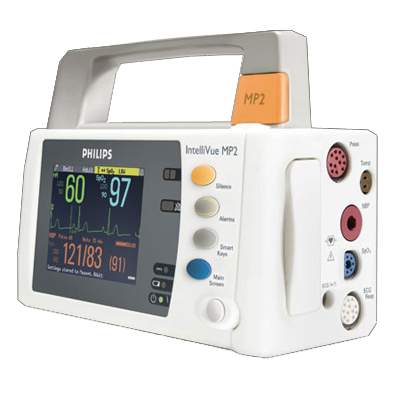

* The head of this arm is compatible with Philips Intellivue MP2/X2/X3 Series monitors.

* Suitable for monitors weighing up to 2-5 Kg.

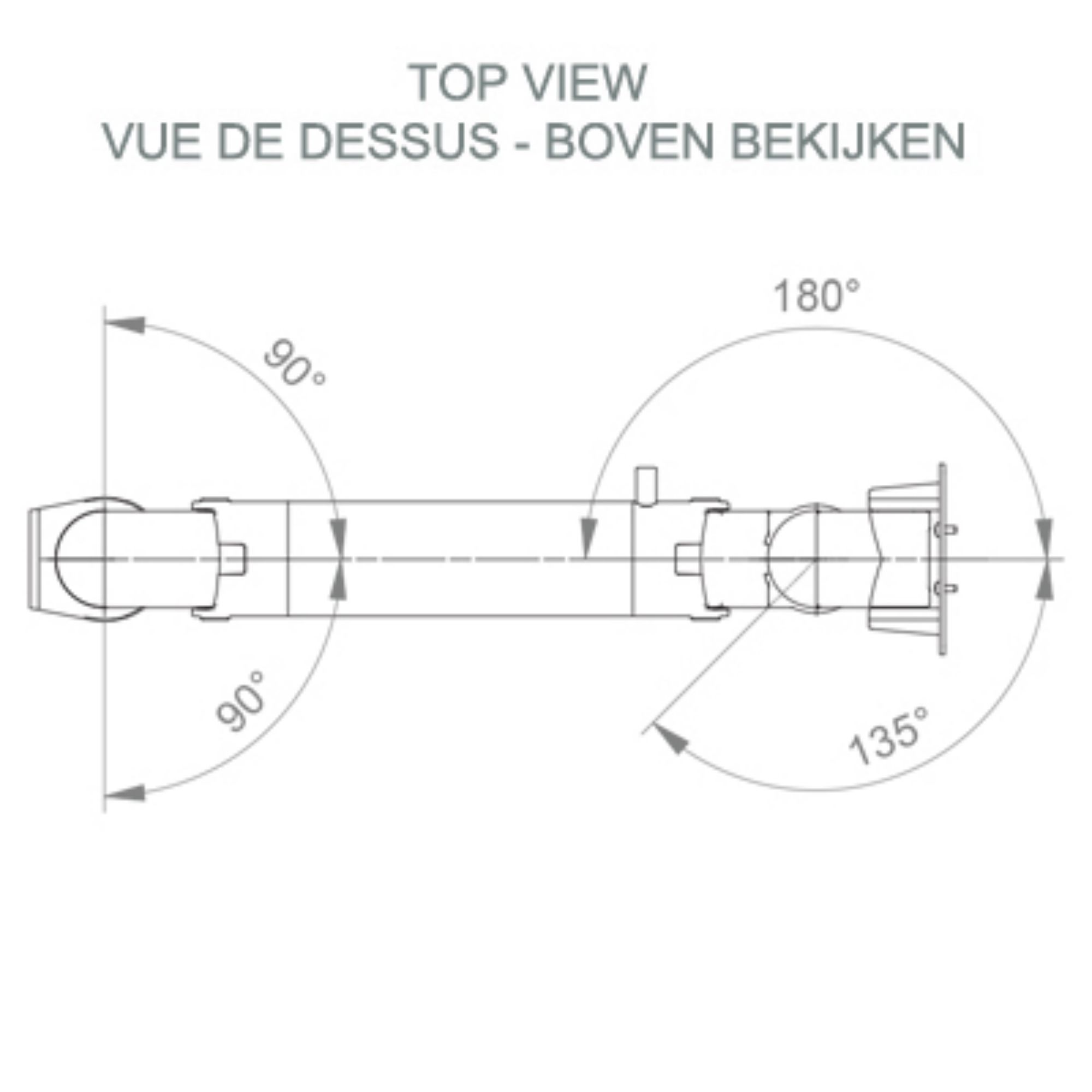

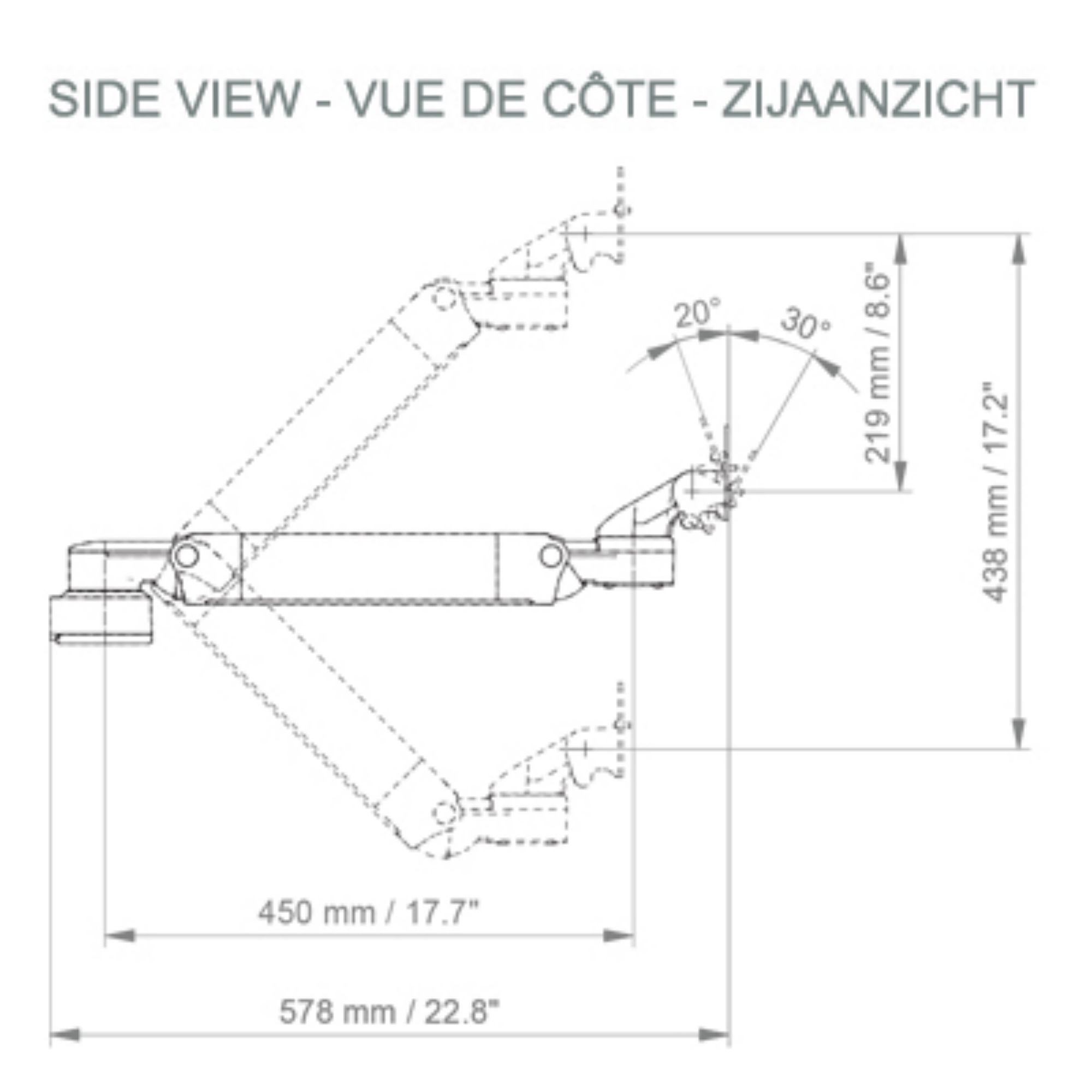

* Monitor tilt: 30° down and 20° up

* Monitor rotation: 135° right, 18° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length: 578 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
