Extended Height Adjustable Medical Arm 808 mm,

for monitoring Philips Intellivue MP2/X2/X3 Séries,

wall-mounted on a vertical sliding rail.

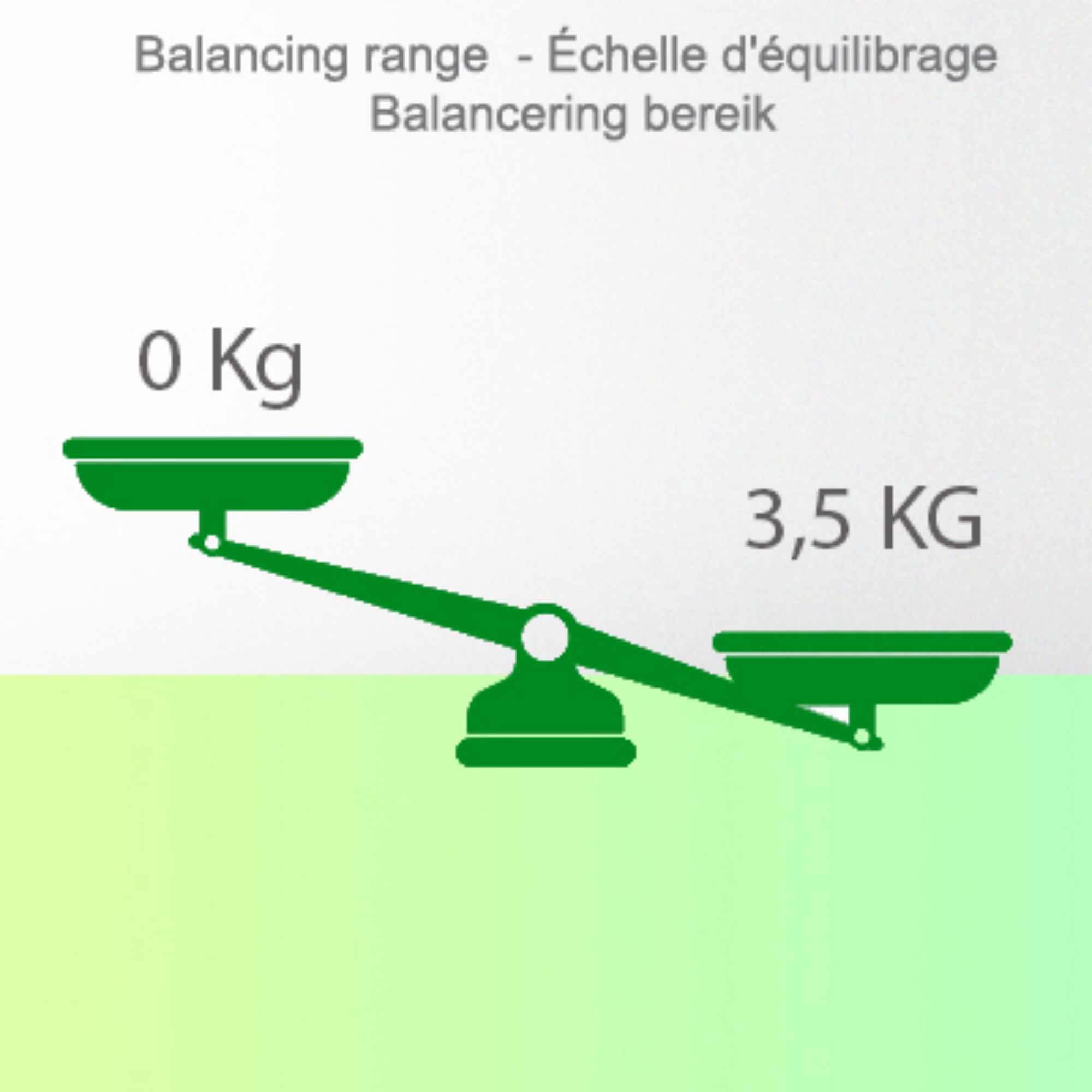

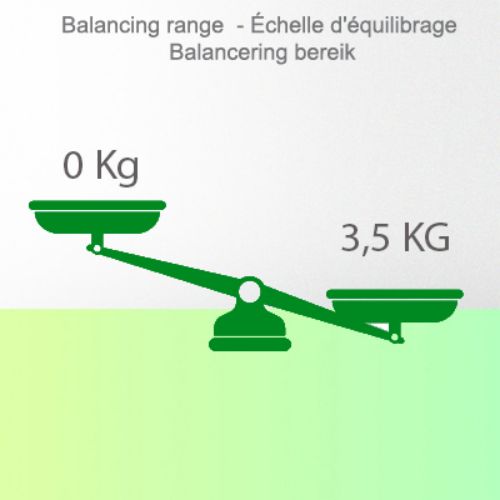

Supported weight balancing range from 0 to 3,5 Kg.

mounting without power cable hook

Product number: WM 260.175X - Extended Height Adjustable Medical Arm 808 mm, for monitoring Philips Intellivue MP2/X2/X3 Séries,

wall-mounted on a vertical sliding rail.

Supported weight balancing range from 0 to 3,5 Kg.

mounting without power cable hook

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

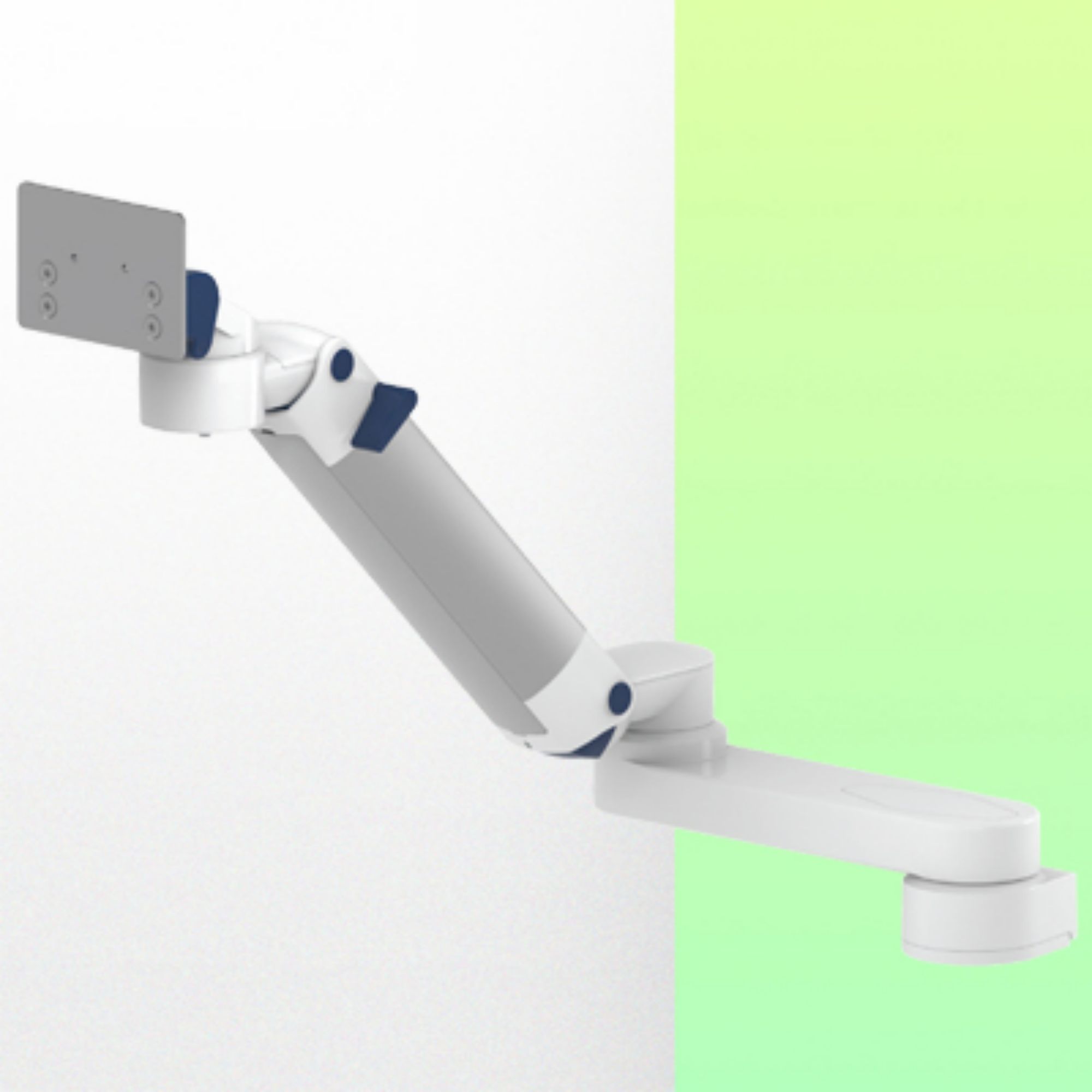

This Horizontal Double Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable passage

* Equipotential bonding

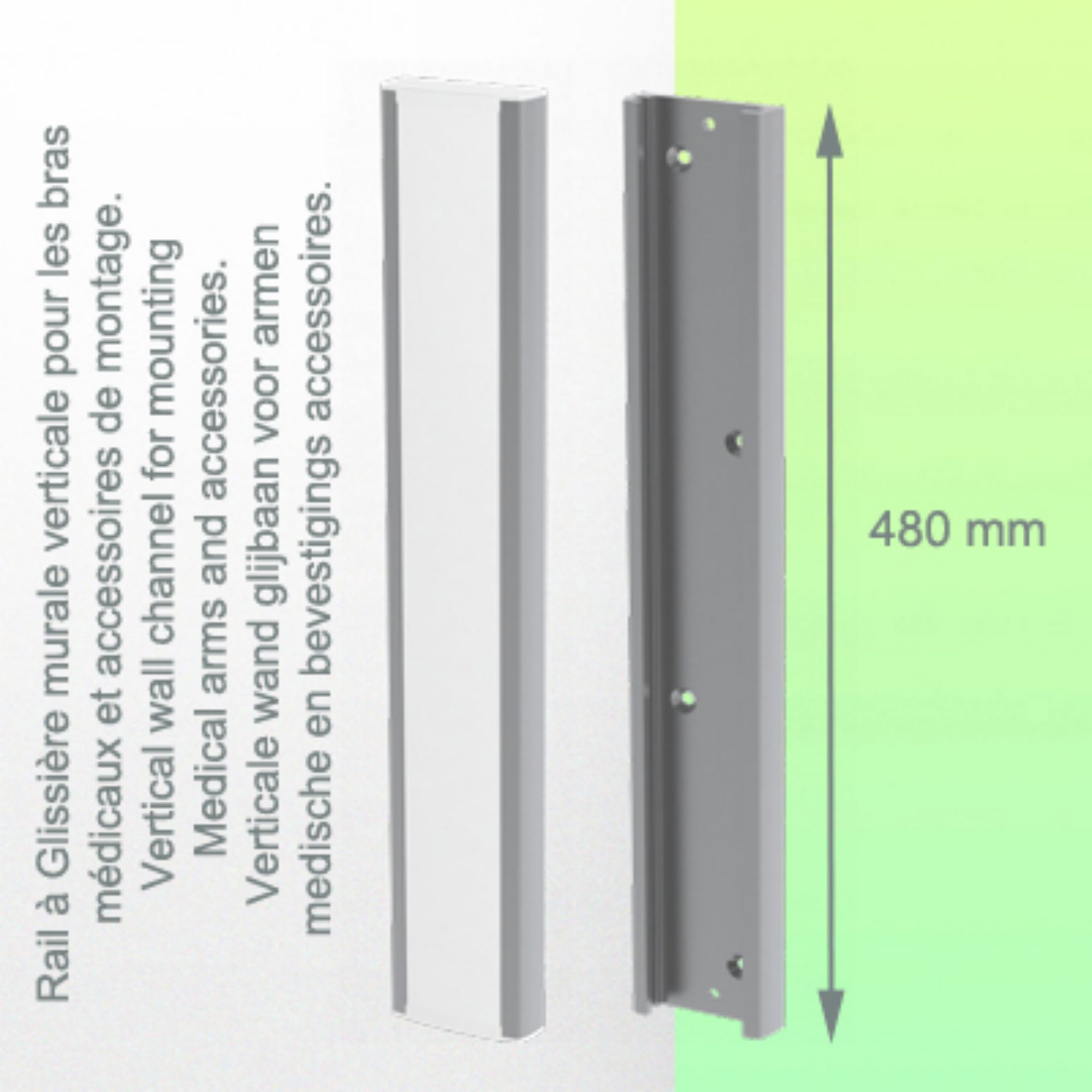

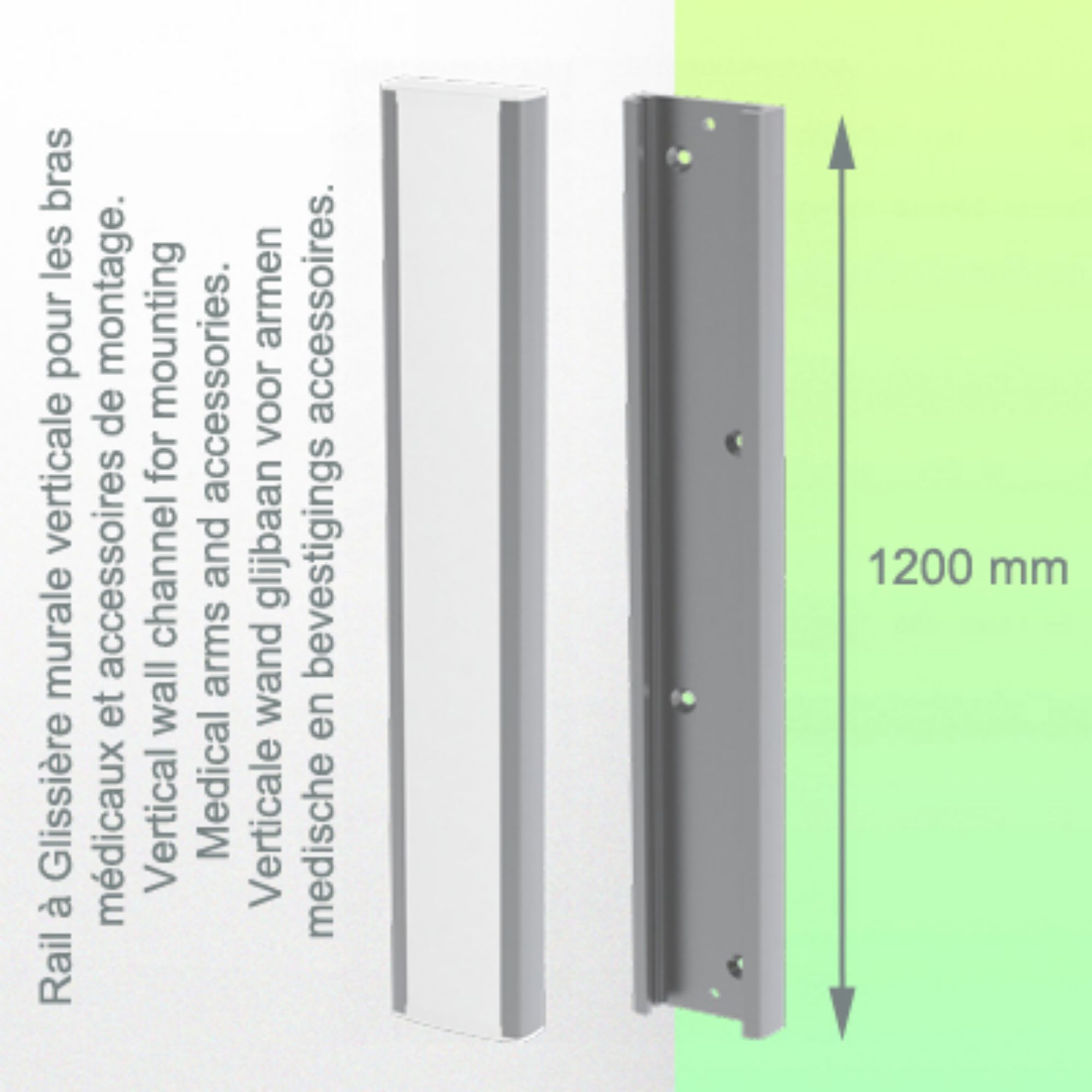

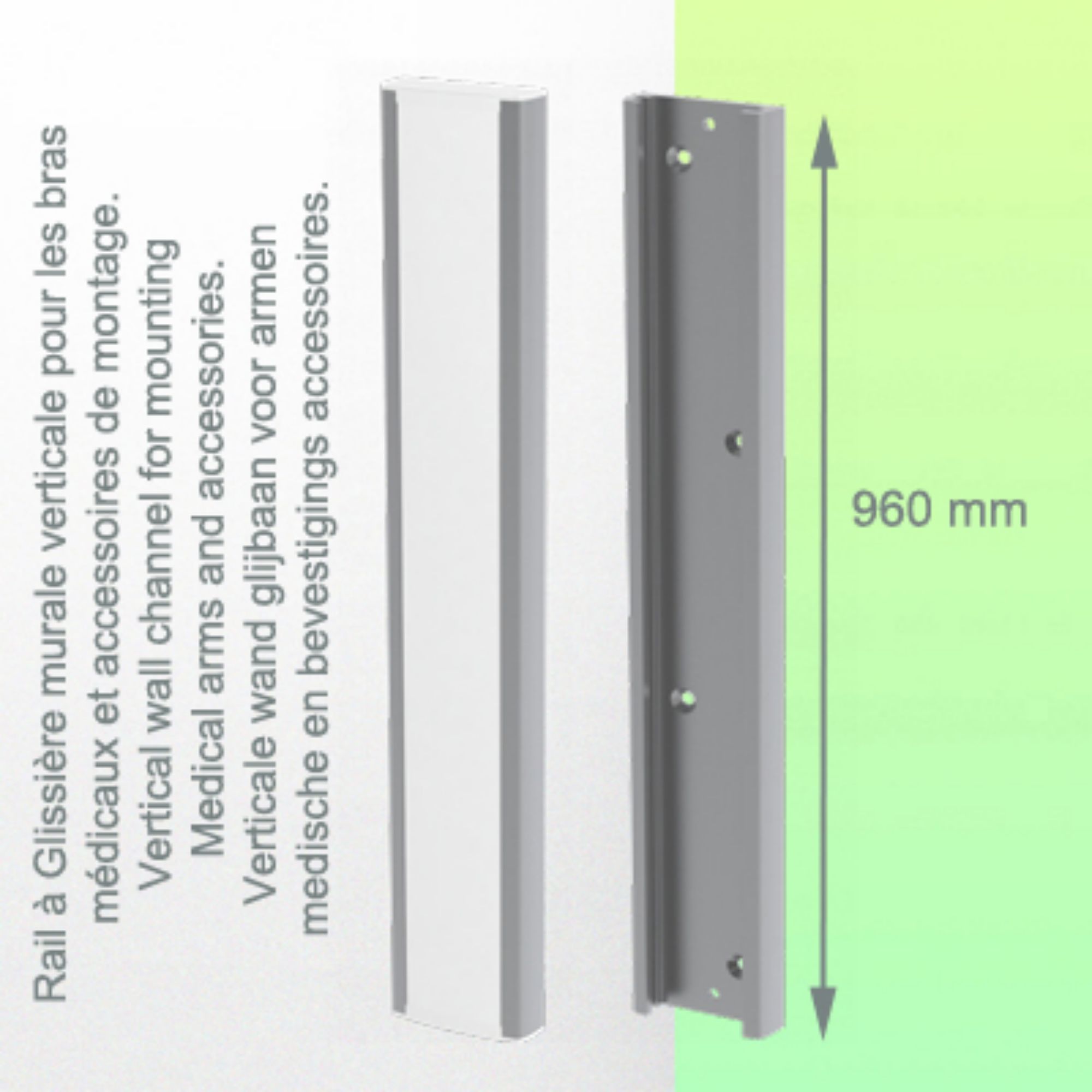

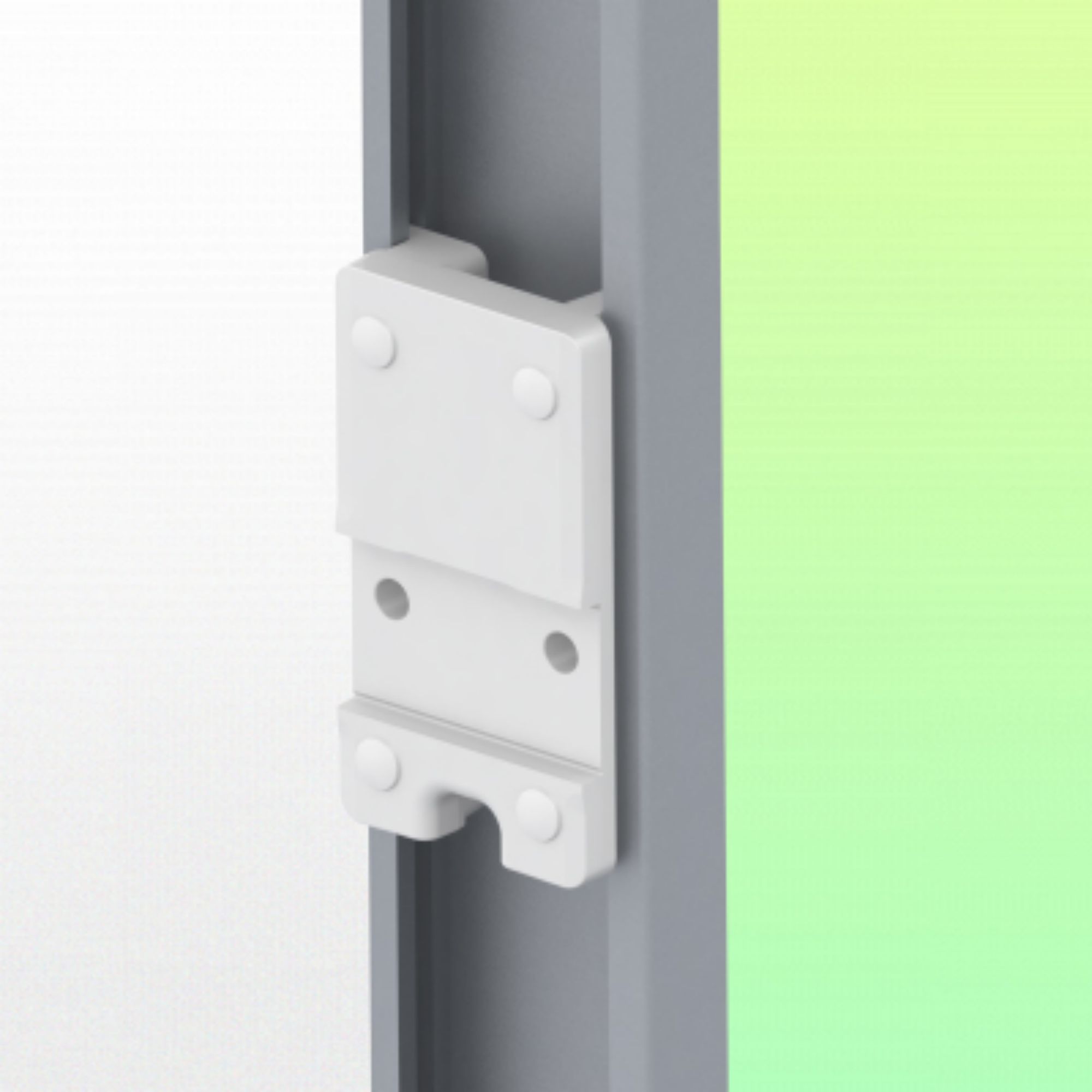

* Fixing on optional Vertical Wall Slide Rail, of which several lengths are available (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables also run through the wall rail.

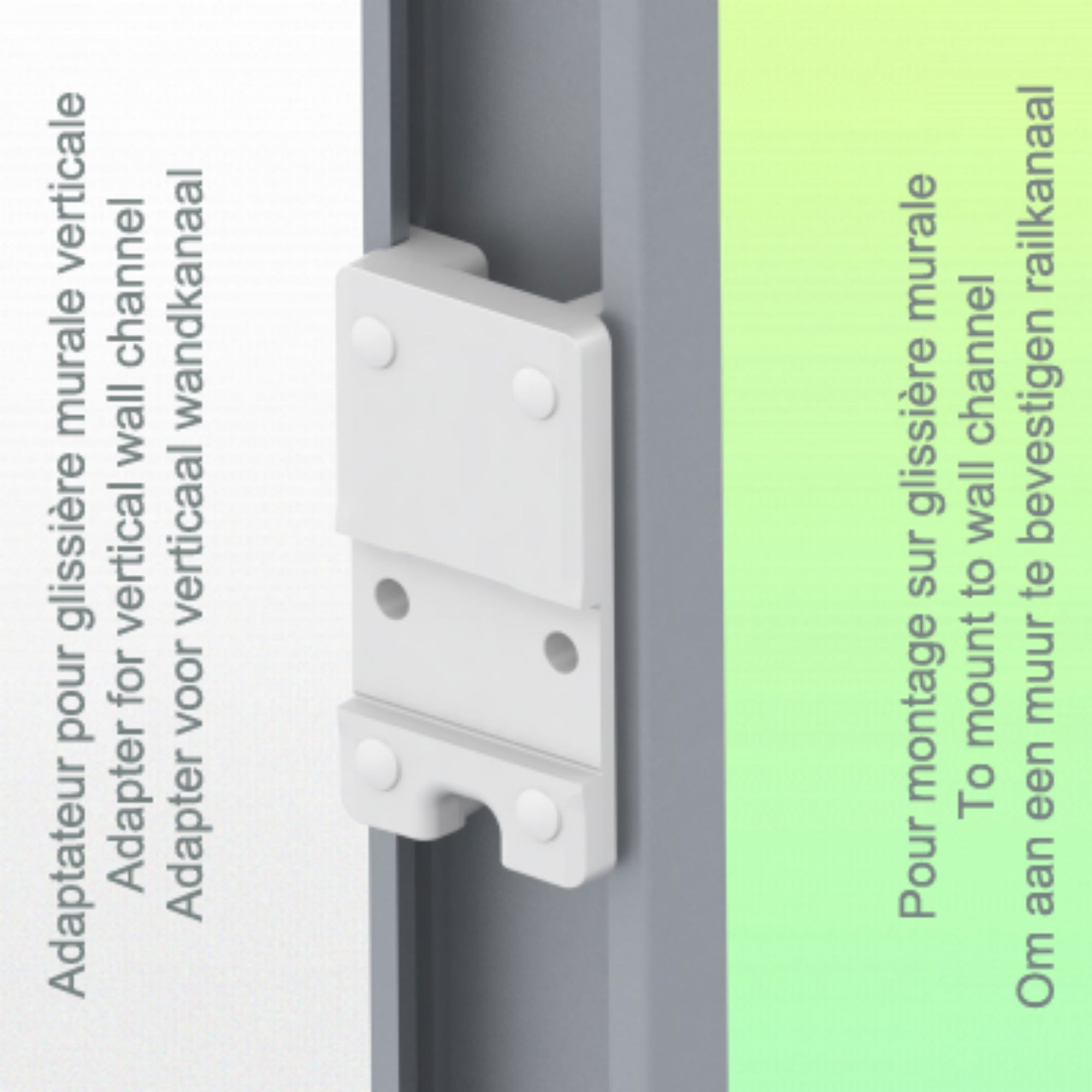

* This gas-operated Double Arm simply slides into the wall rail, then adjusts to the required height and locks into place.

* It has a safety stop button for height adjustment, which allows the arm to remain in the chosen position.

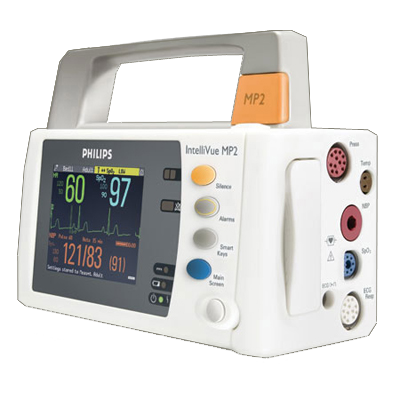

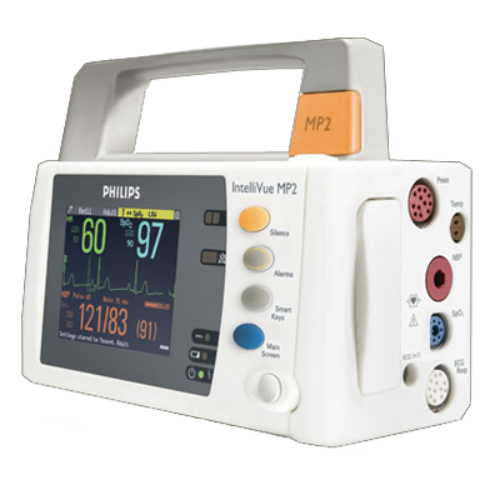

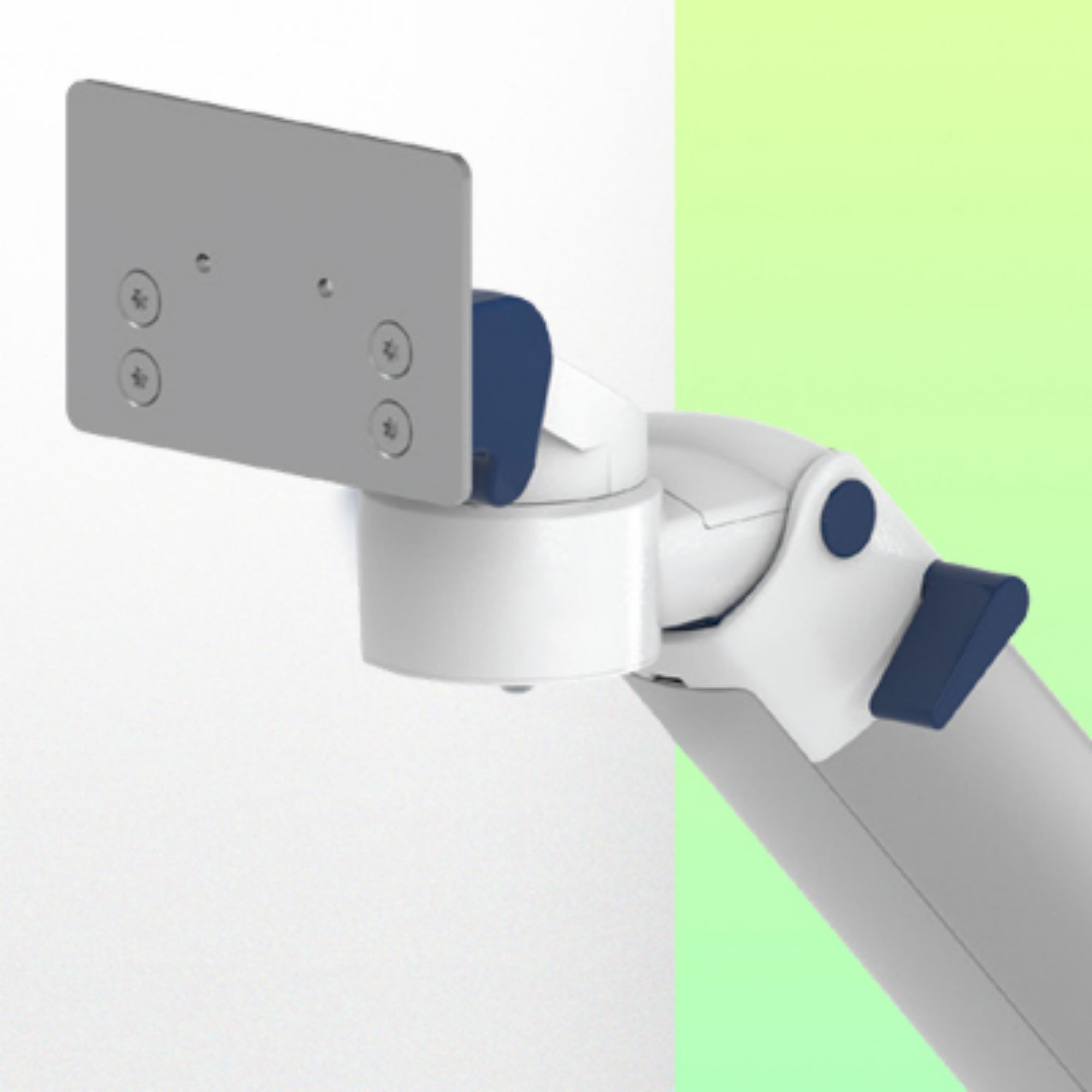

* The head of this arm is fitted for Philips Intellivue MP2/X2/X3 Series

* Compatible with monitors weighing no more than 0-3,5 Kg

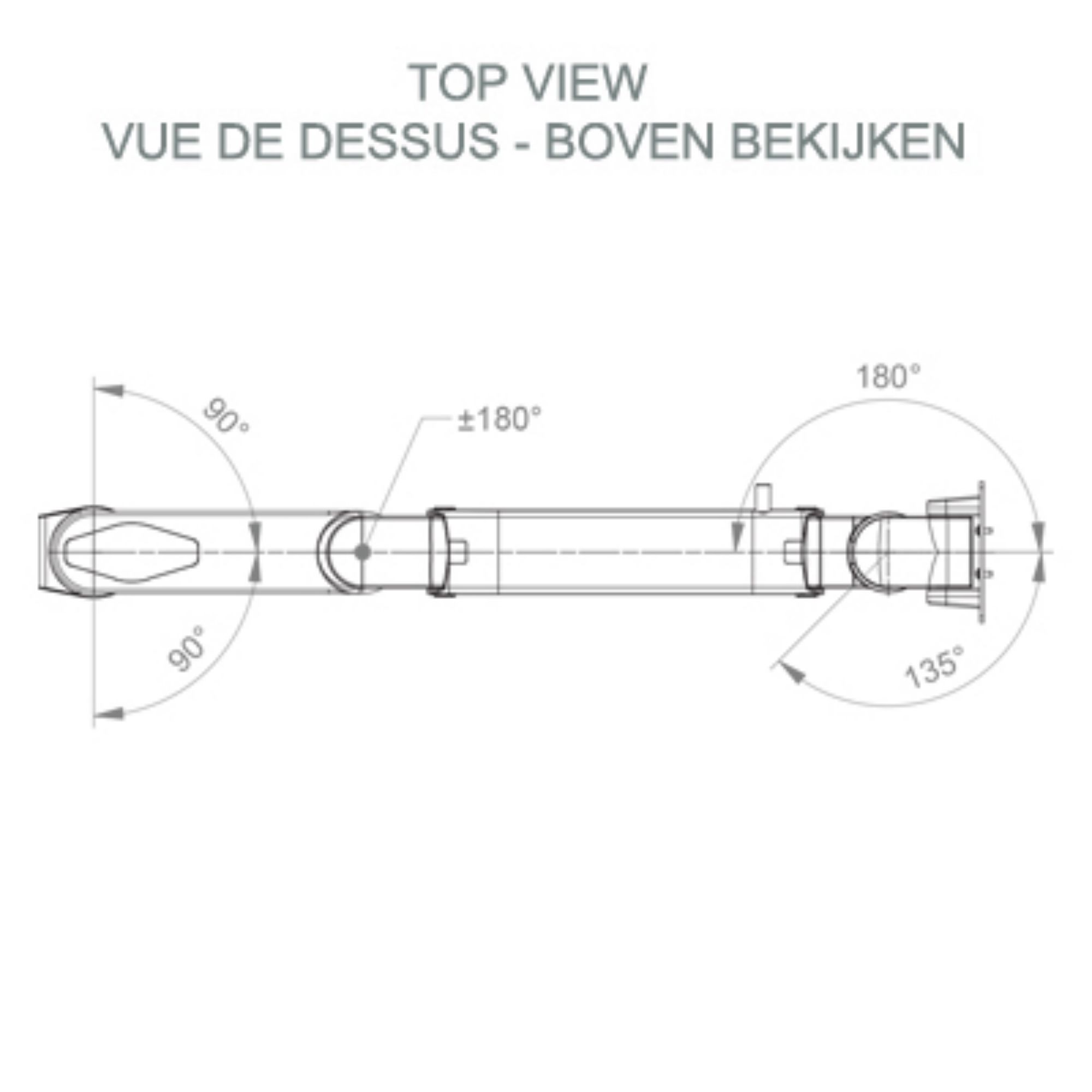

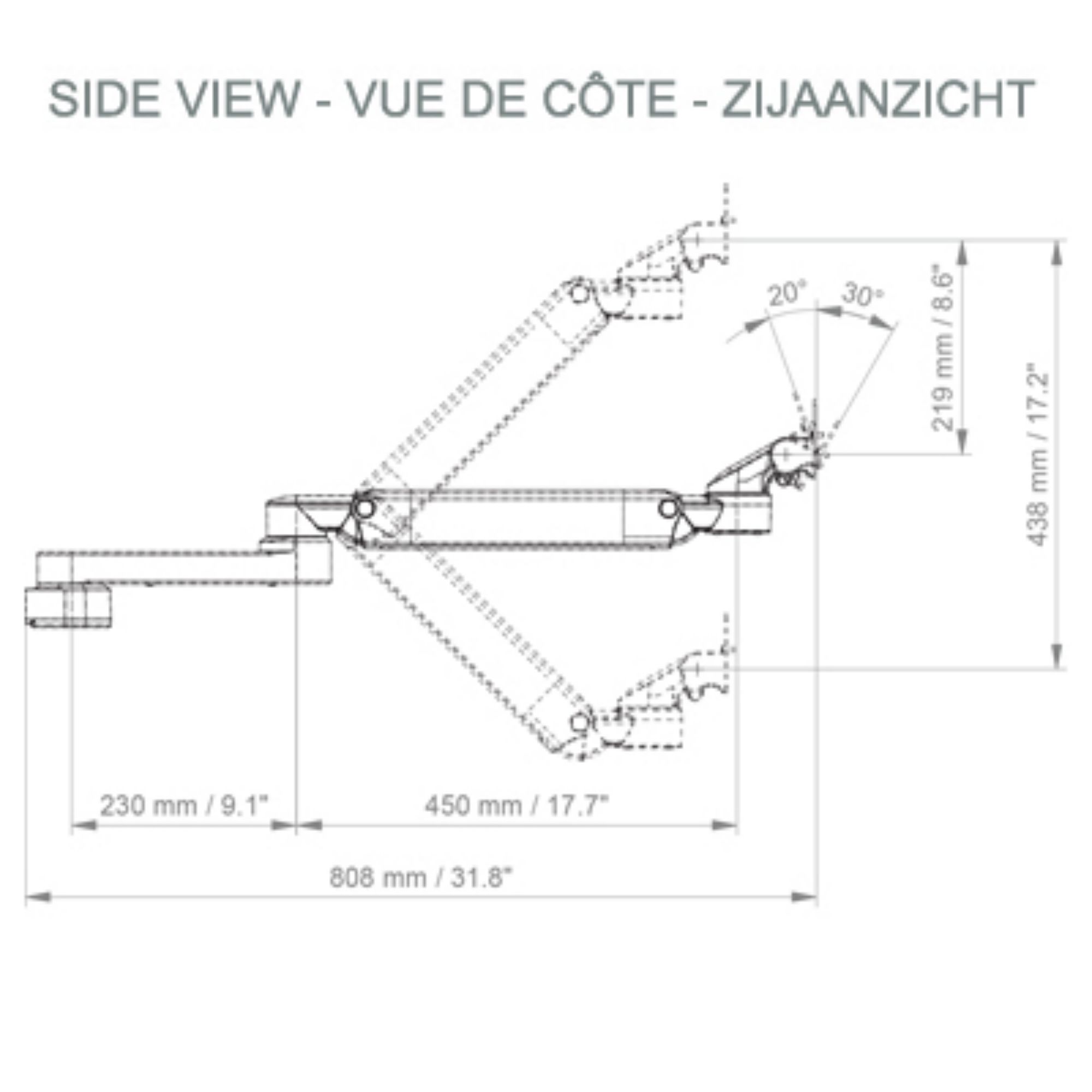

* Monitor tilt: 30° down and 20° up

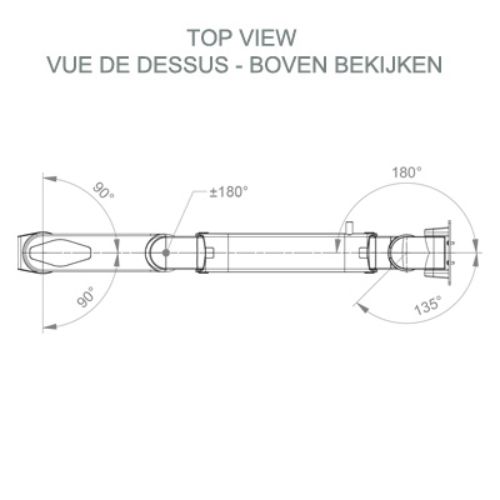

* Screen rotation: 135° right, 180° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length 808 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
