300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

floor or ceiling column mounting.

mounting without power cable hook

Product number: WM 280.103X - 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

floor or ceiling column mounting.

mounting without power cable hook

Product sheet PDF

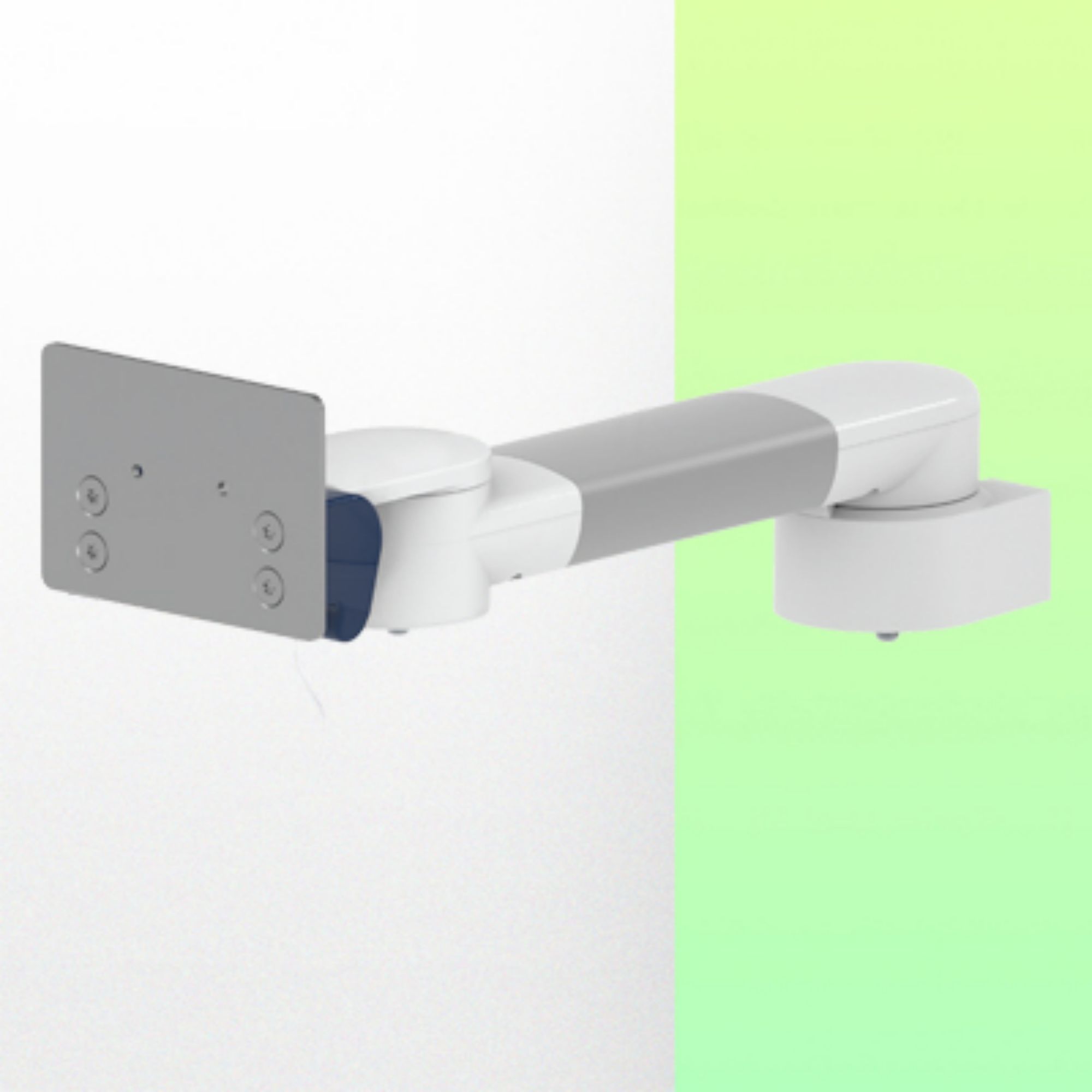

This 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

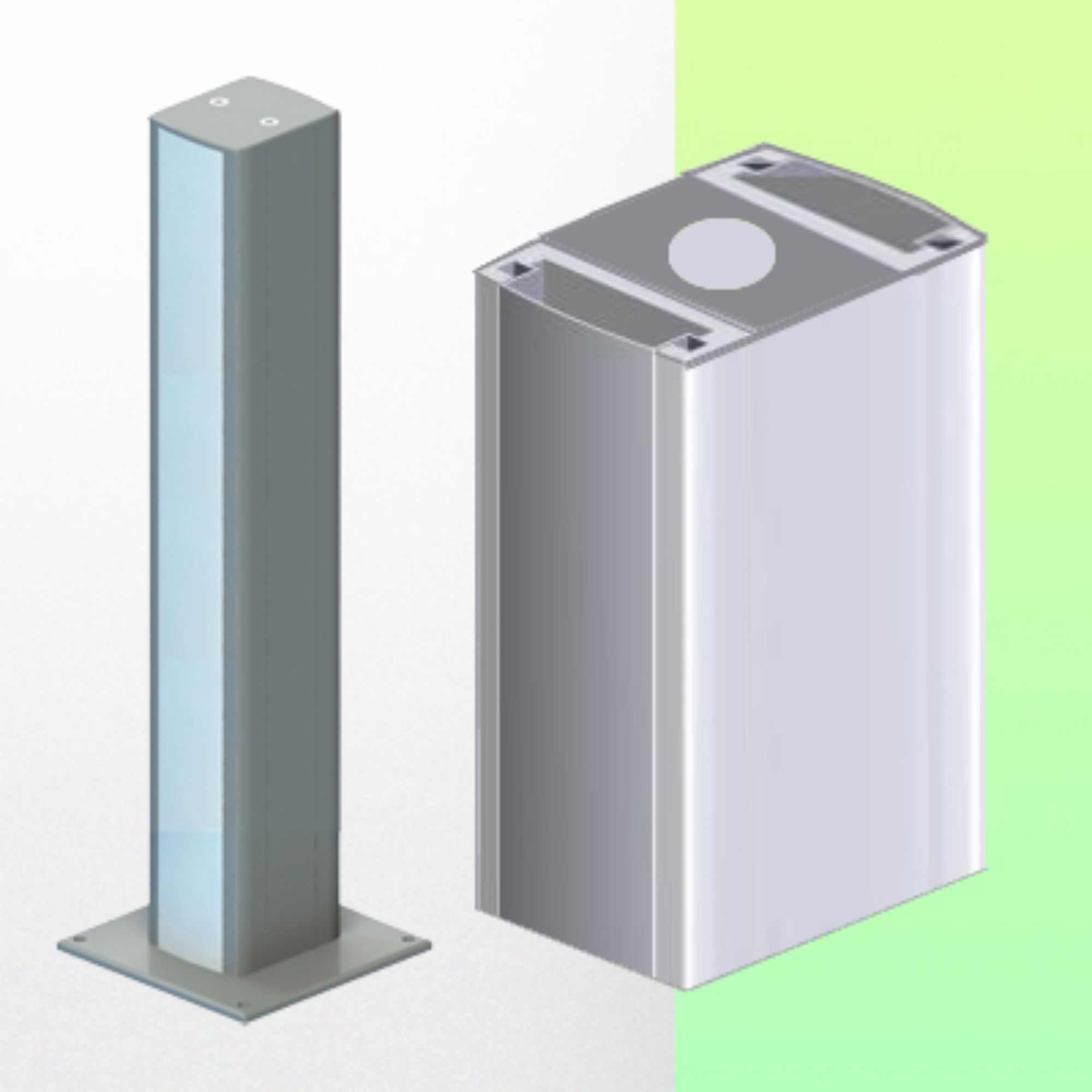

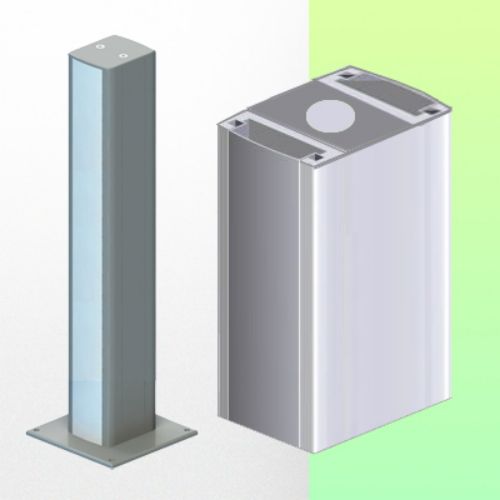

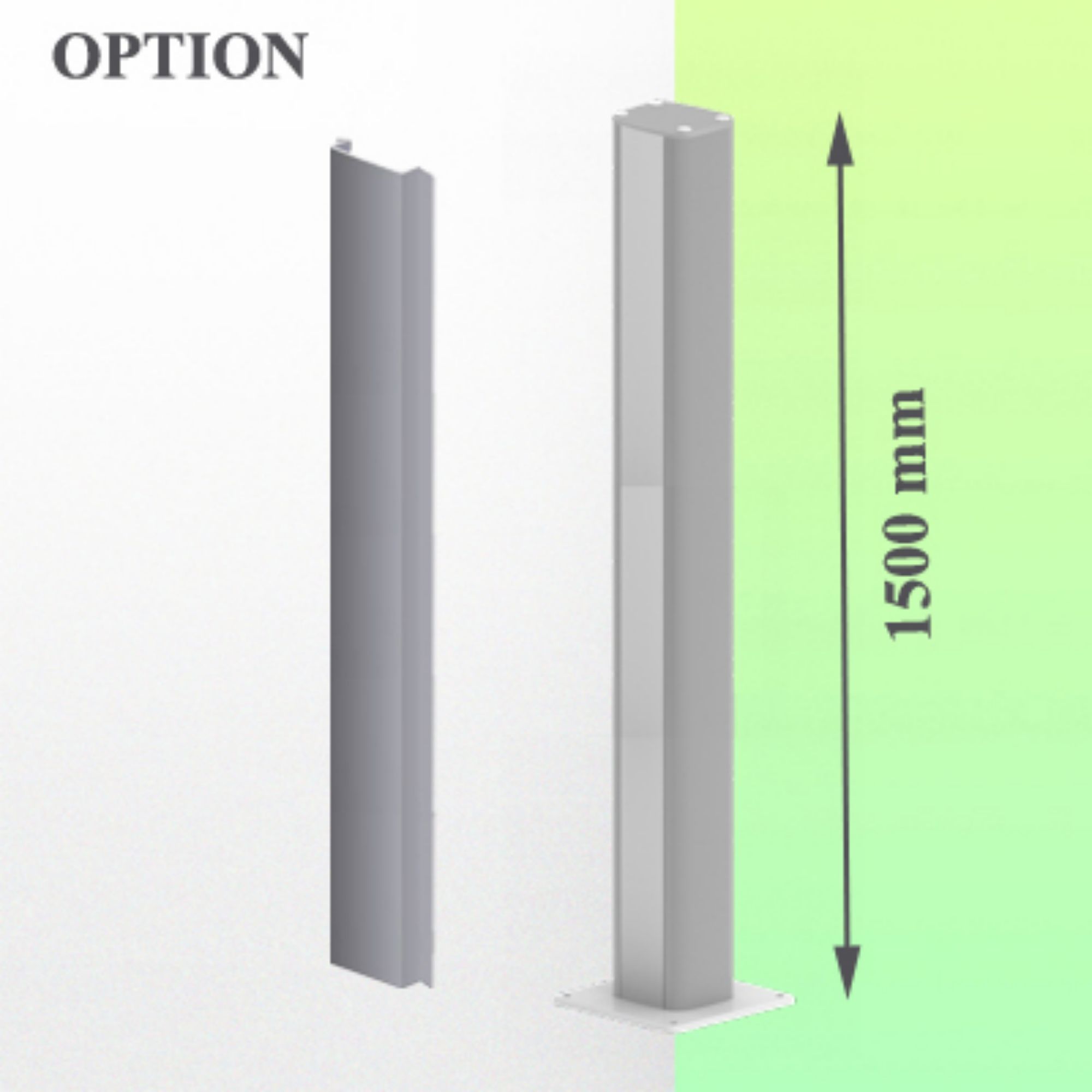

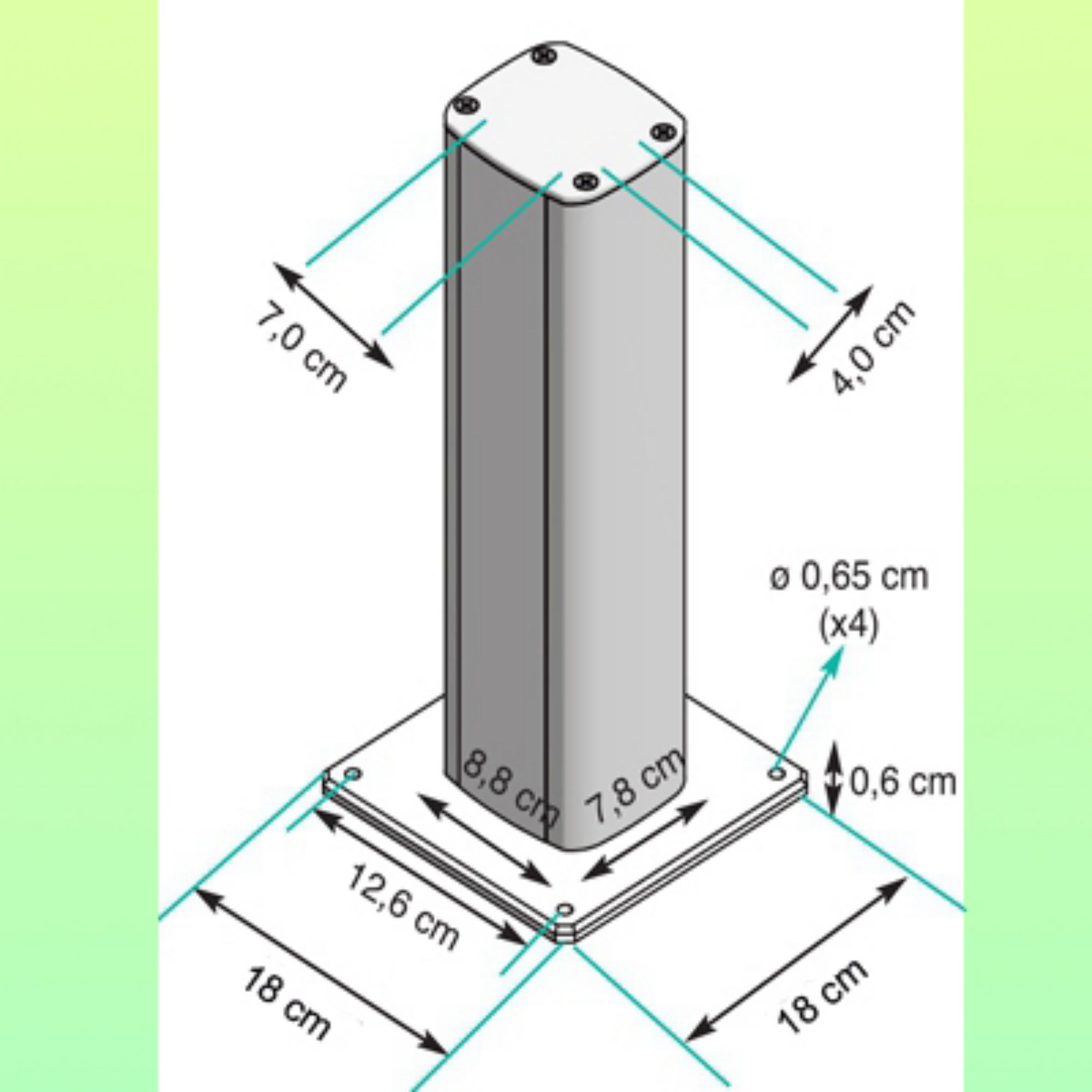

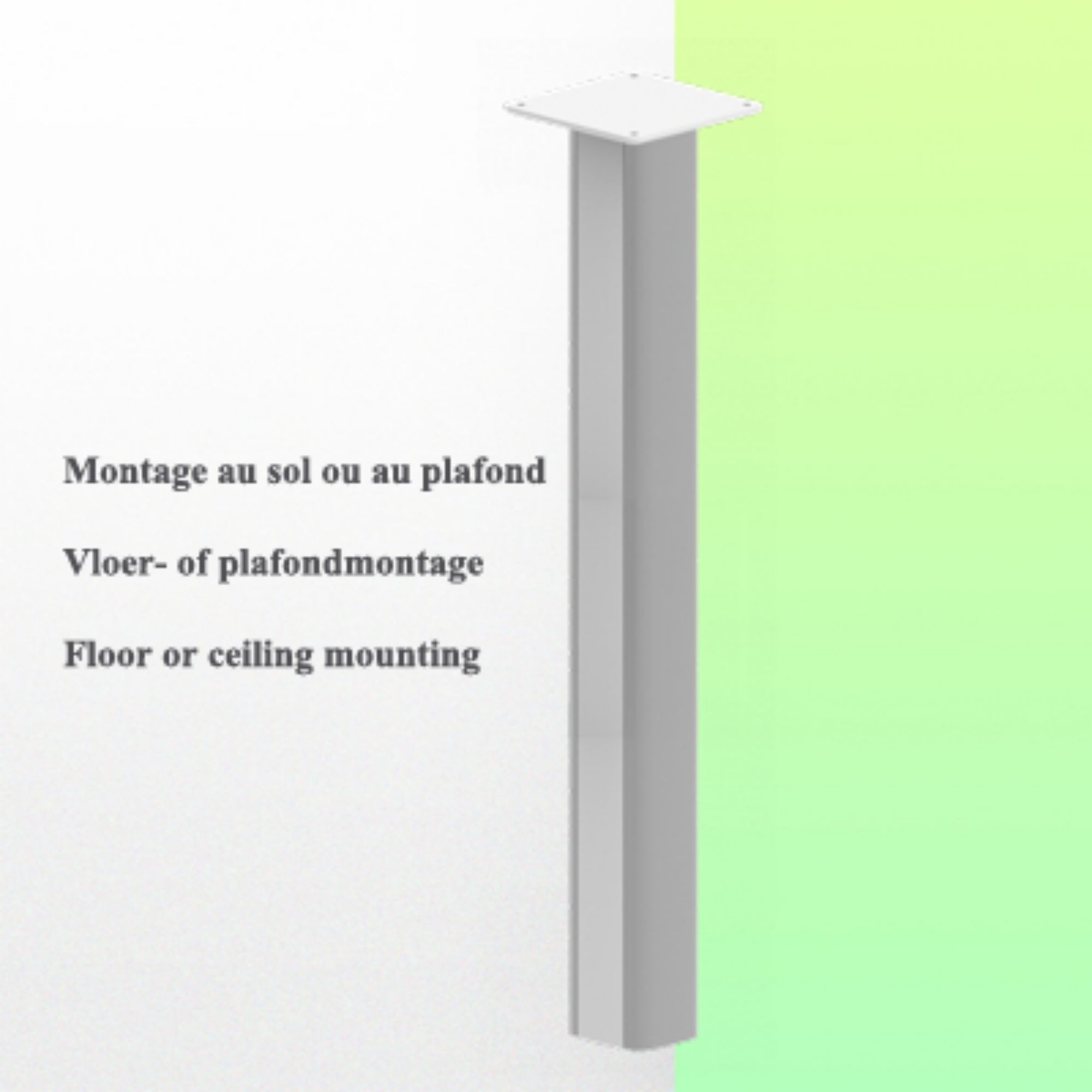

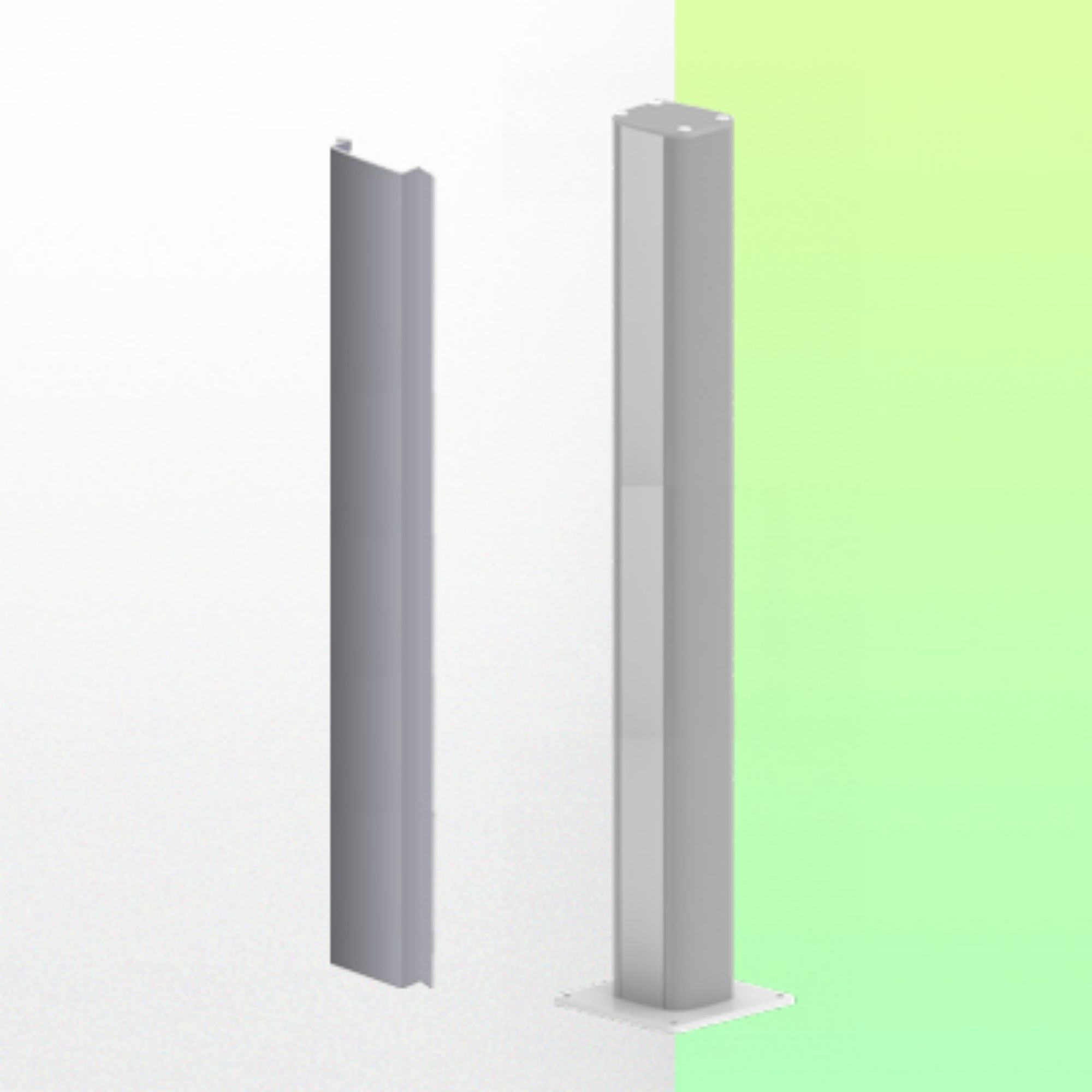

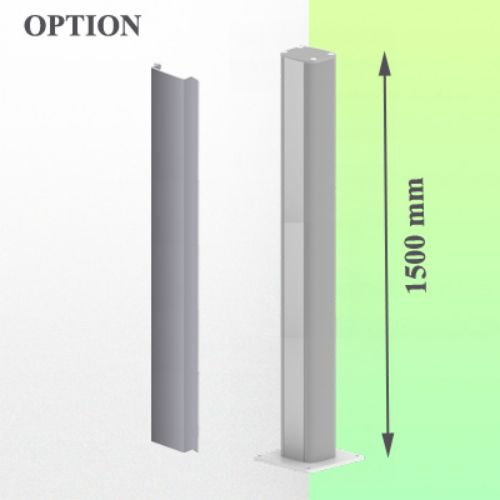

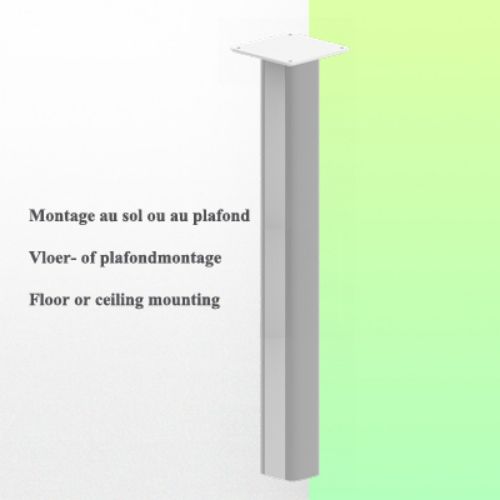

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column (s

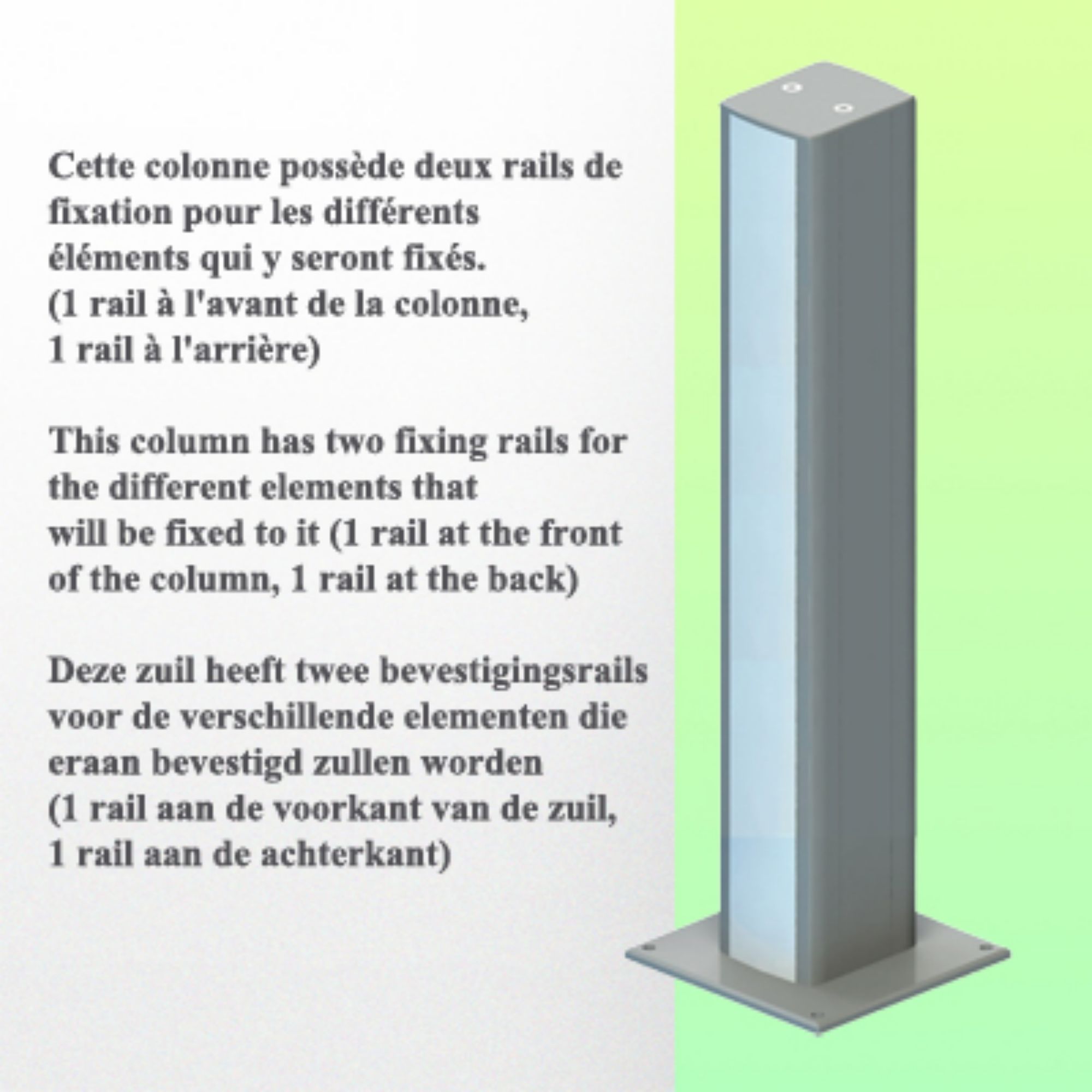

* This 300 mm Horizontal Arm simply slides into the column rail and adjusts to the required height. It has no height adjustment

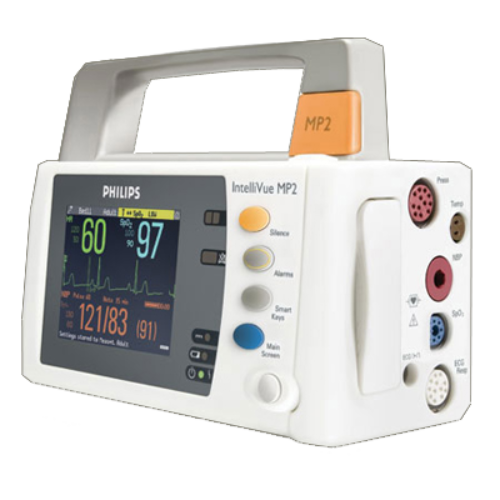

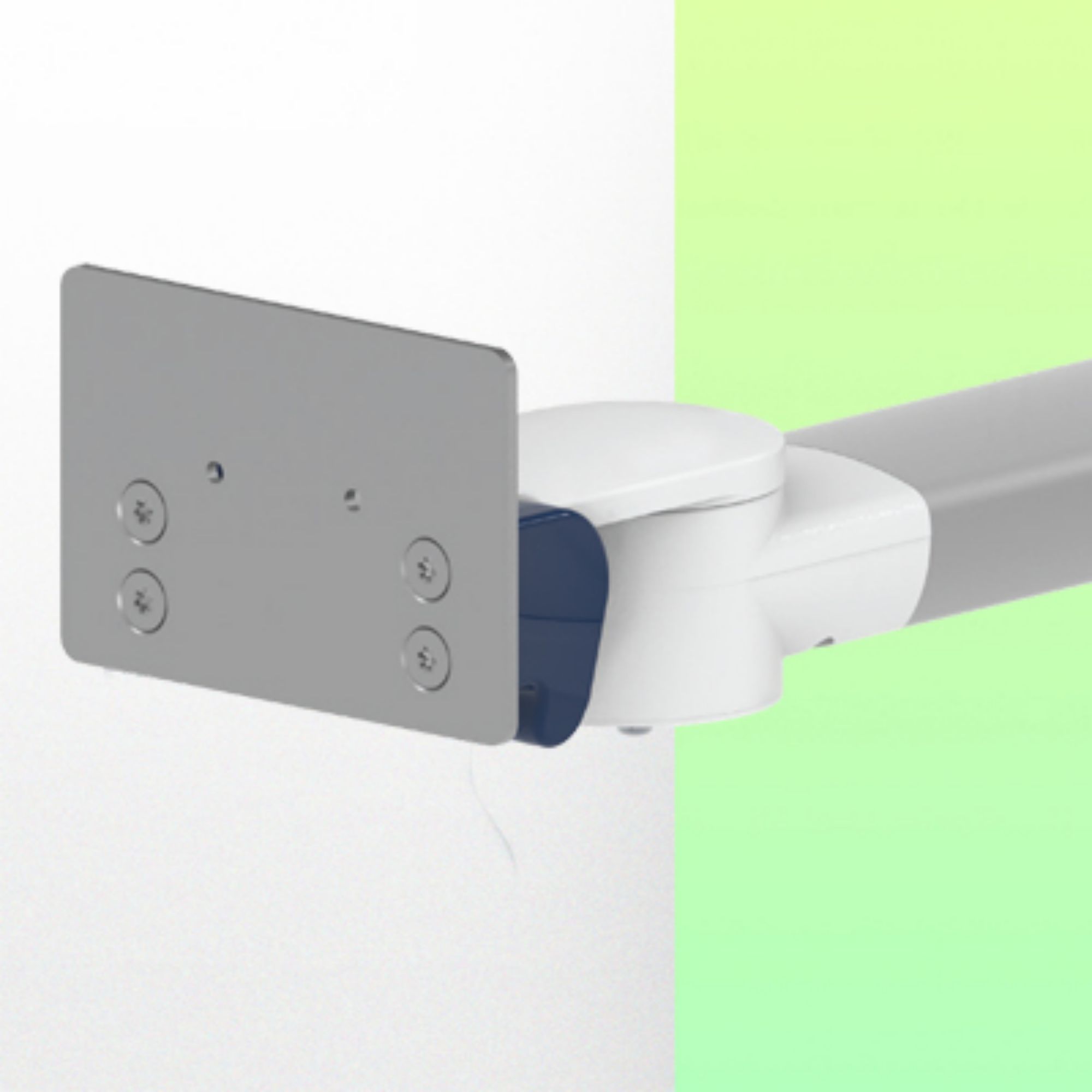

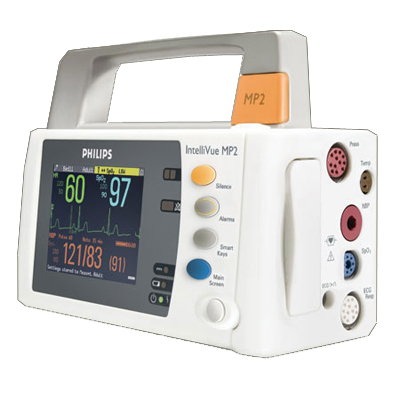

* The head of this arm complies with the mounting standard for Philips Intellivue MP2/X2/X3 Series monitors weighing up to 18 Kg.

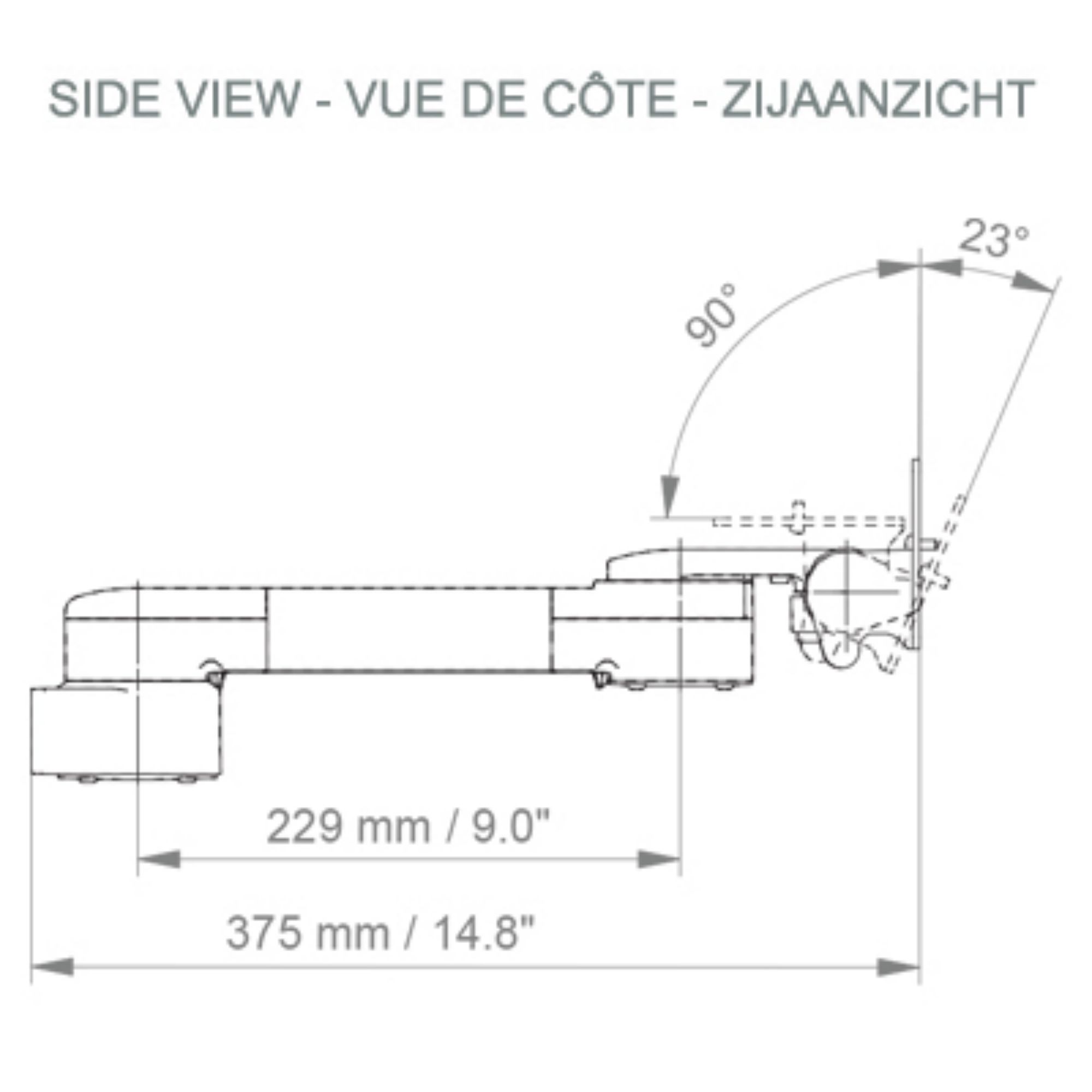

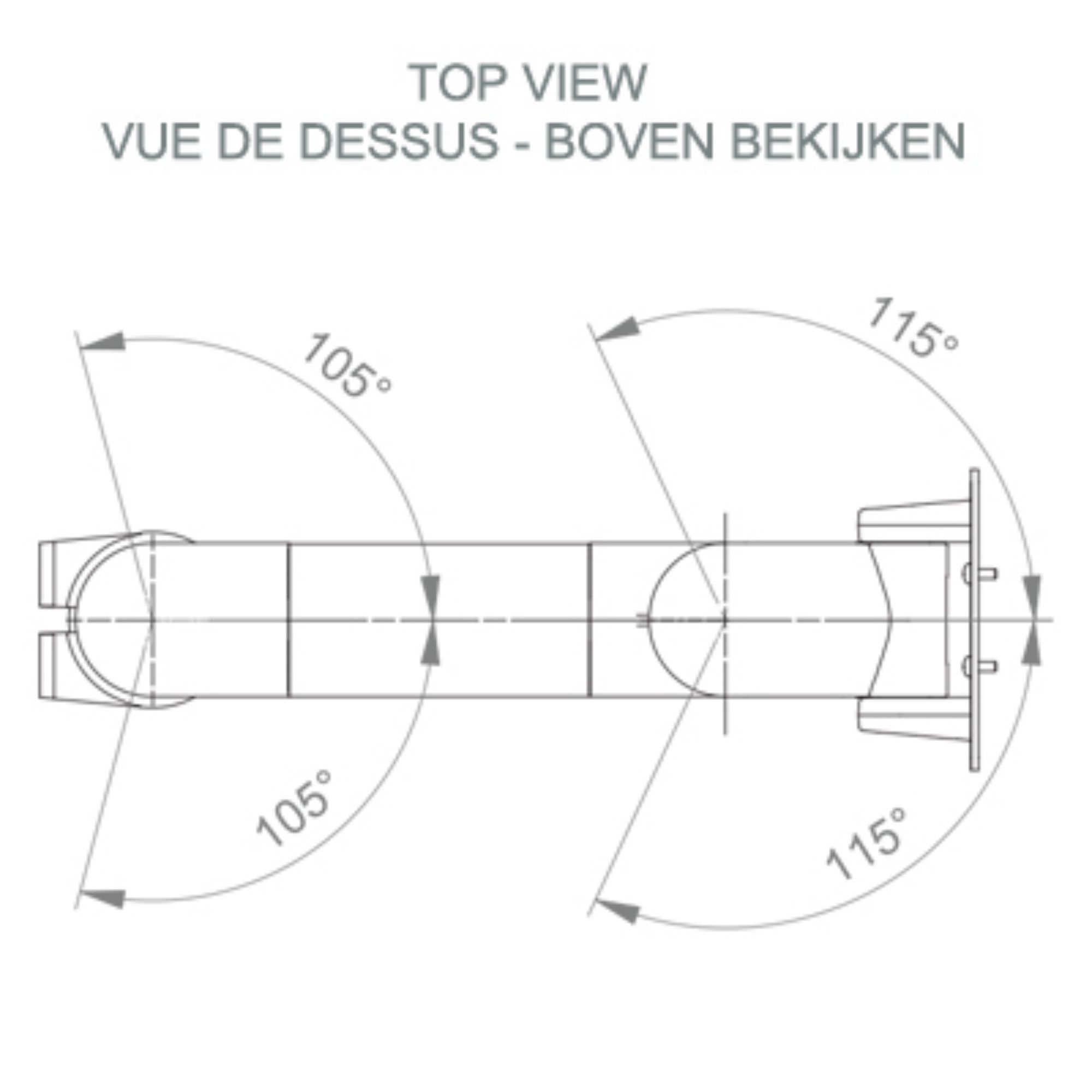

* Monitor tilt: 23° down and 90° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 375 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
