300 mm Laptop Horizontal Medical Arm, wall-mounted on vertical sliding rail

Product number: WM 336.109 - 300 mm Laptop Horizontal Medical Arm, wall-mounted on vertical sliding rail

Product sheet PDF

This 300 mm swivel medical arm allows you to fix, orientate and adjust your laptop perfectly. It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.
Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

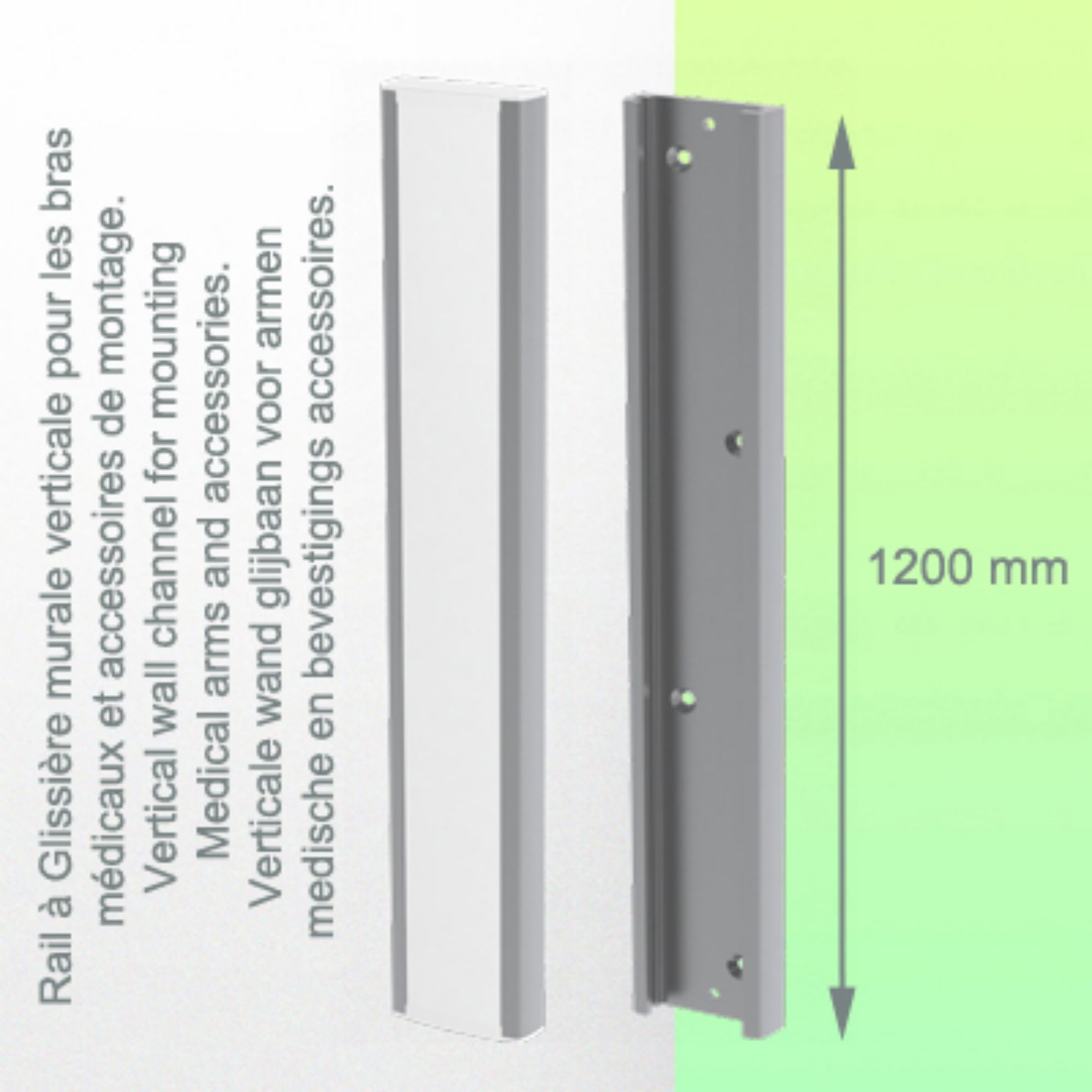

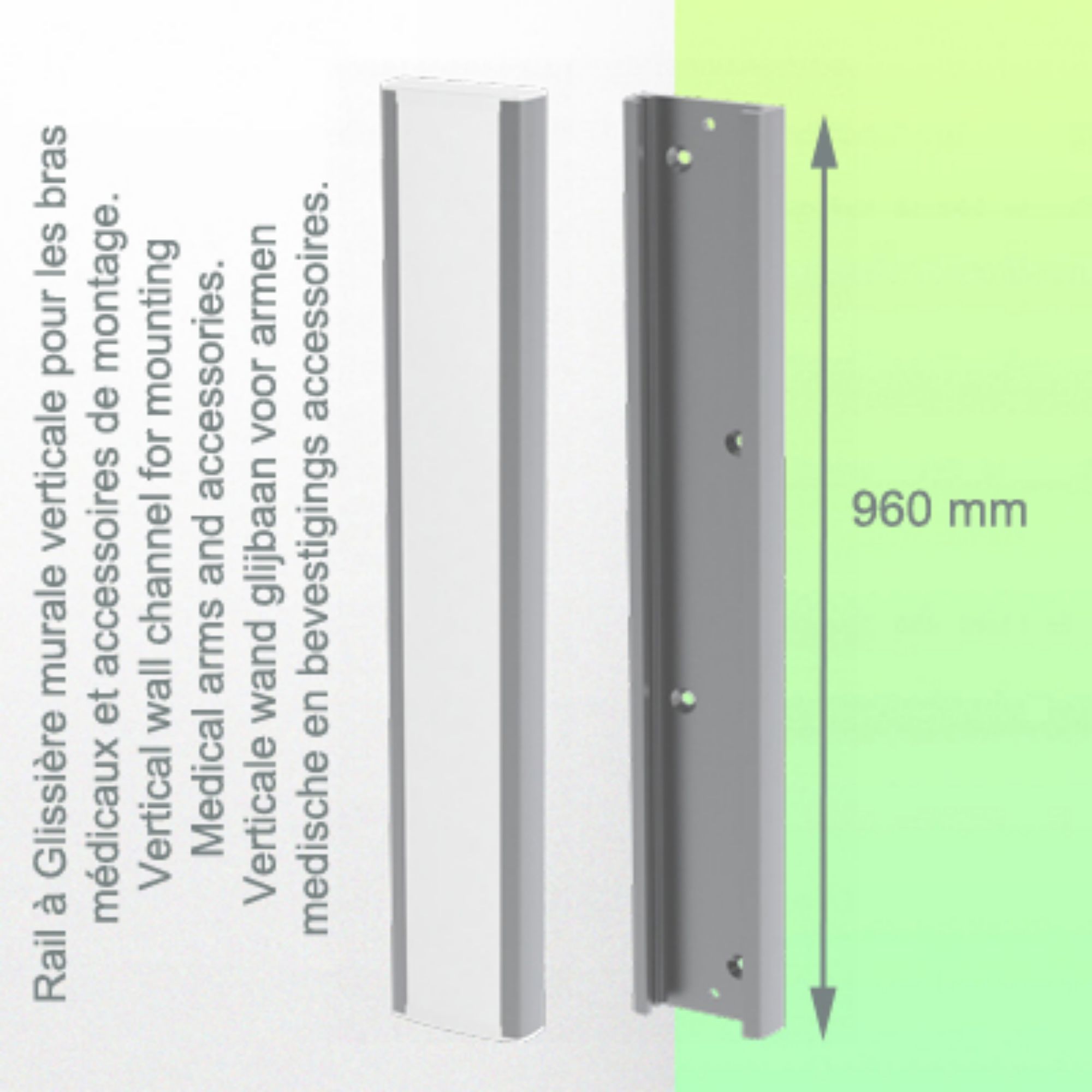

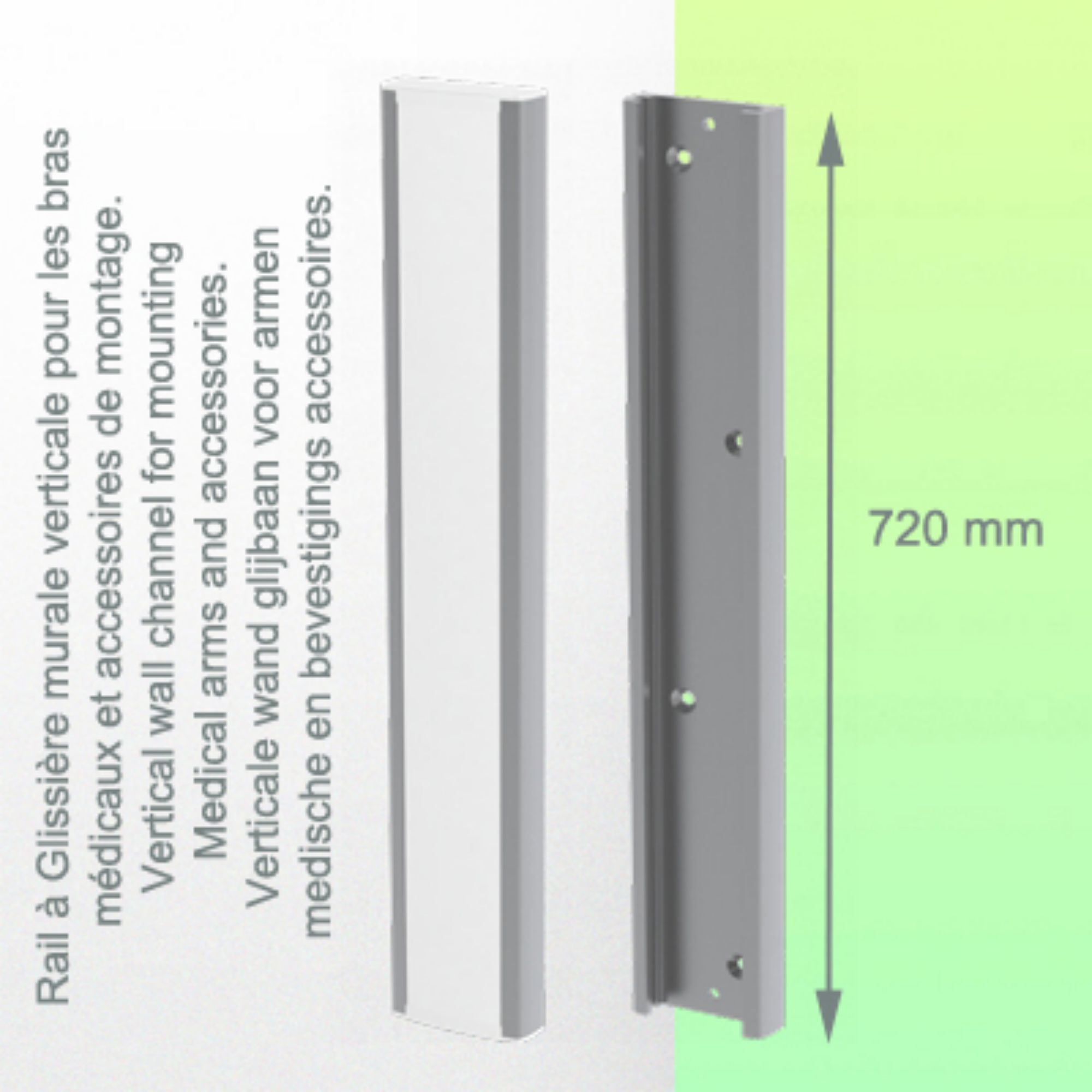

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)
These wall tracks can easily be cut to the required size.
All cables also run through the wall rail.

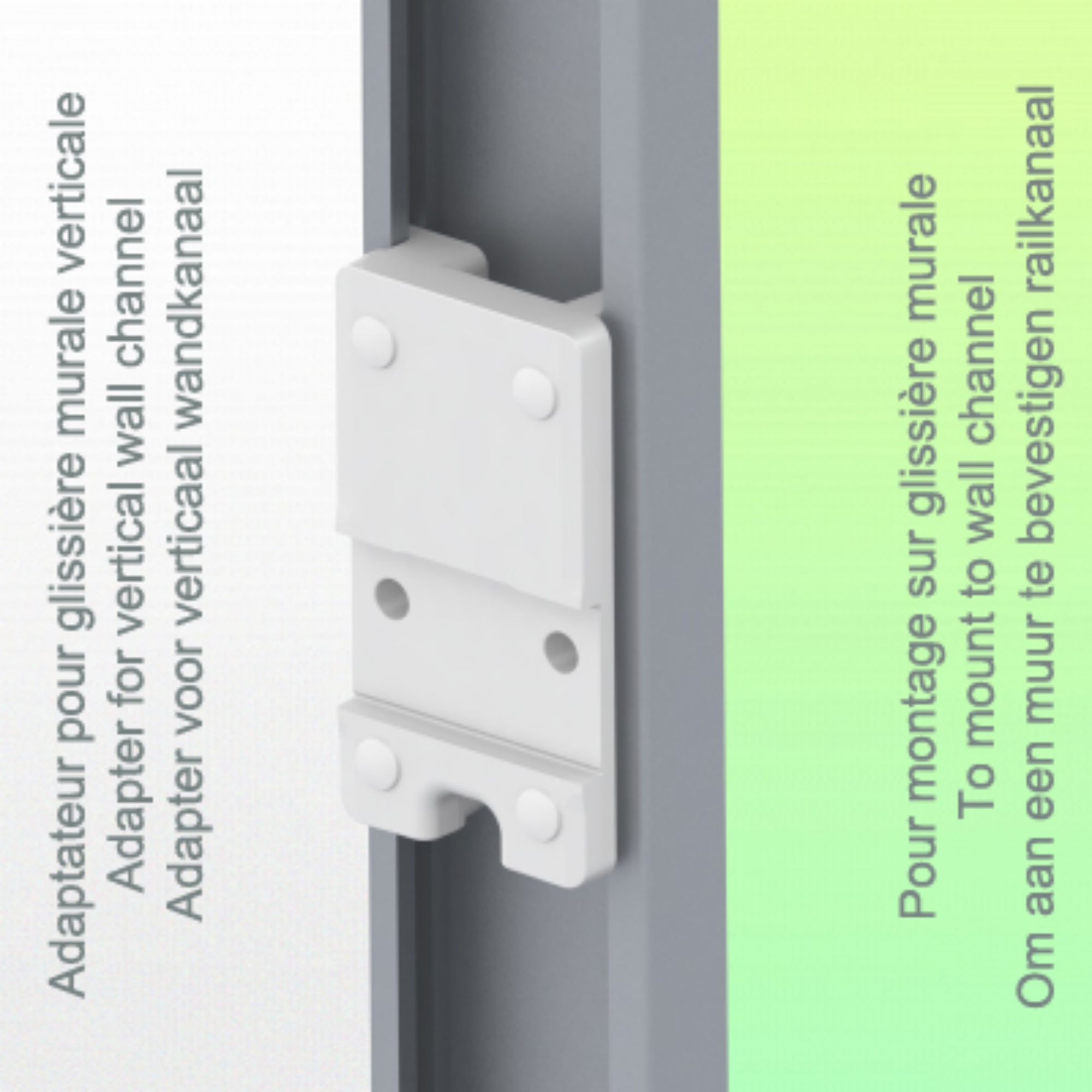

* This 300 mm swivel arm simply slides into the wall track and then adjusts to the required height.

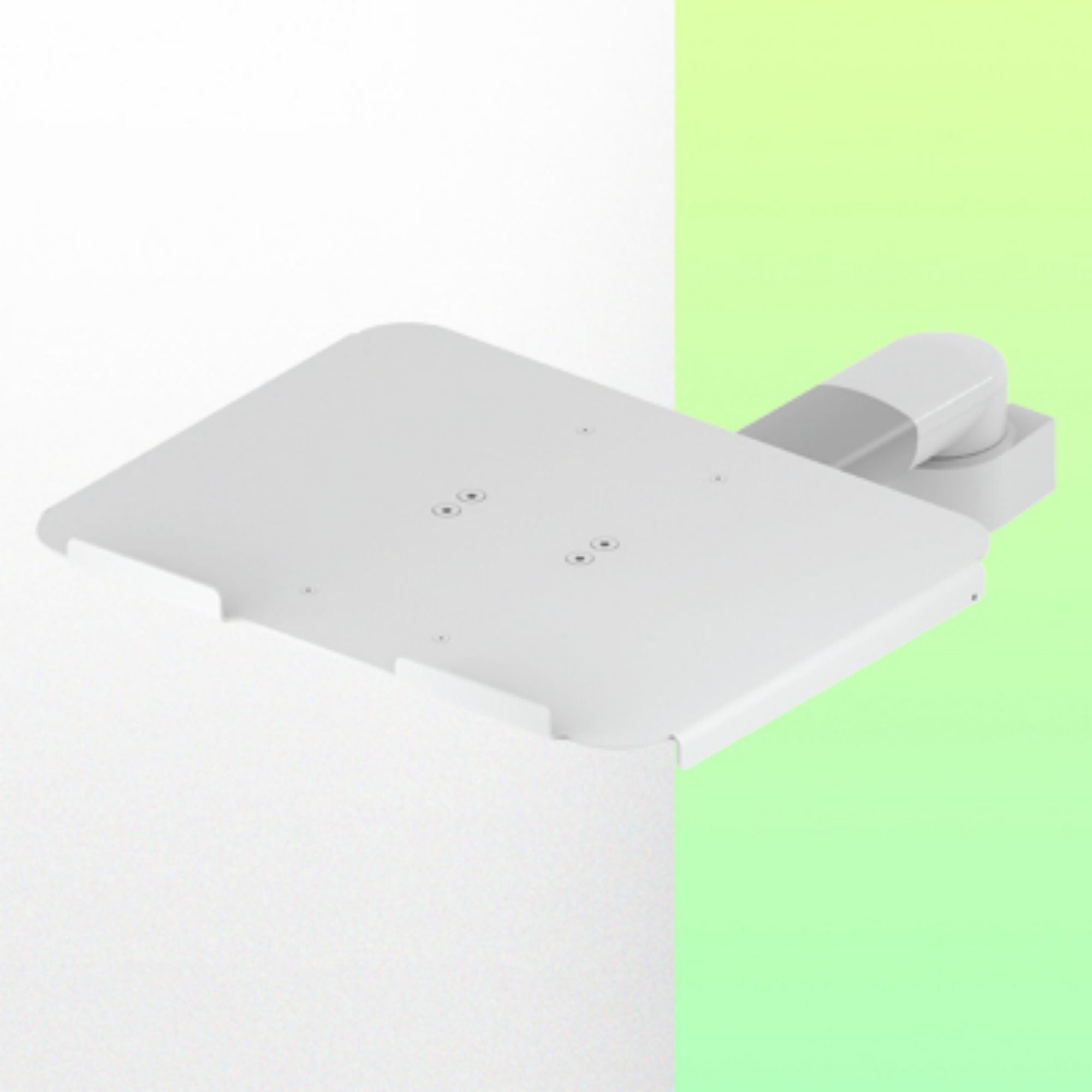

* The laptop stand supplied in this version has the following dimensions
dimensions: 360 x 290 mm

* The weight of the arm is 17 kg and of the tray 10 kg

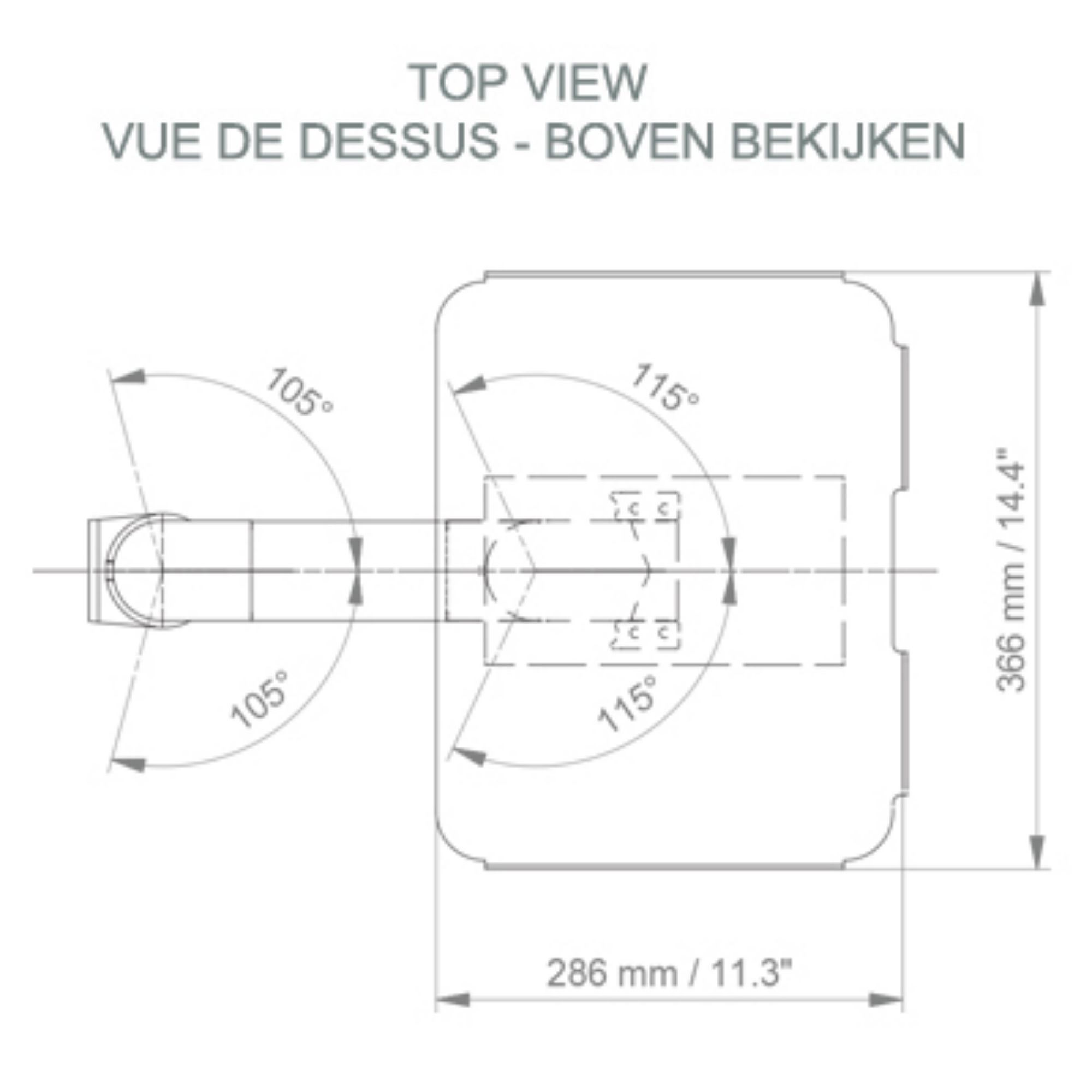

* Laptop support rotation: 115° to the right and to the left, 20° tilt

* Arm rotation: 105° to the right and to the left.

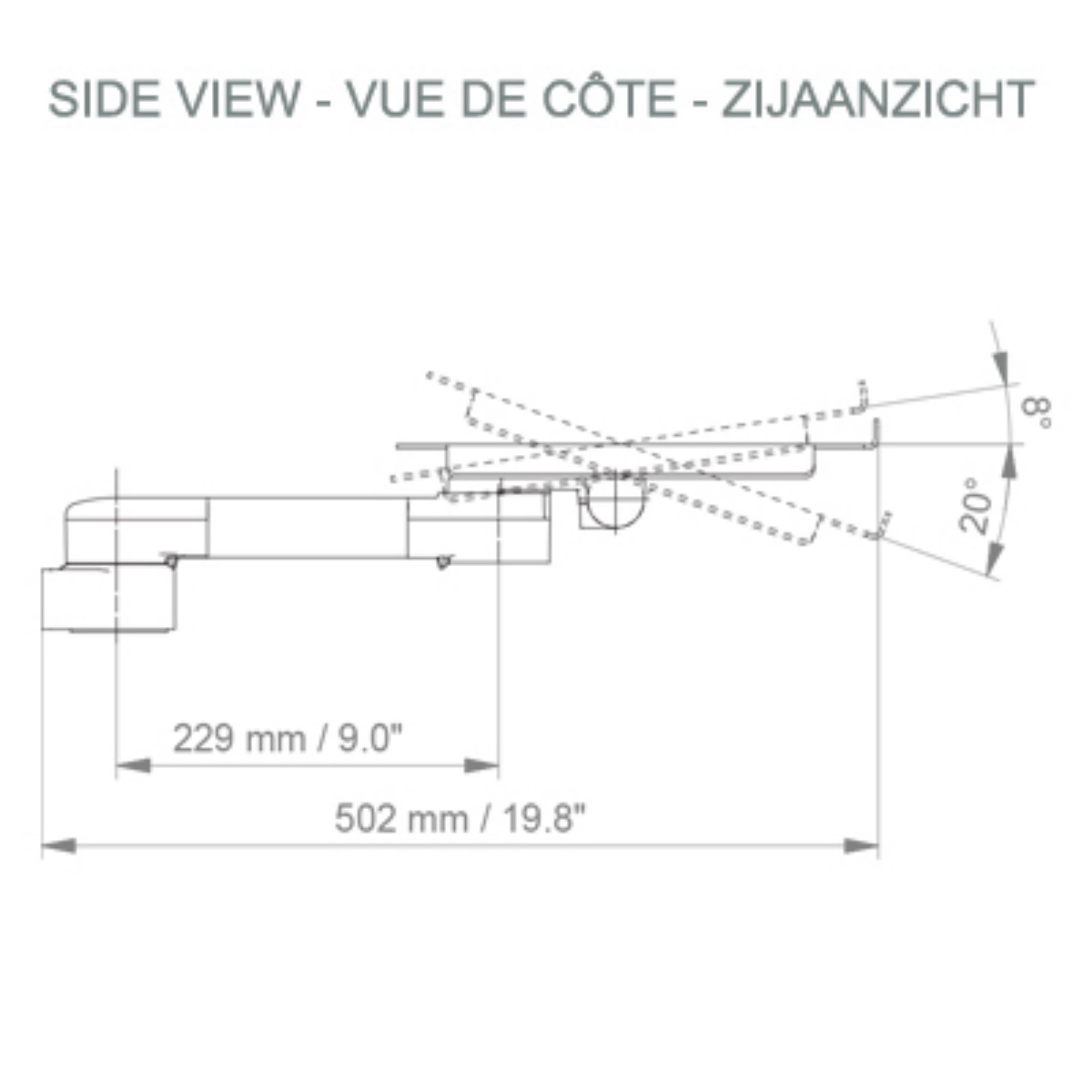

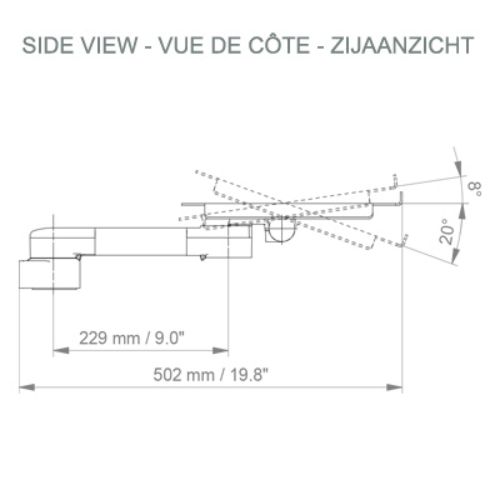

* Total length 502 mm

* Colour RAL 7024 (Graphite Grey) and White

* All our medical arms are CE, ROHS, Medical Grade, MDD 93/42 ECC compliant.

* Warranty: 5 years
