450mm Height Adjustable Horizontal Medical Arm for Laptop,

Wall Mount on Vertical Slide Rail

Supported weight balance scale from 0 to 4 Kg

Product number: WM 337.109 - 450mm Height Adjustable Horizontal Medical Arm for Laptop,

for Mounting on Mindray Medical Power Supply Device

Supported weight balance scale from 0 to 4 Kg

Product sheet PDF

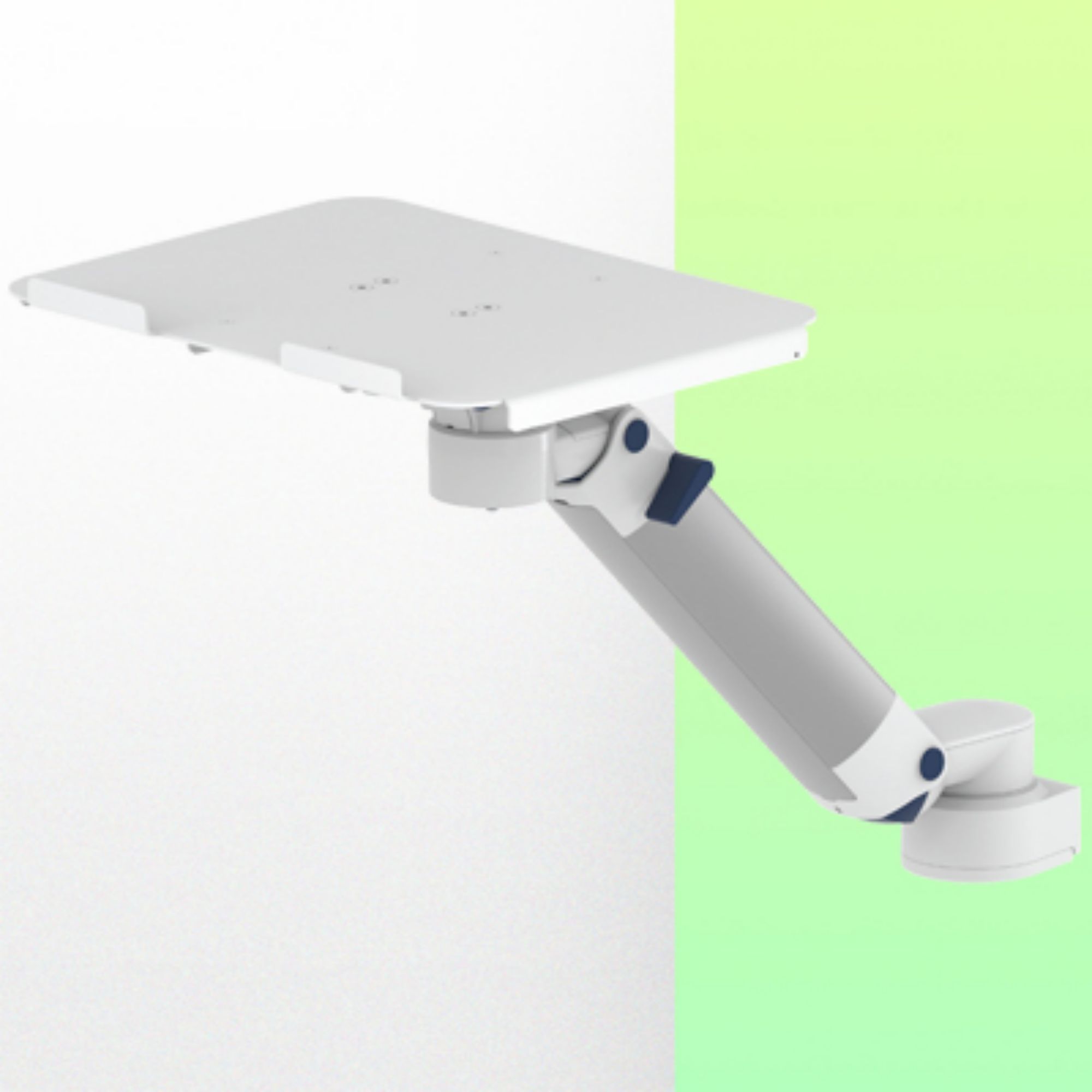

This 450 mm height-adjustable medical arm allows you to perfectly fix, orient and adjust your laptop. It is coated with an anti-microbial agent offering hygiene and cleaning in every detail. Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Integrated cable passage

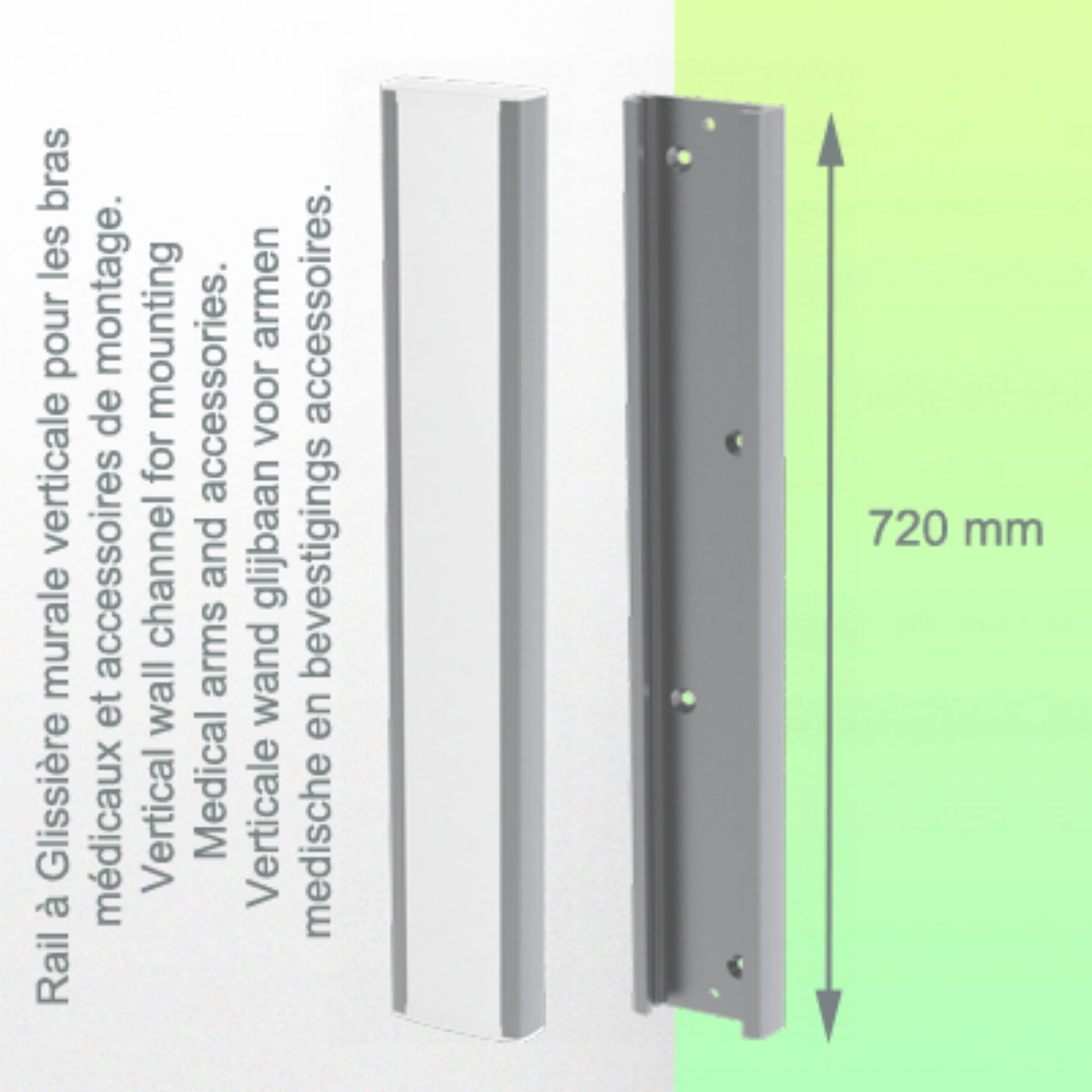

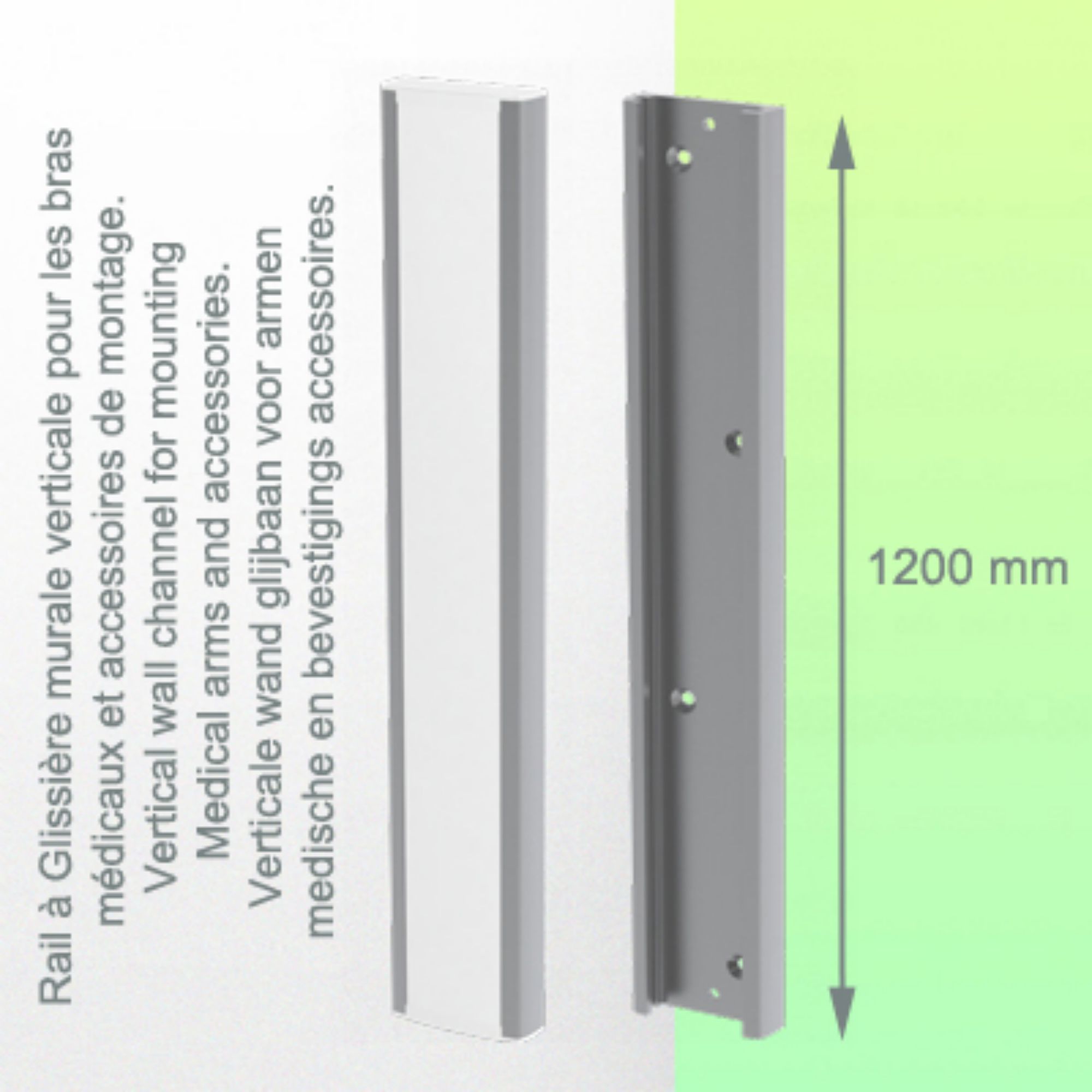

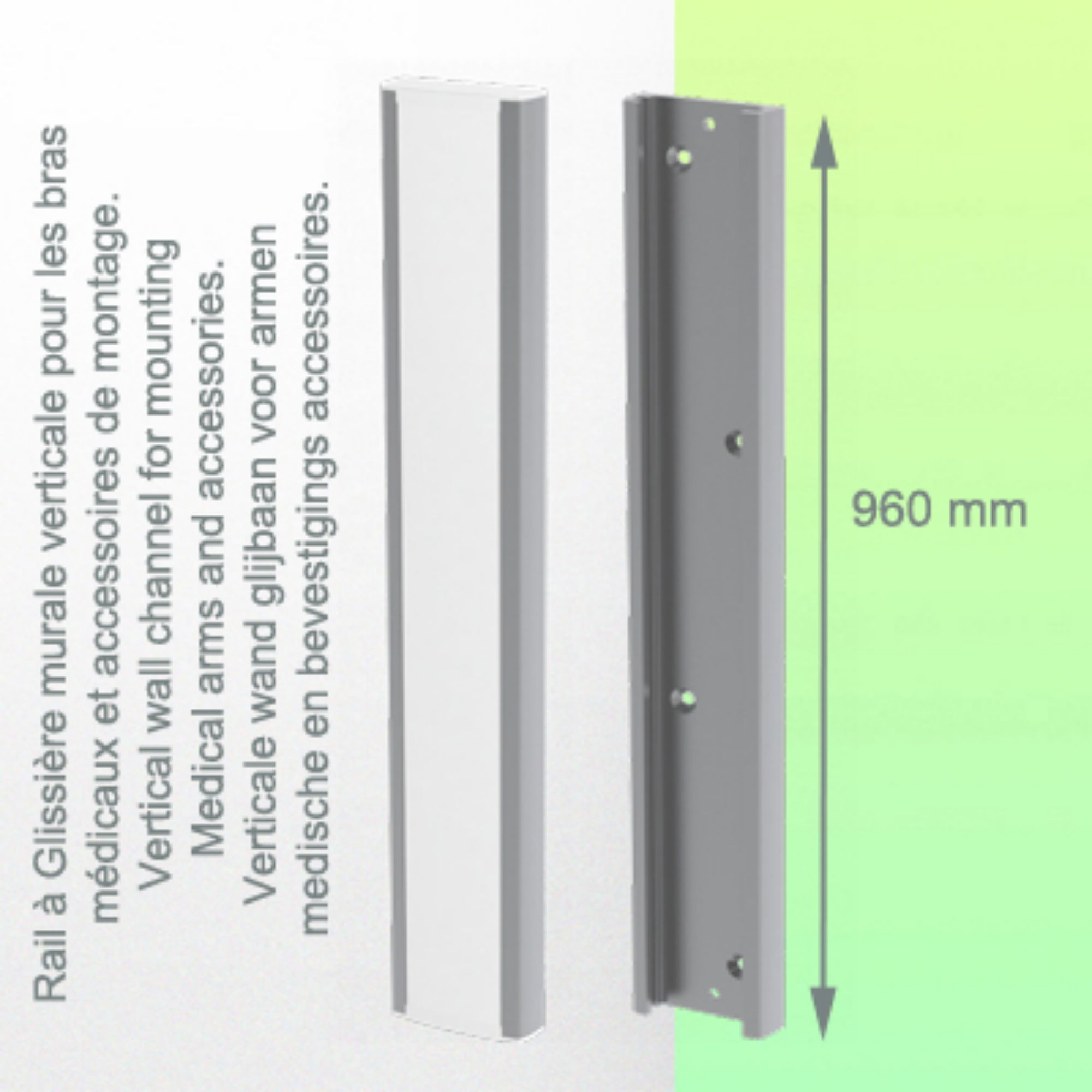

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to the desired dimension. All cables also pass through the wall rail.

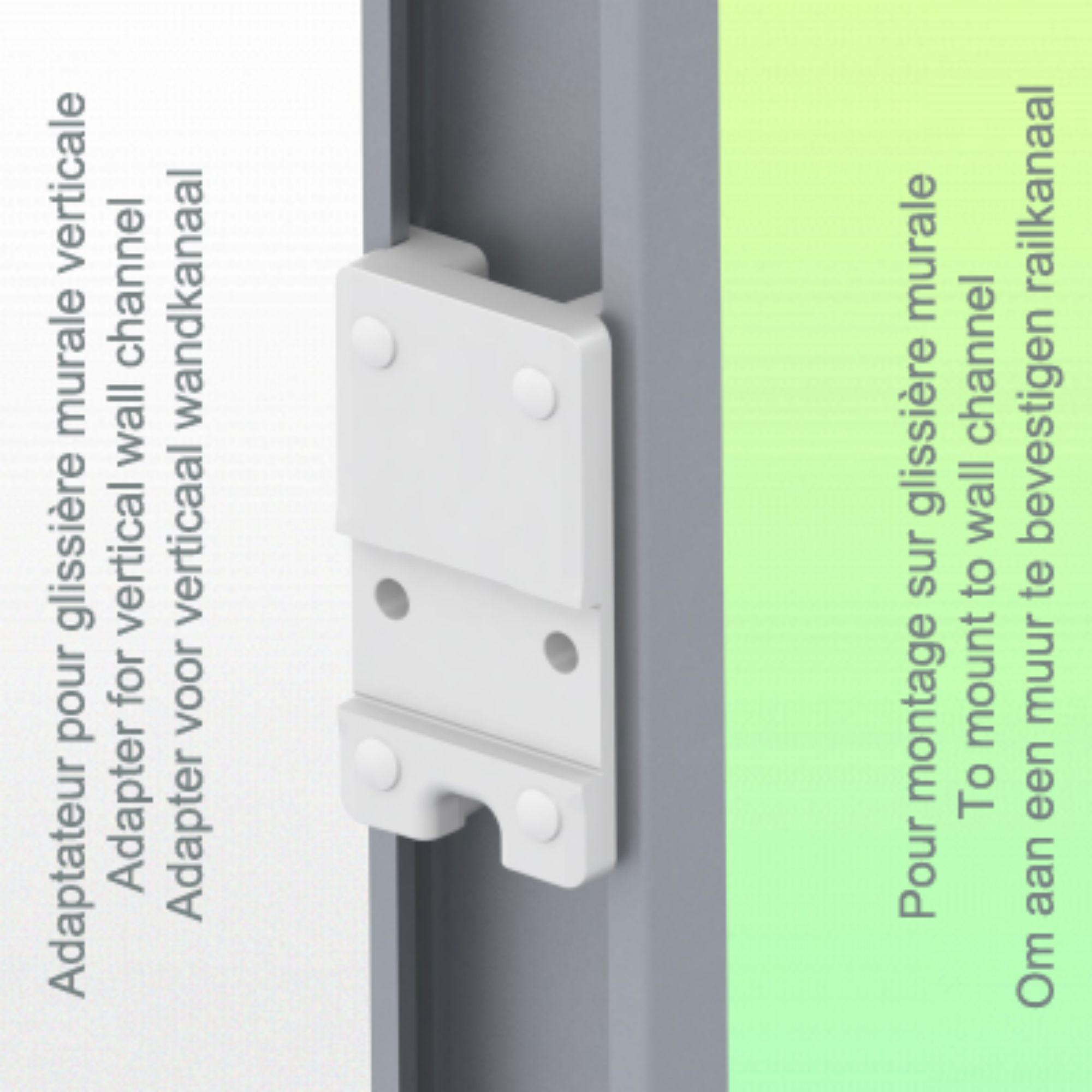

* This 450 mm height-adjustable arm simply slides into the wall rail and then adjusts to the desired height and is fixed.

* The laptop stand supplied in this version has the dimensions of: 360 x 290 mm

* The weight supported by the arm is 21 kg and 10 kg for the tray

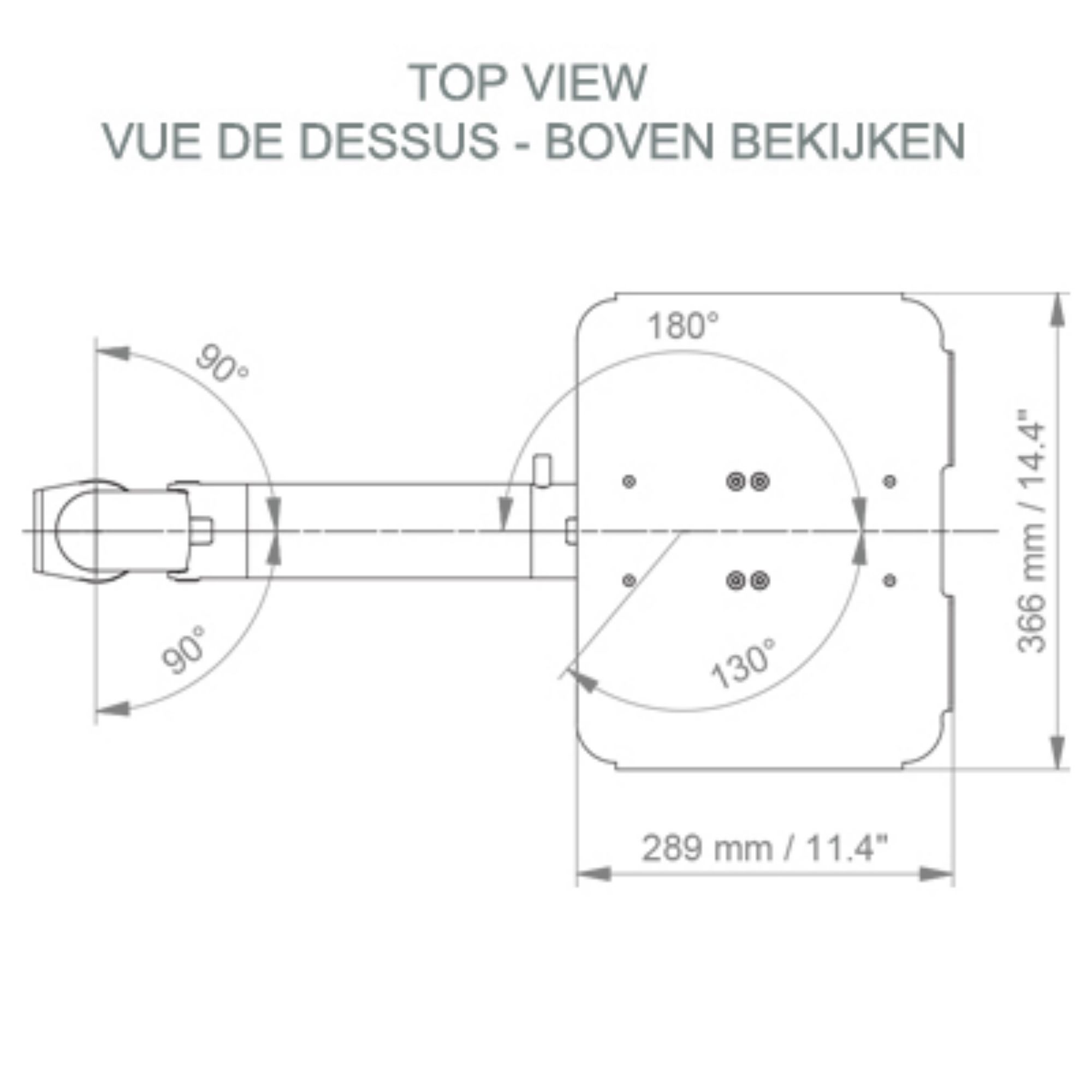

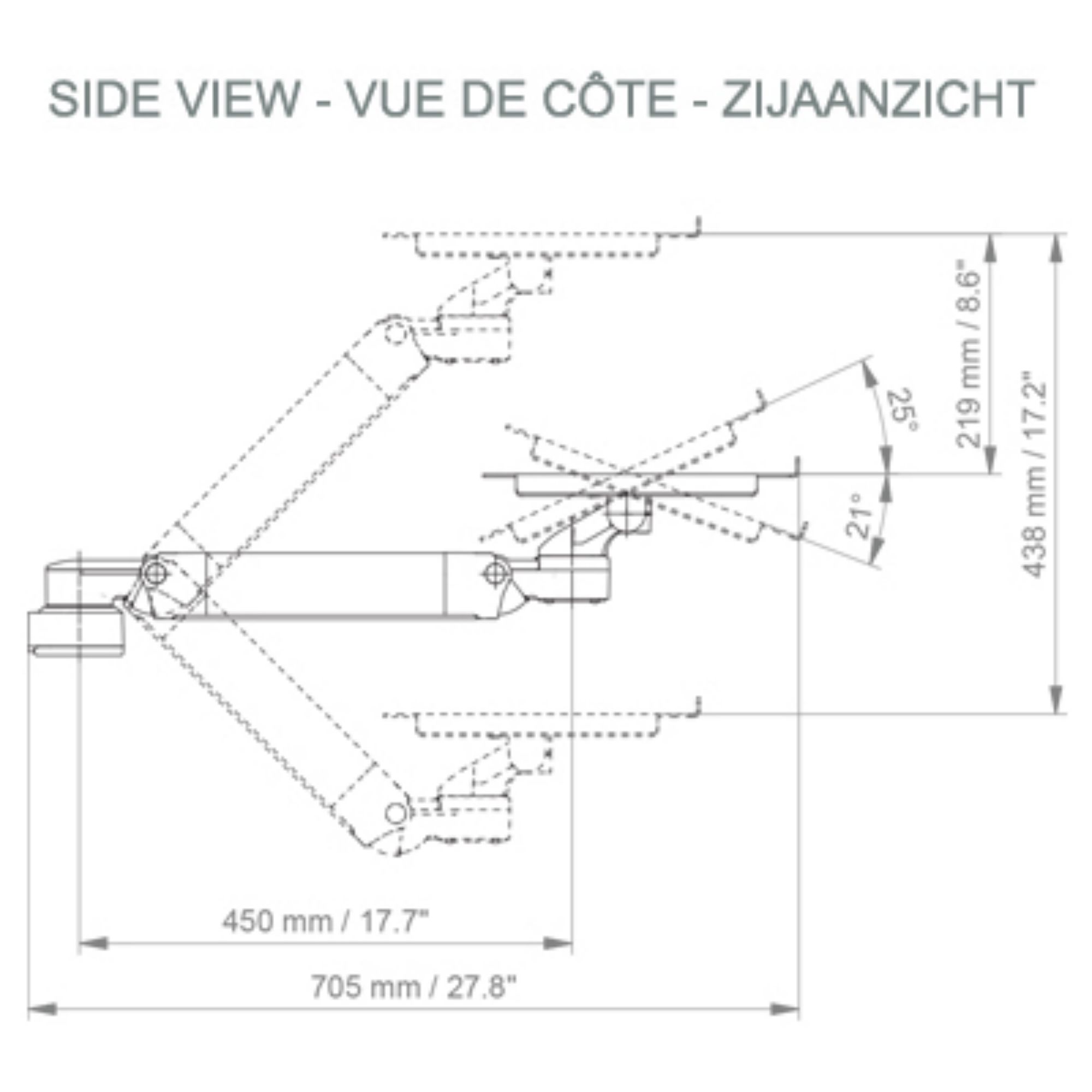

* Rotation of the Laptop stand: 130° to the right and 180° to the left, tilt of 21° downwards and 25° upwards

* Rotation of the arm: 90° to the right and left.

* Total length 705 mm

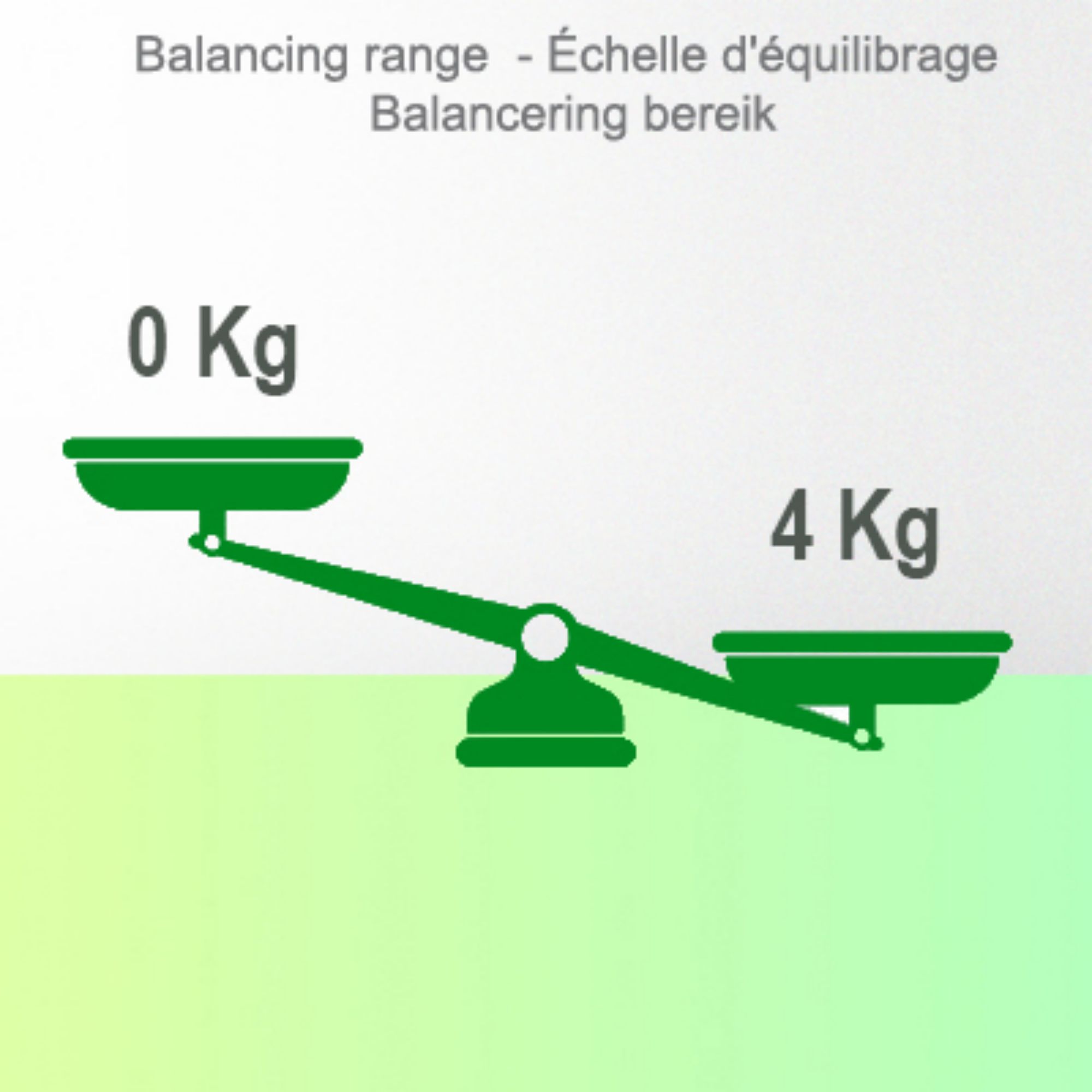

* Balancing range: 1-4 Kg

* Color RAL 7024 (Graphite Grey) and White

* All our medical arms are compliant with: CE, ROHS, Medical Grade, MDD 93/42 ECC regulations.

* Warranty: 5 years
