450+230mm Height Adjustable Horizontal Medical Arm for Laptop,

for Wall Mount on Vertical Slide Rail

Supported weight balance scale from 0 to 4 Kg

Product number: WM 337.110 - 450+230mm Height Adjustable Horizontal Medical Arm for Laptop,

for Wall Mount on Vertical Slide Rail.

Supported weight balance scale from 0 to 4 Kg

Product sheet PDF

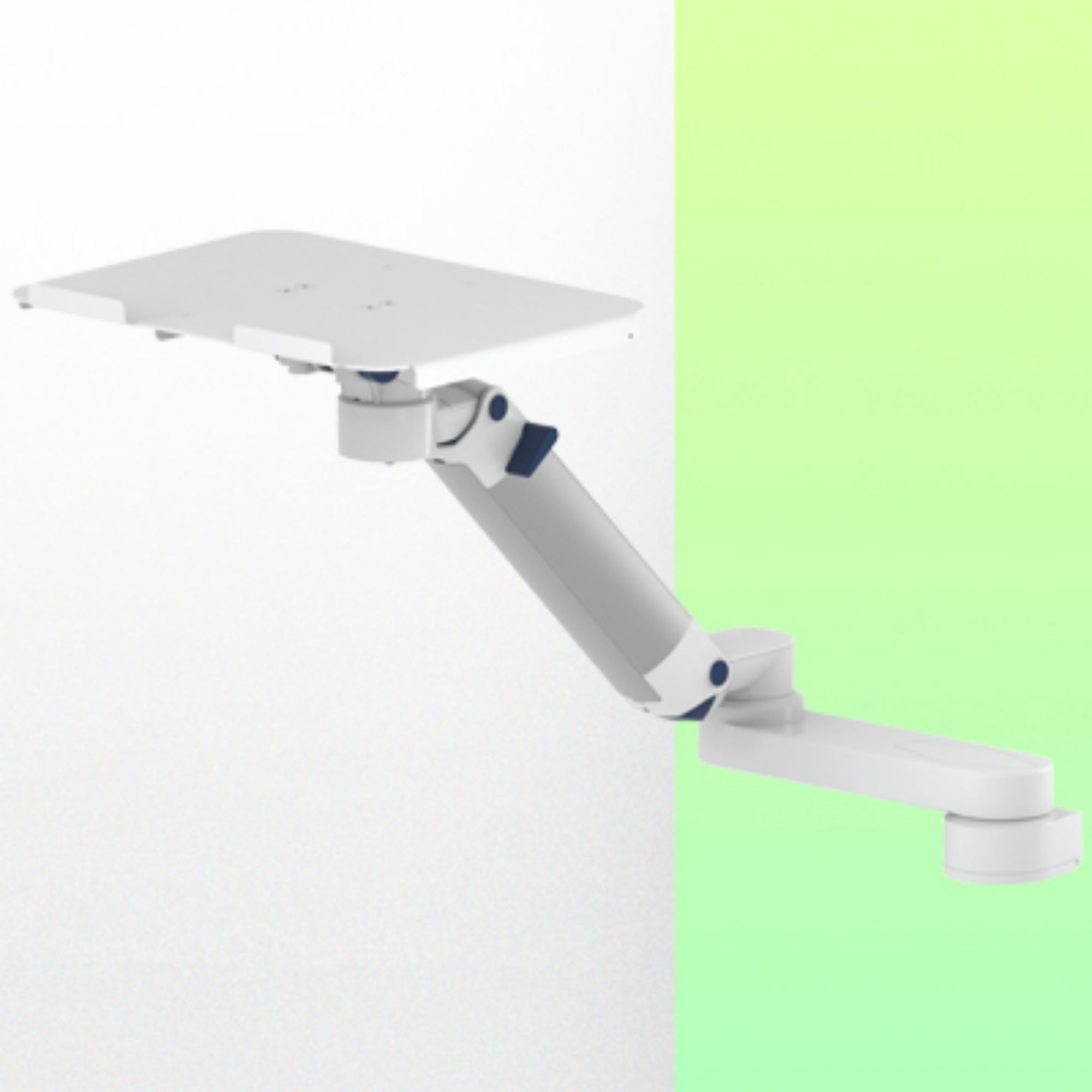

This 450+230 mm height-adjustable double medical arm allows you to fix, orient and adjust your laptop perfectly. It is coated with an anti-microbial agent offering hygiene and cleaning down to the smallest details. Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Integrated cable passage

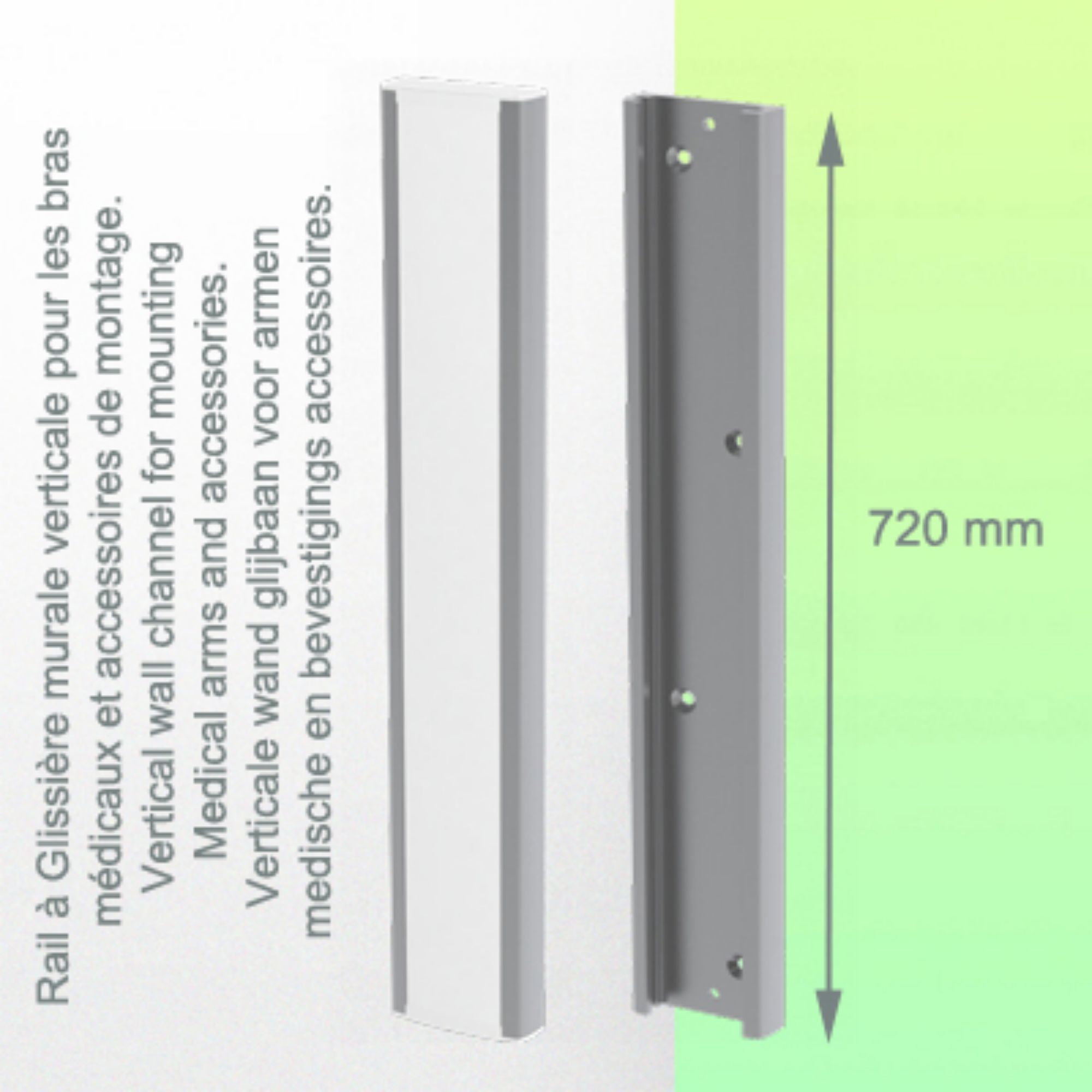

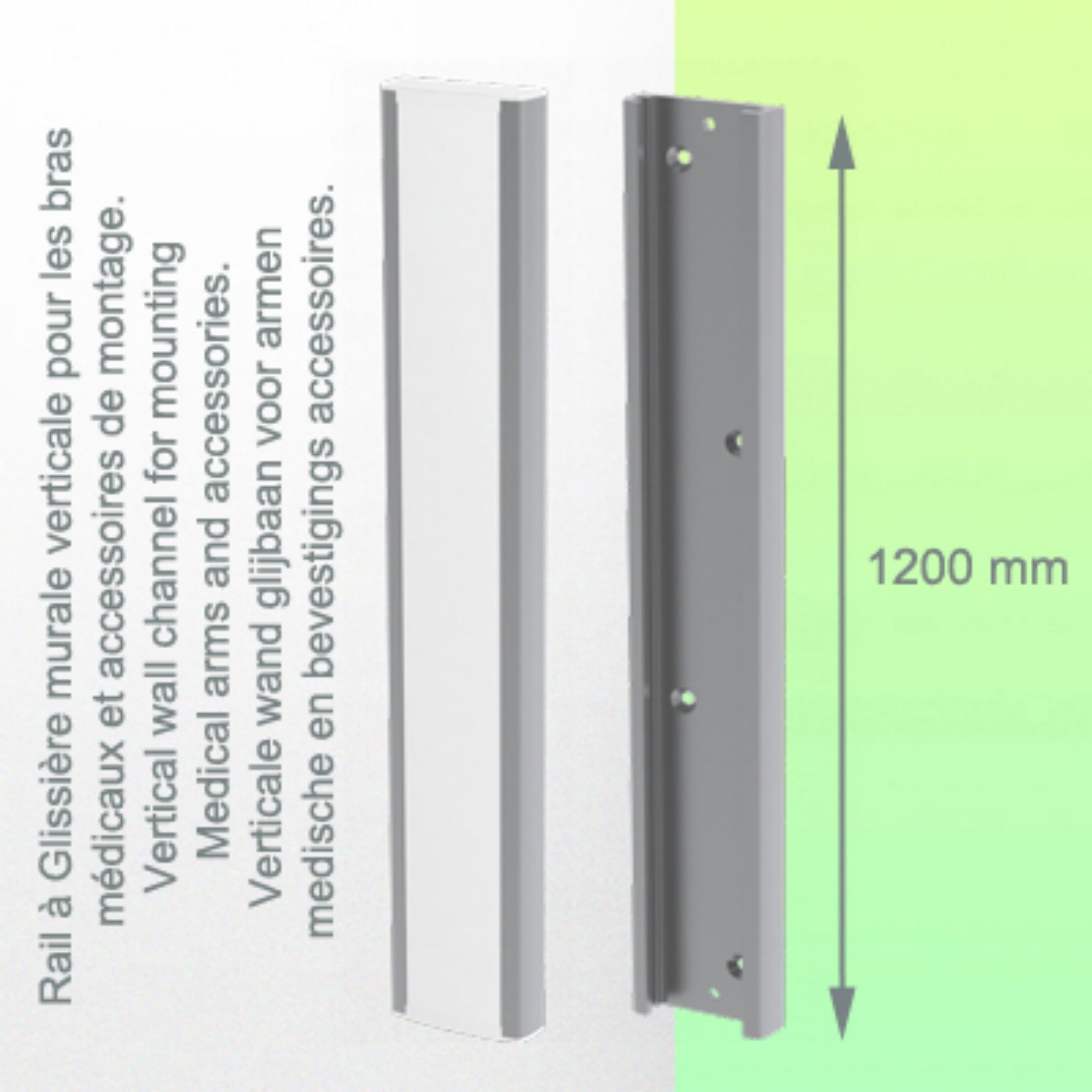

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to the desired dimension.

* All cables also pass through the wall rail.

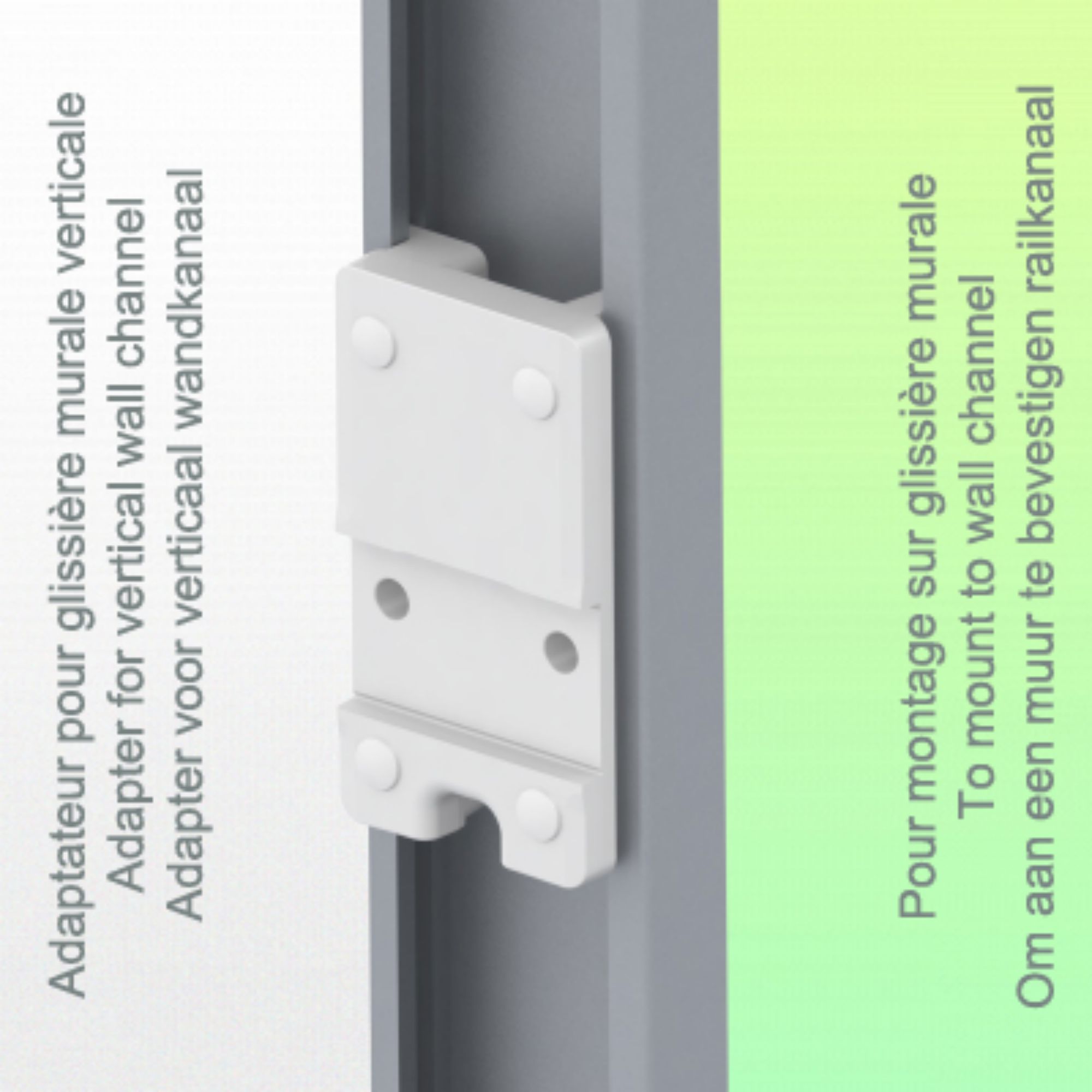

* This double height-adjustable arm of 450+230 mm simply slides into the wall rail and then adjusts to the desired height and is fixed.

* The laptop stand supplied in this version has the dimensions of: 360 x 290 mm

* The weight supported by the arm is 21 kg and 10 kg for the tray

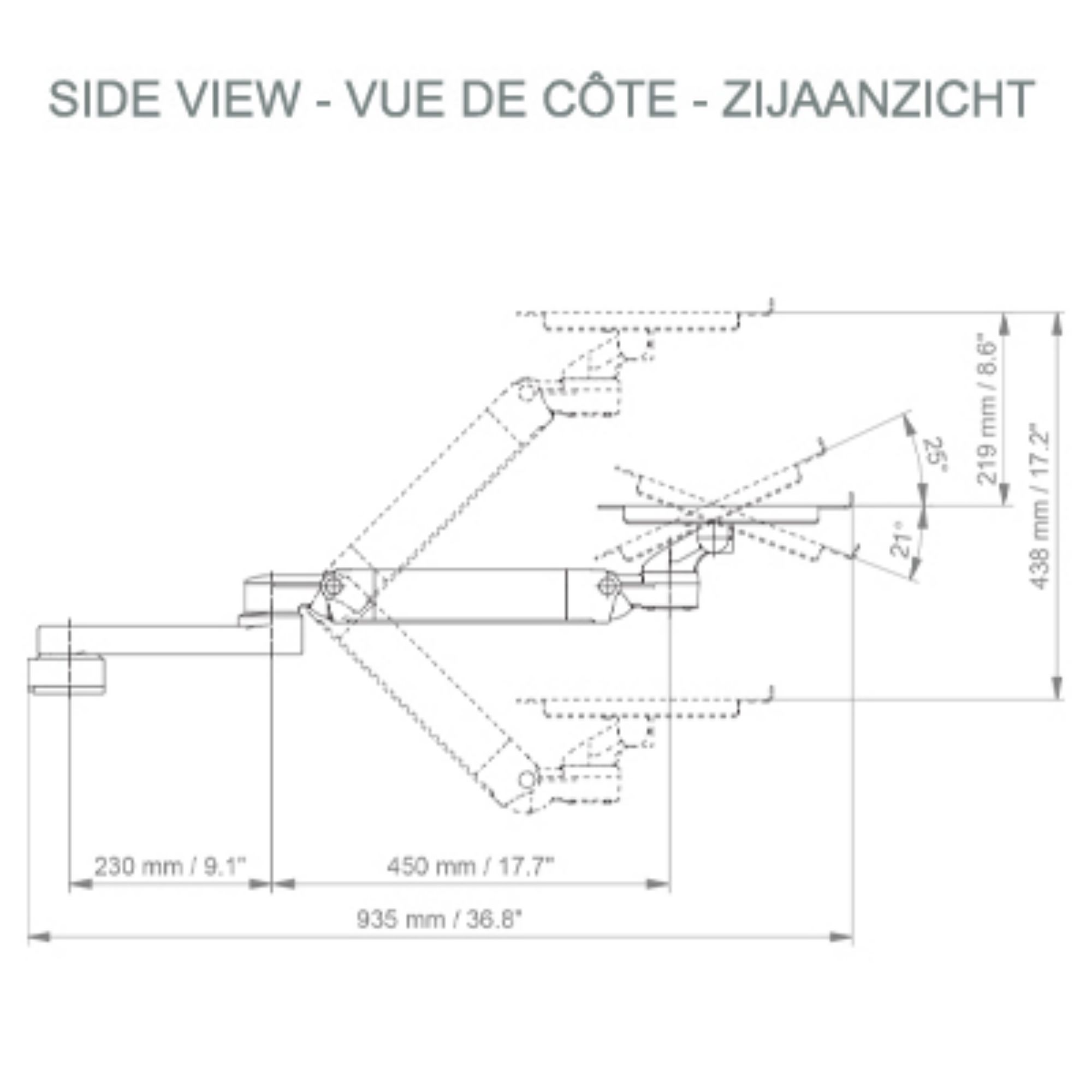

* Rotation of the Laptop stand: 130° to the right and 180° to the left, tilt 21° down and 25° up

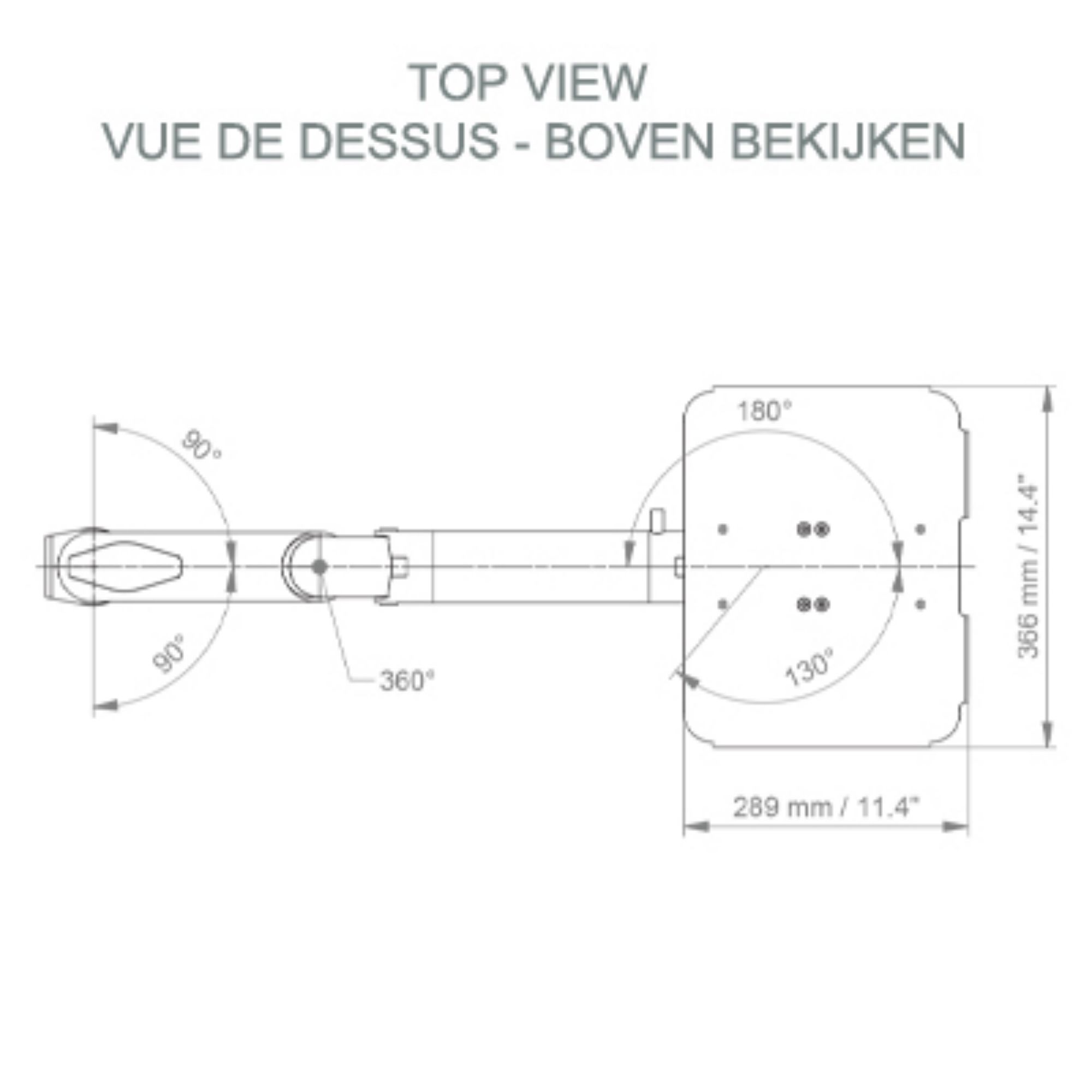

* Rotation of the arm: 90° to the right and left from the adapter and 360° at the intersection

* Total length 935 mm

* Balancing range: 1-4 Kg

* Color RAL 7024 (Graphite gray) and White

* All our medical arms are compliant with: CE, ROHS, Medical Grade, MDD 93/42 ECC regulations.

* Warranty: 5 years
