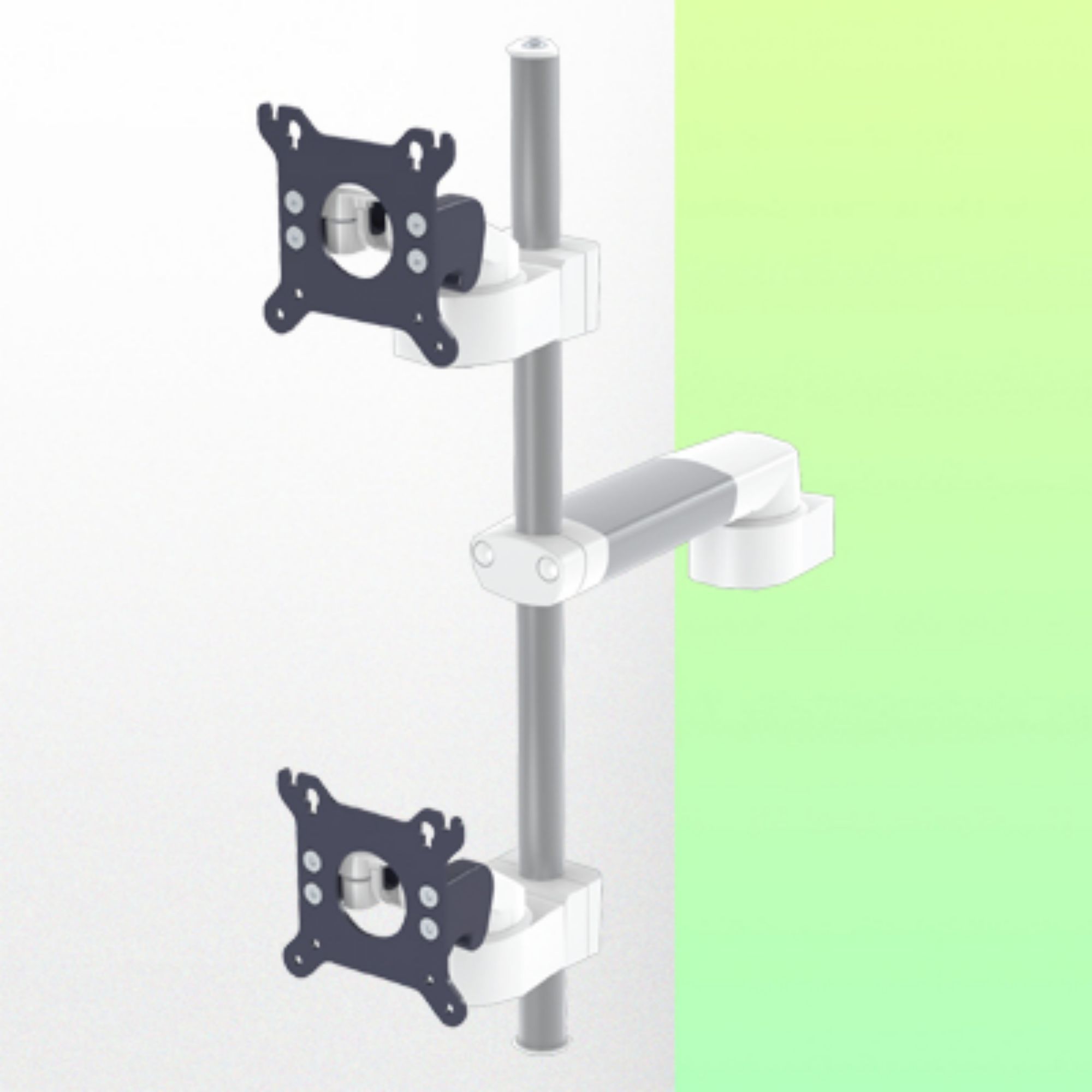

Horizontal Medical Arm 240 mm with pole for two screens

Vertical Wall Rail mounting with optional cable management

Product number: WM 998.845 - Horizontal Medical Arm 240 mm with pole for two screens

Vertical Wall Rail mounting with optional cable management

Product sheet PDF

This 240mm Horizontal Medical Arm with pole allows two LCD screens to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning in every detail.

Its modern design has been specially developed for healthcare environments.

Its technical features:

* Integrated cable management

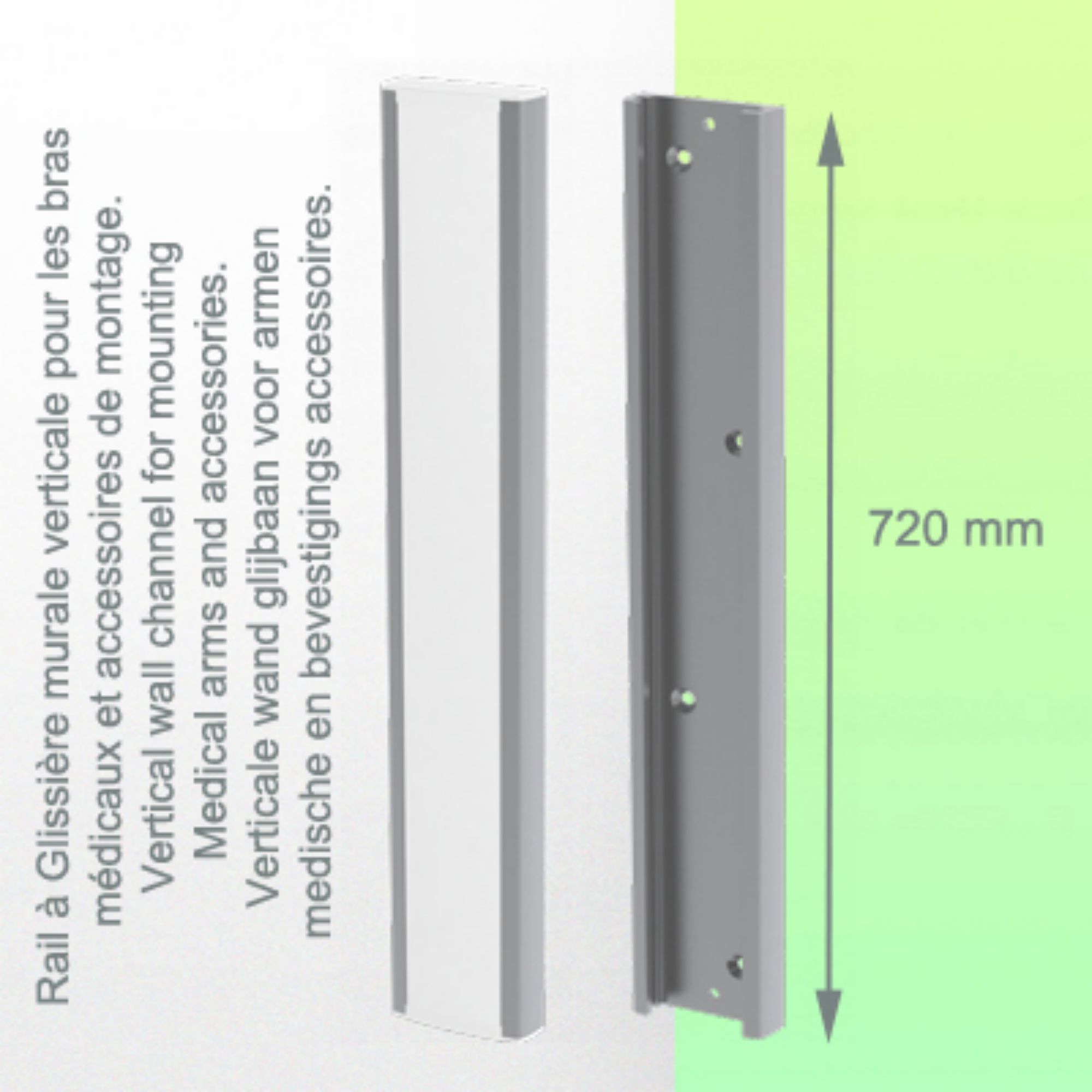

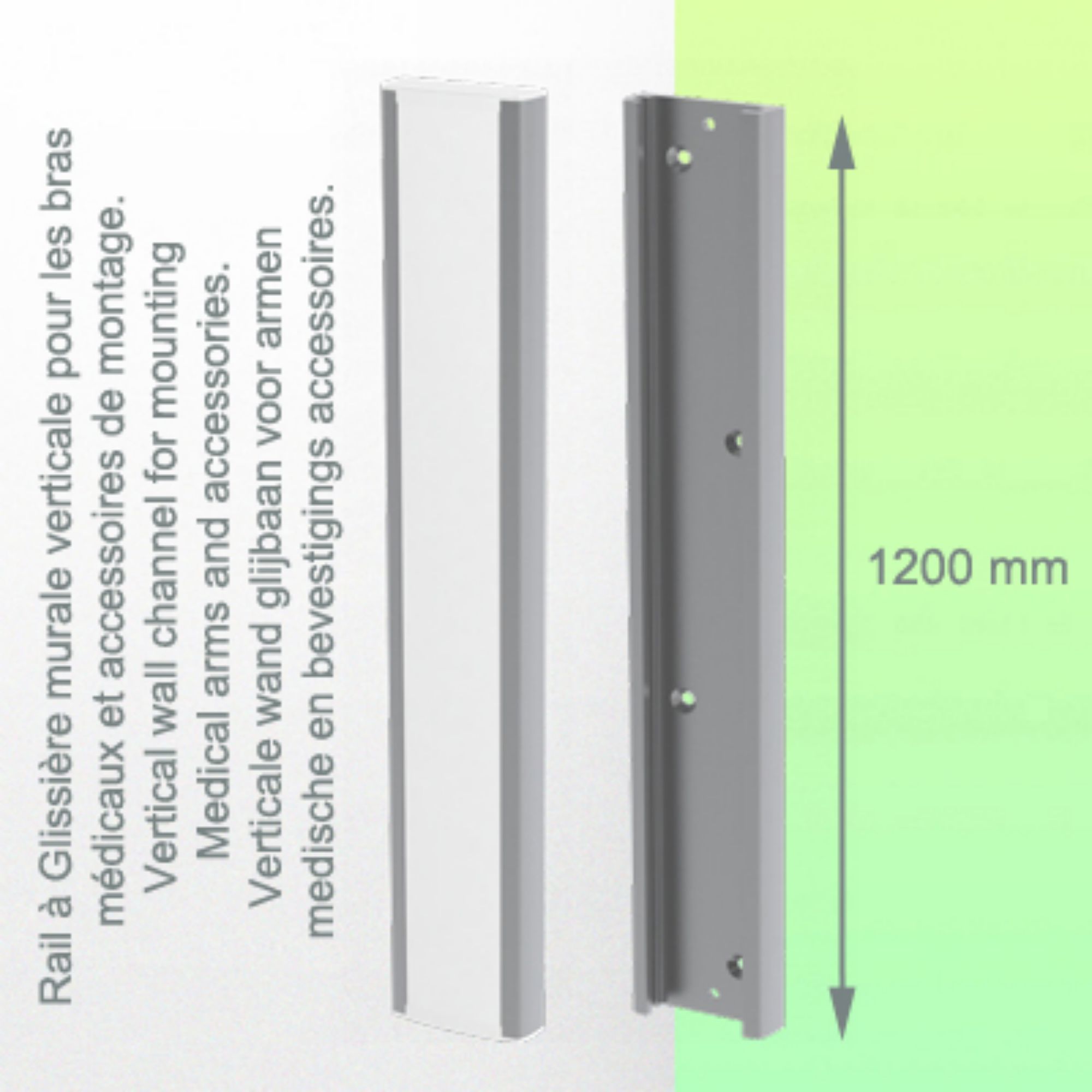

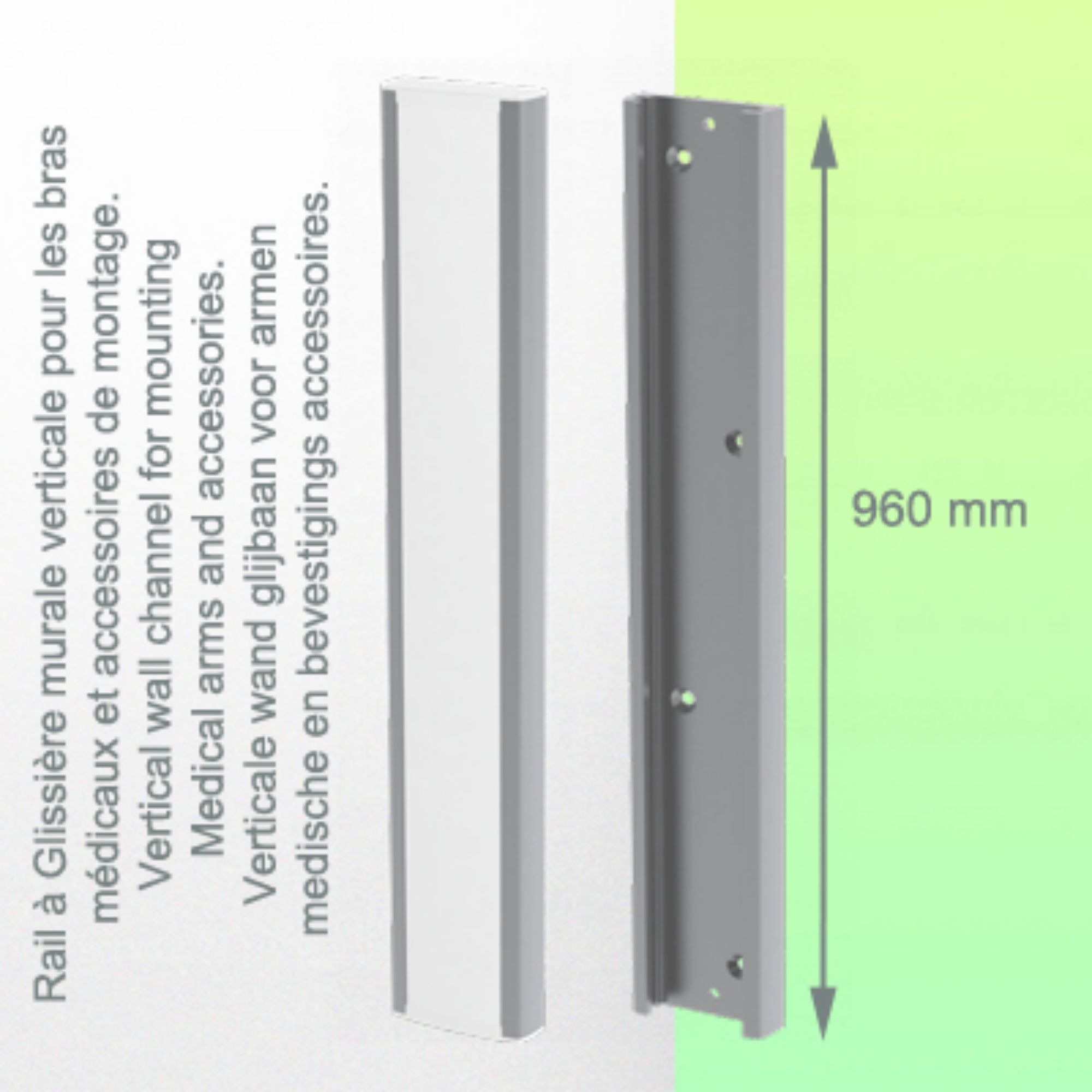

* Optional Vertical Wall Rail mounting, of which several lengths are available available
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to size. required. All cables are also routed through the wall rail.

* This 240mm Horizontal Arm with Pole simply slides into the wall rail and simply slides into the wall rail and then adjusts to the required height and secures. *

* Rotating Head.

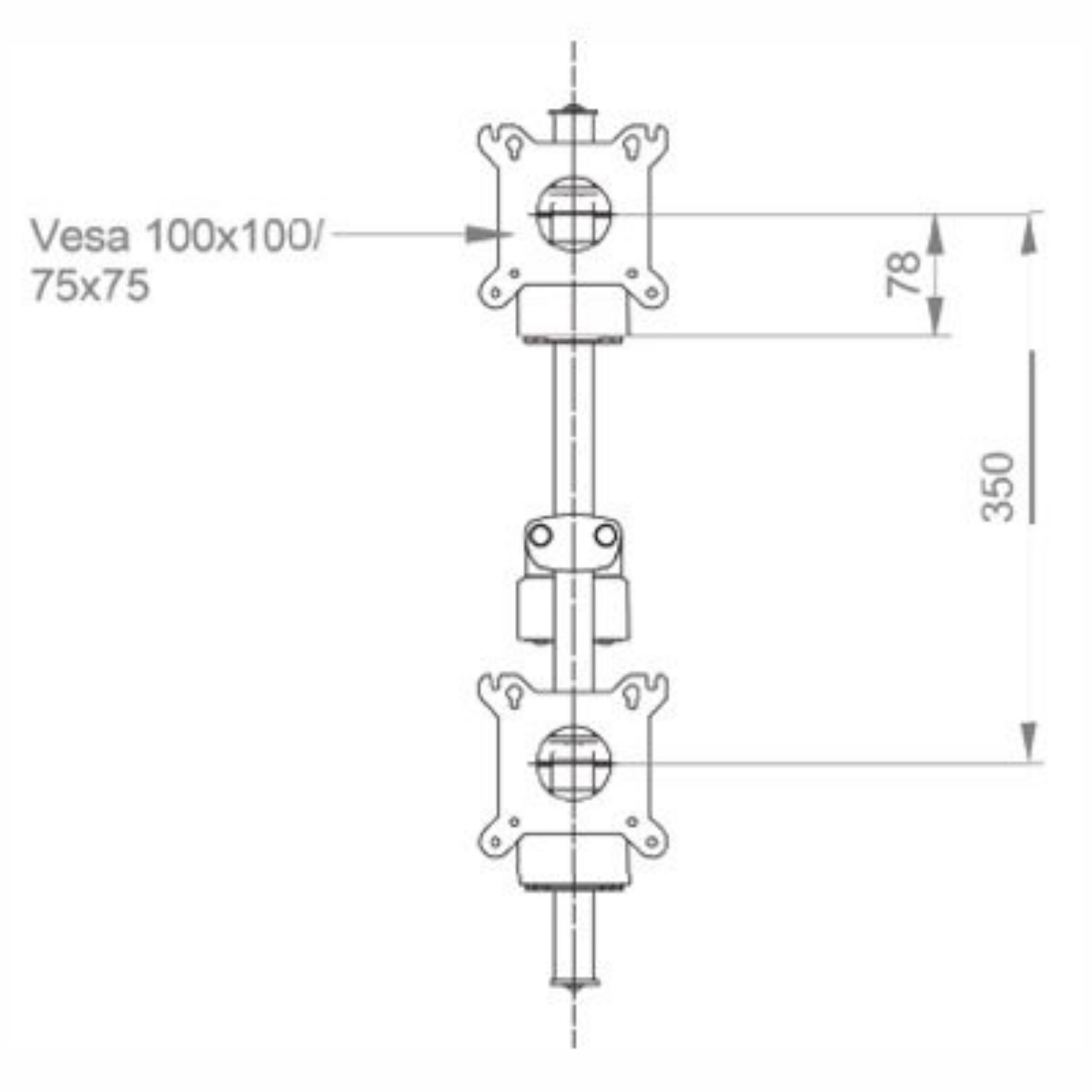

* The ball joints conform to the screen mounting standard: VESA MIS-D 75mm and 100mm.

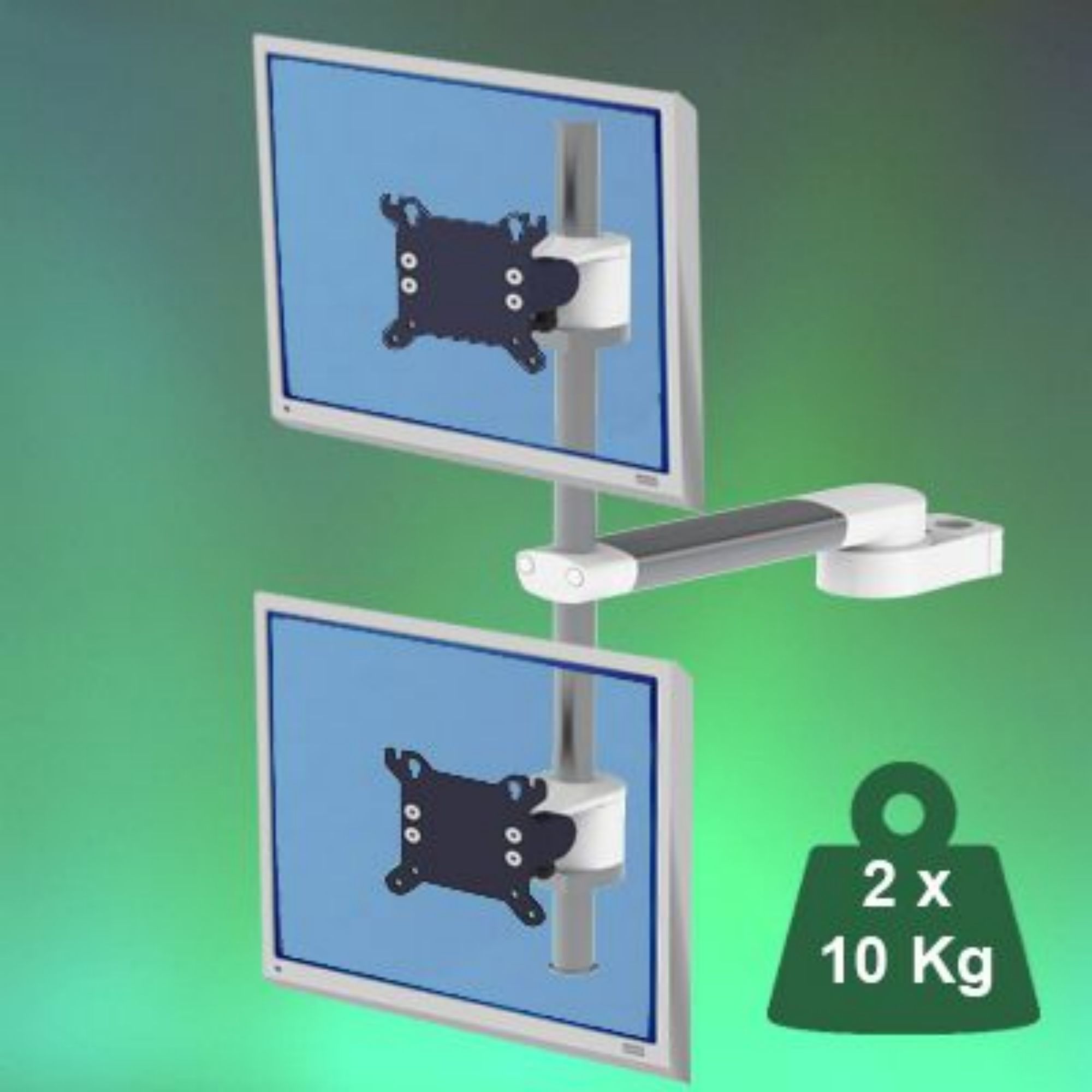

* Compatible with screens weighing up to 10 kg, i.e. 20 kg in total.

* Stability of the touch screen.

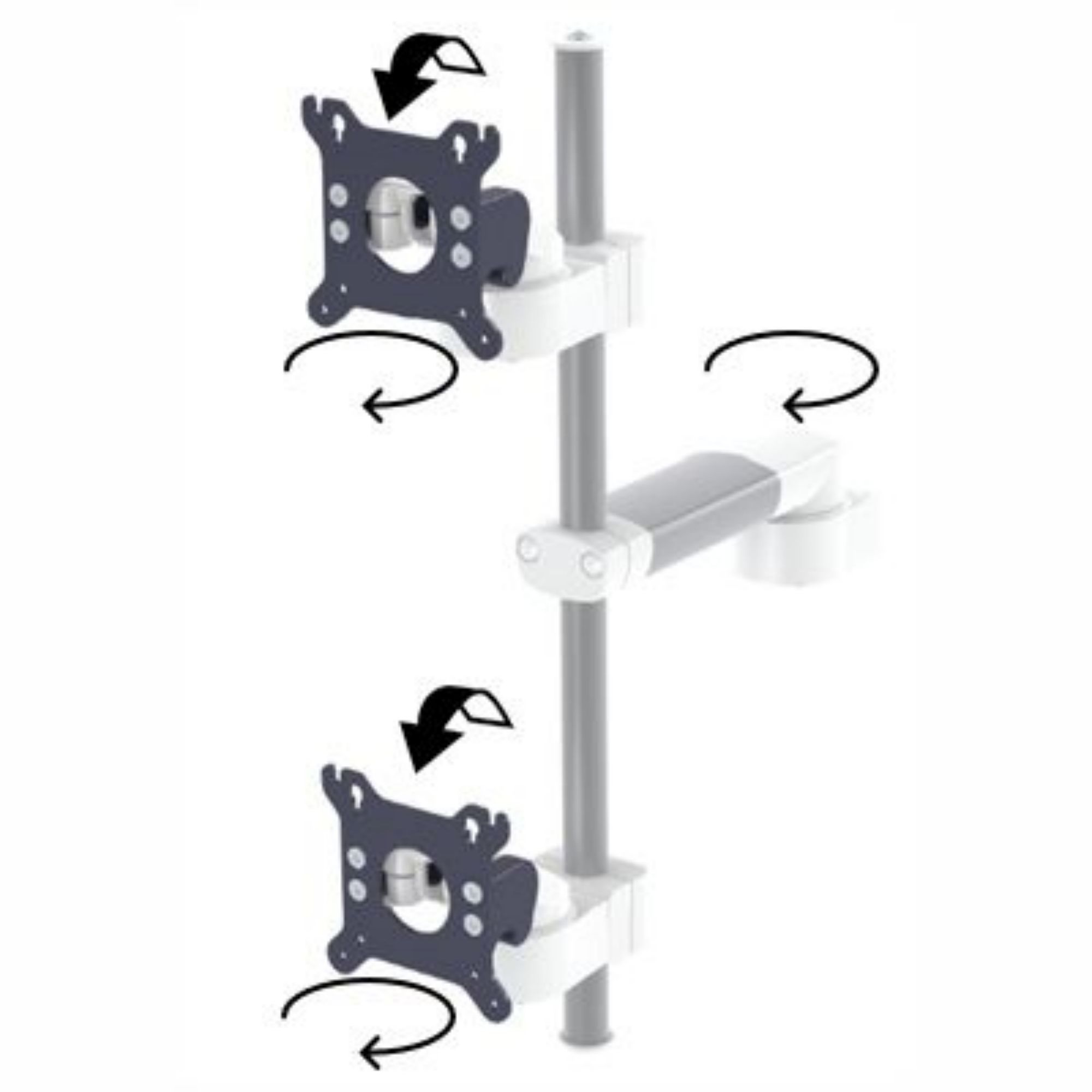

* Screen tilt: 20° down and 20° up

* Screen rotation: 45° to the right, 45° to the left.

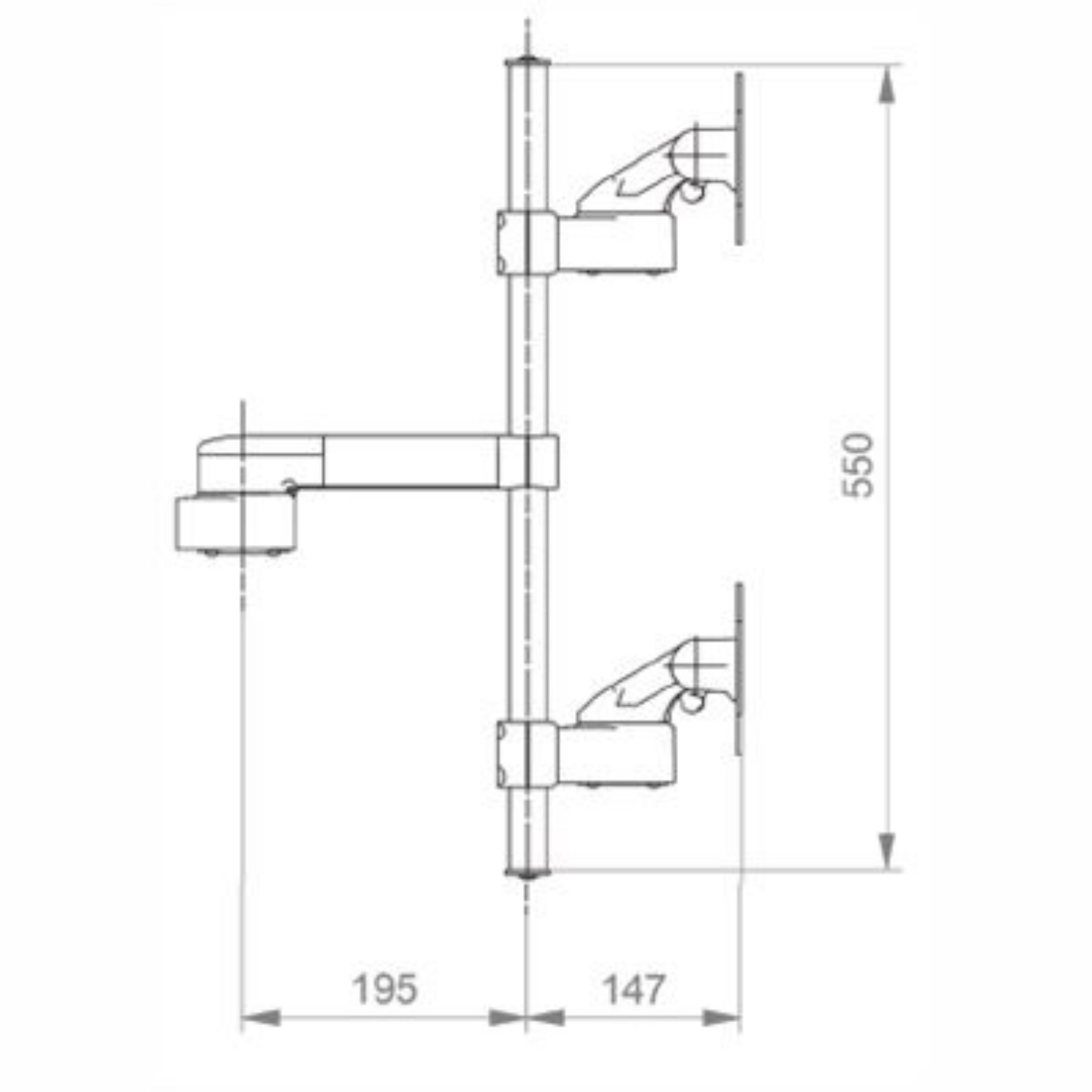

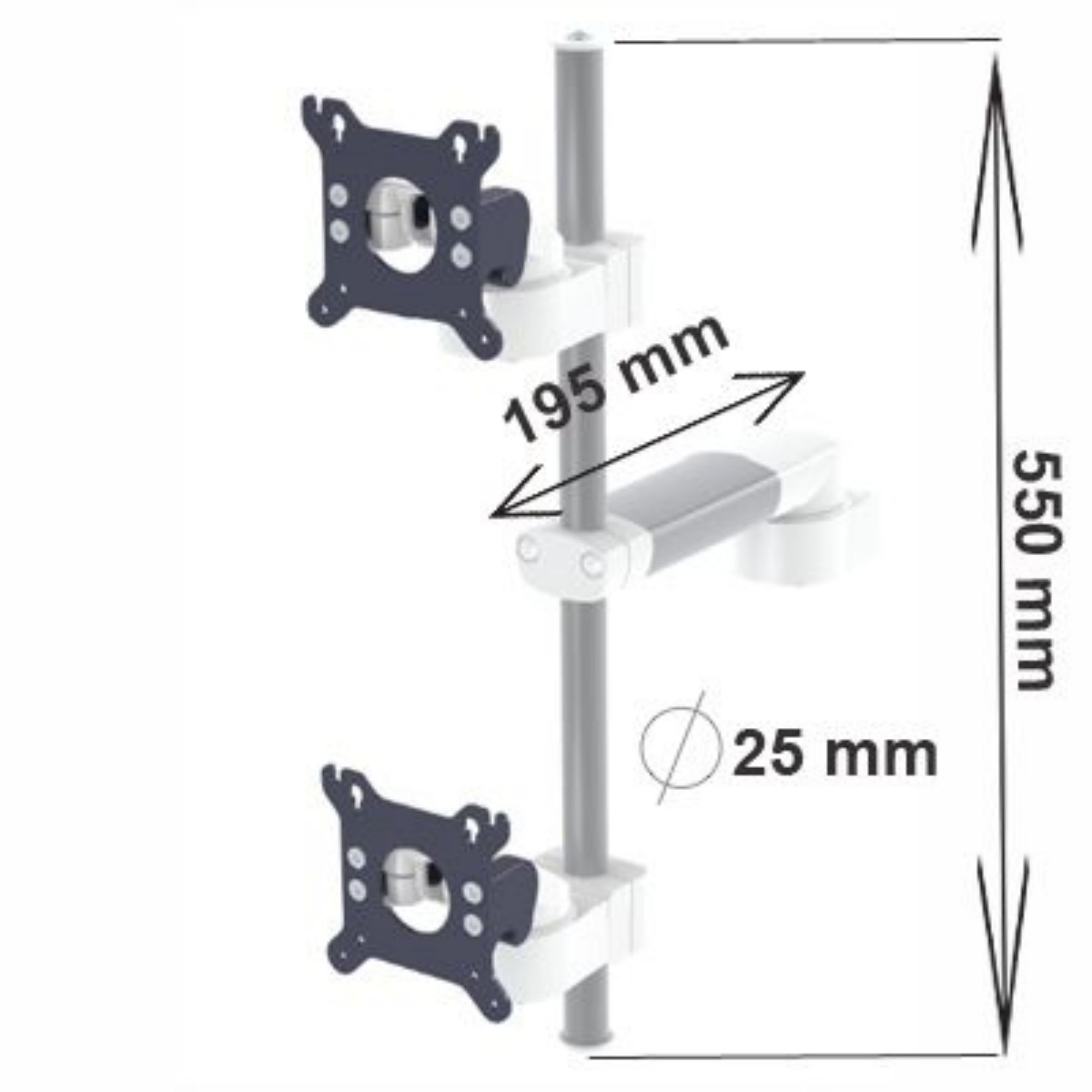

* Arm rotation: 45° right, 45° left.Total length 387 mm

* Compatible with multimedia terminals (TMM)

* Colour RAL 7024 (Graphite grey) and White

* All our medical arms are in conformity with : CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years

Please note: This arm can also be installed on one of our columns or medical carts
