Medical Arm 240 mm equipped with a pole for 2 screens,

Mounting on 23 - 40 mm diameter variable pole

Product number: WM 998.846 - Medical Arm 240 mm equipped with a pole for 2 screens, Mounting on 23 - 40 mm diameter variable pole

Product sheet PDF

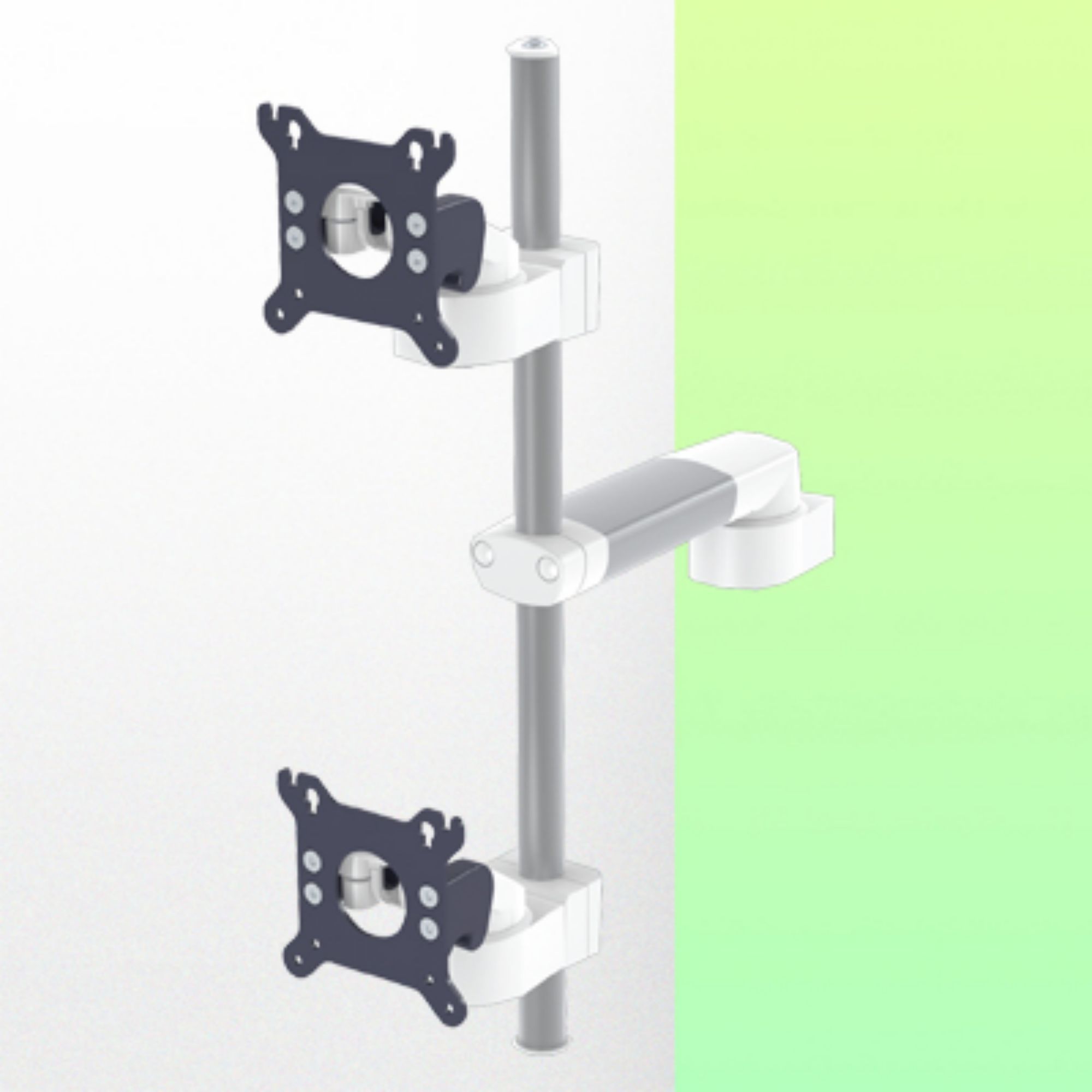

This 240mm Horizontal Medical Arm with pole allows two LCD screens to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning in every detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

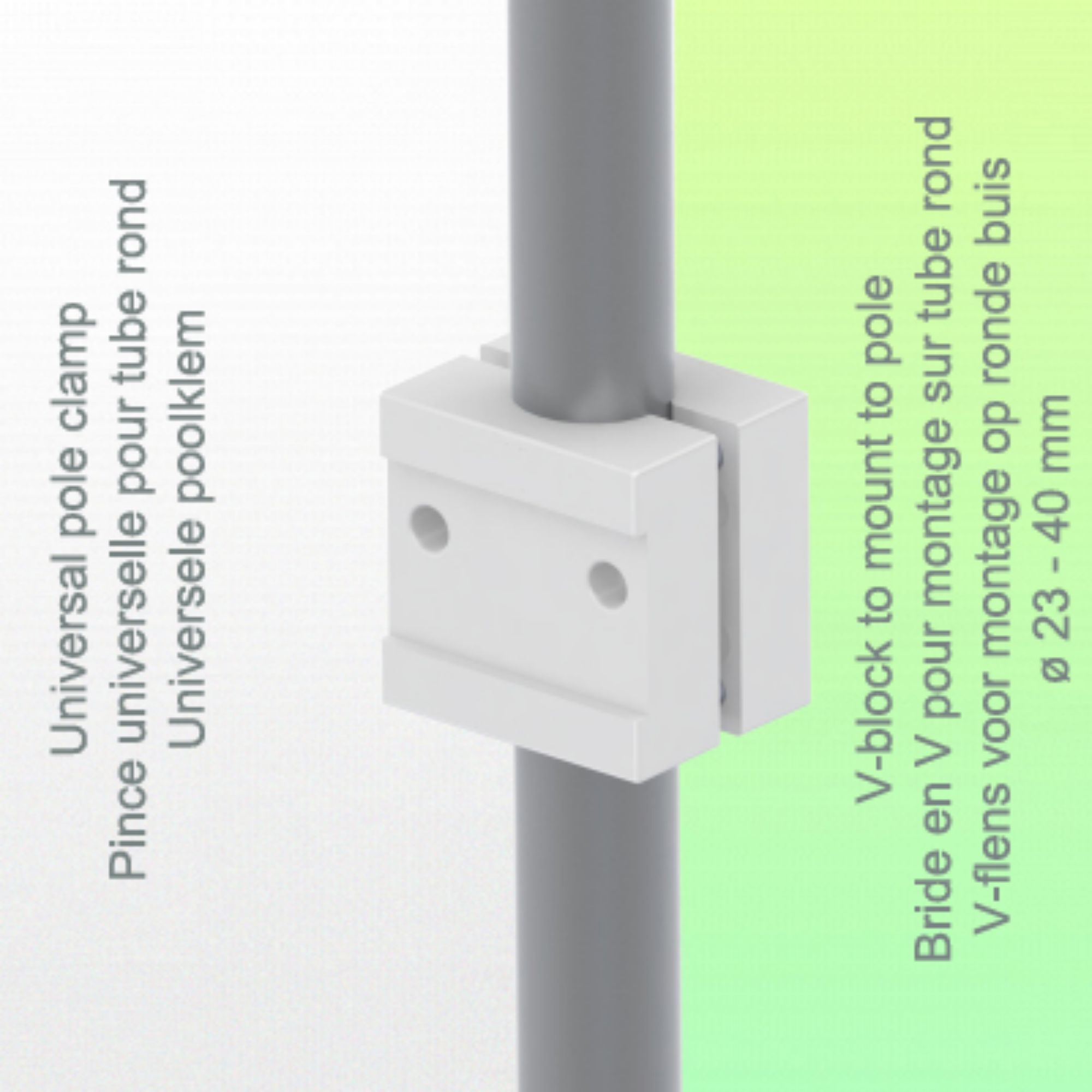

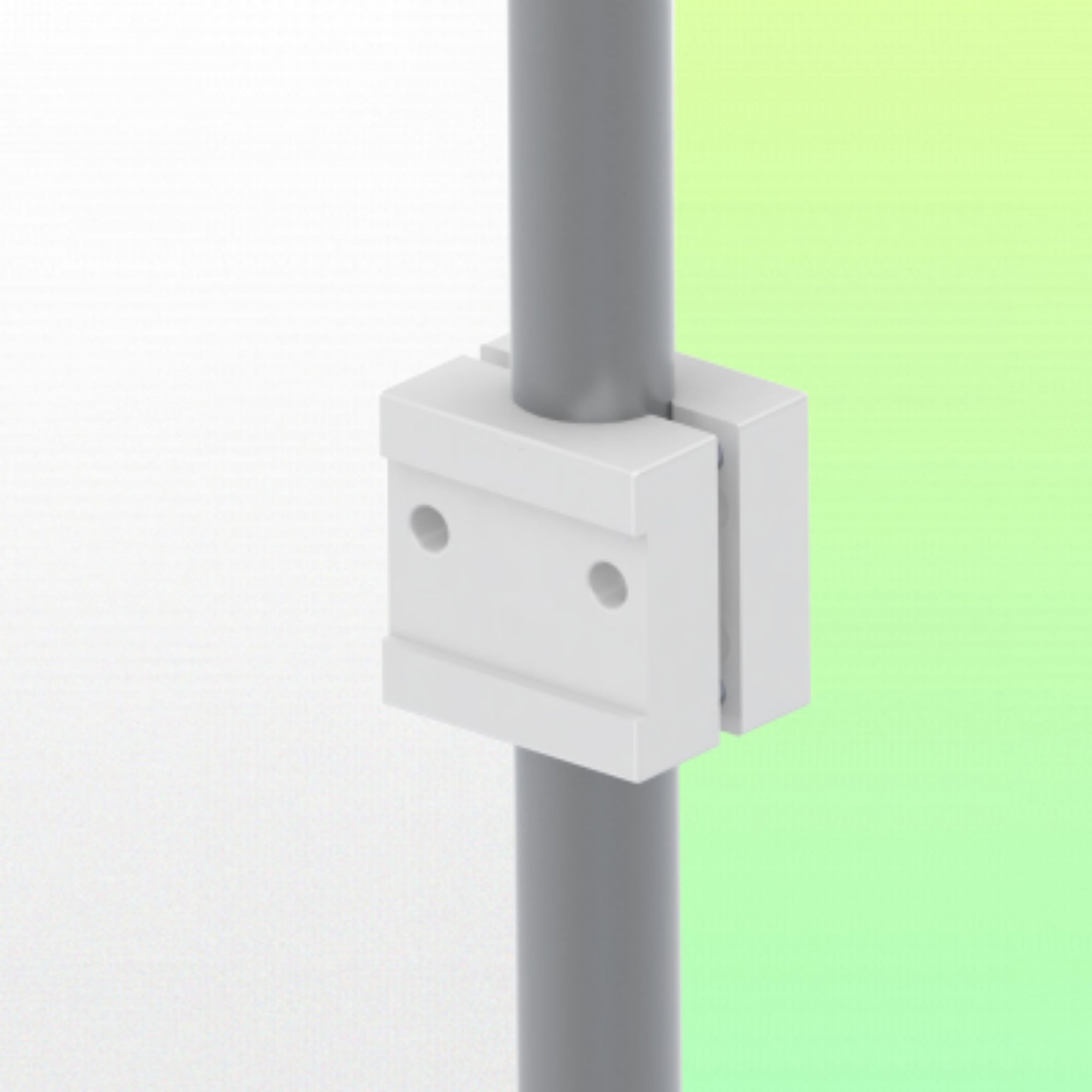

* Fixed on a 23 - 40 mm variable pole, including fixing ring.

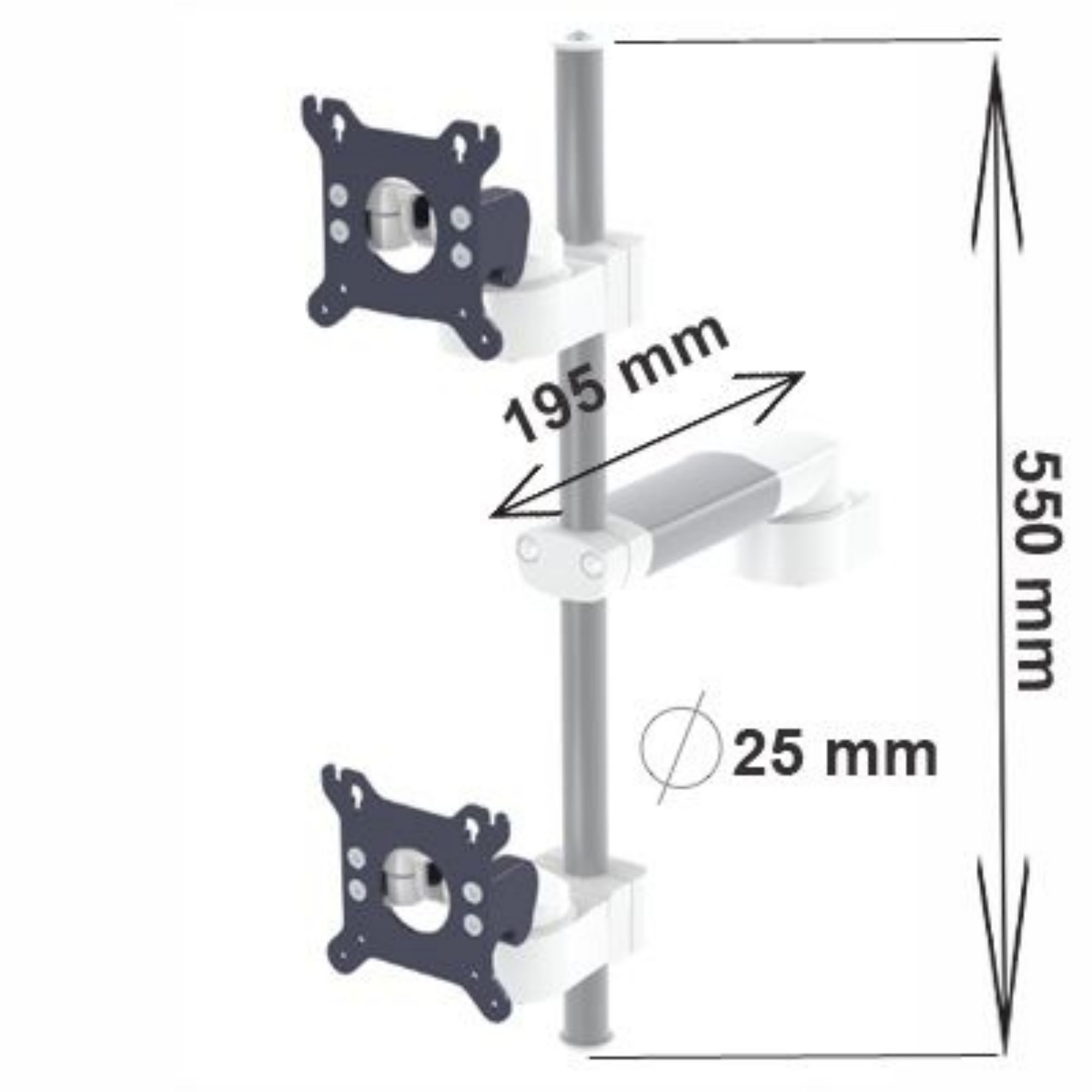

* This medical arm simply attaches to a pole with a diameter of 25 mm and then

This medical arm is simply attached to a pole with a diameter of 25 mm and then adjusted to the desired height and fixed.

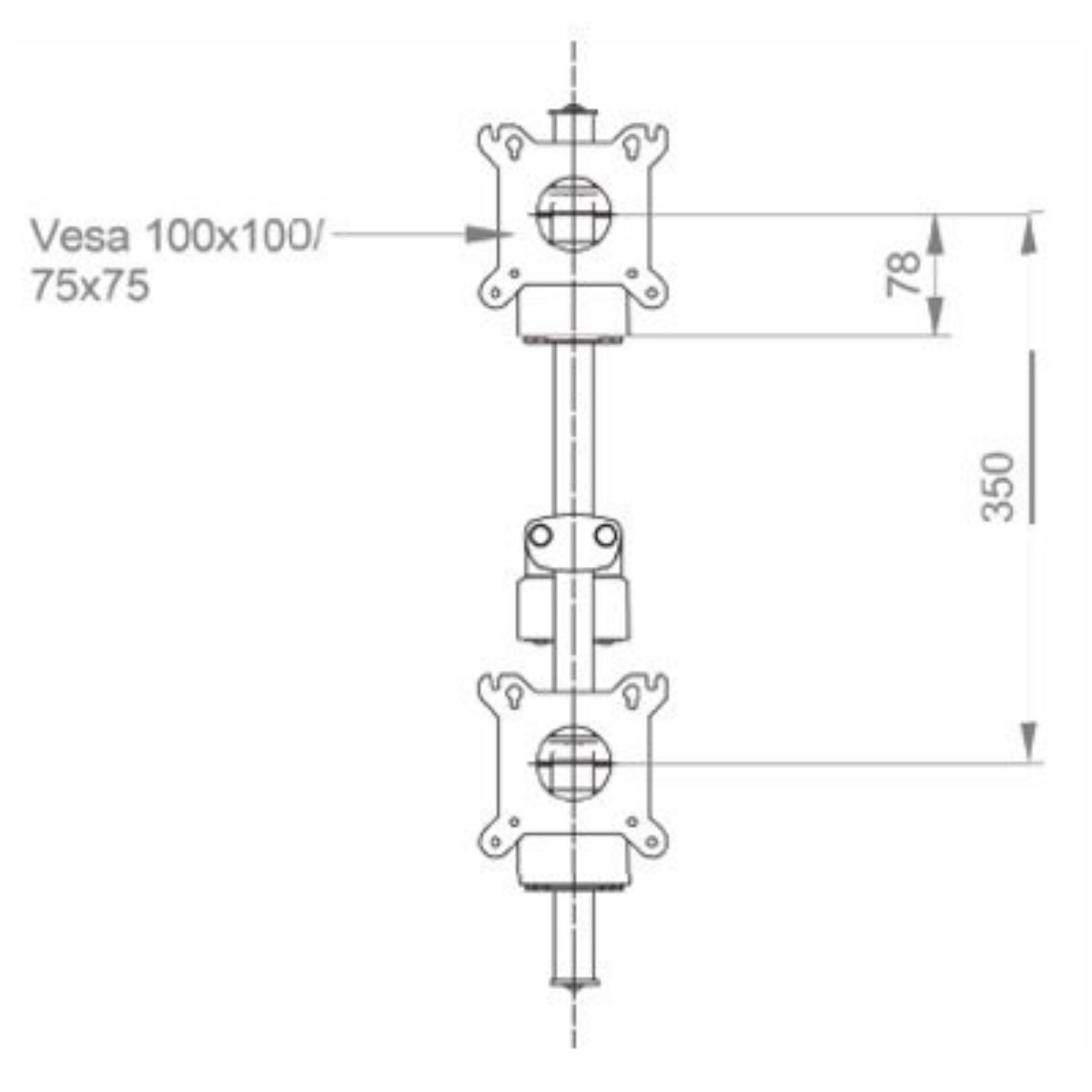

* The ball joints comply with the standard for mounting screens:

VESA MIS-D 75 mm and 100 mm.

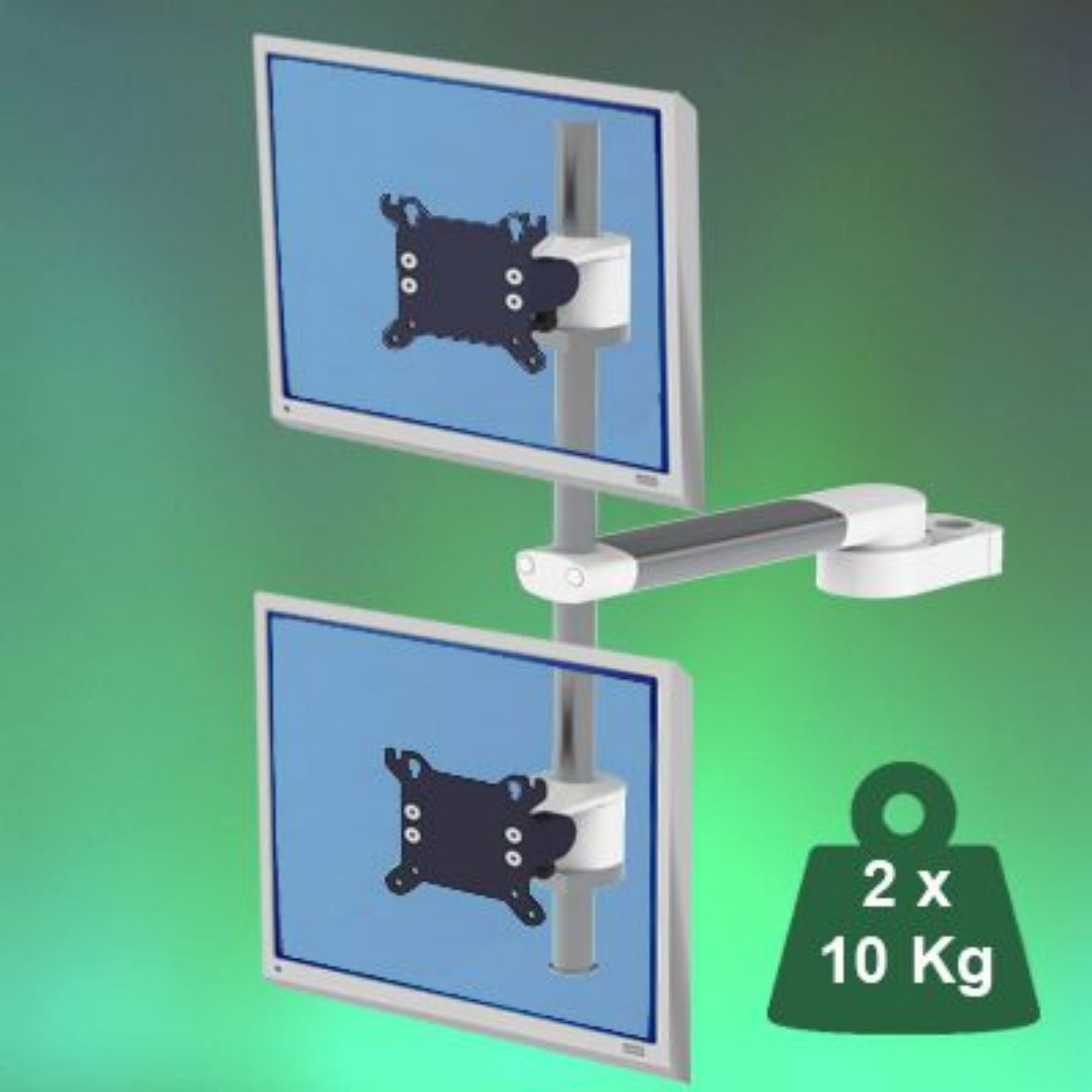

* Compatible with screens weighing up to 10 kg, i.e. 20 kg in total.

* Touch screen stability.

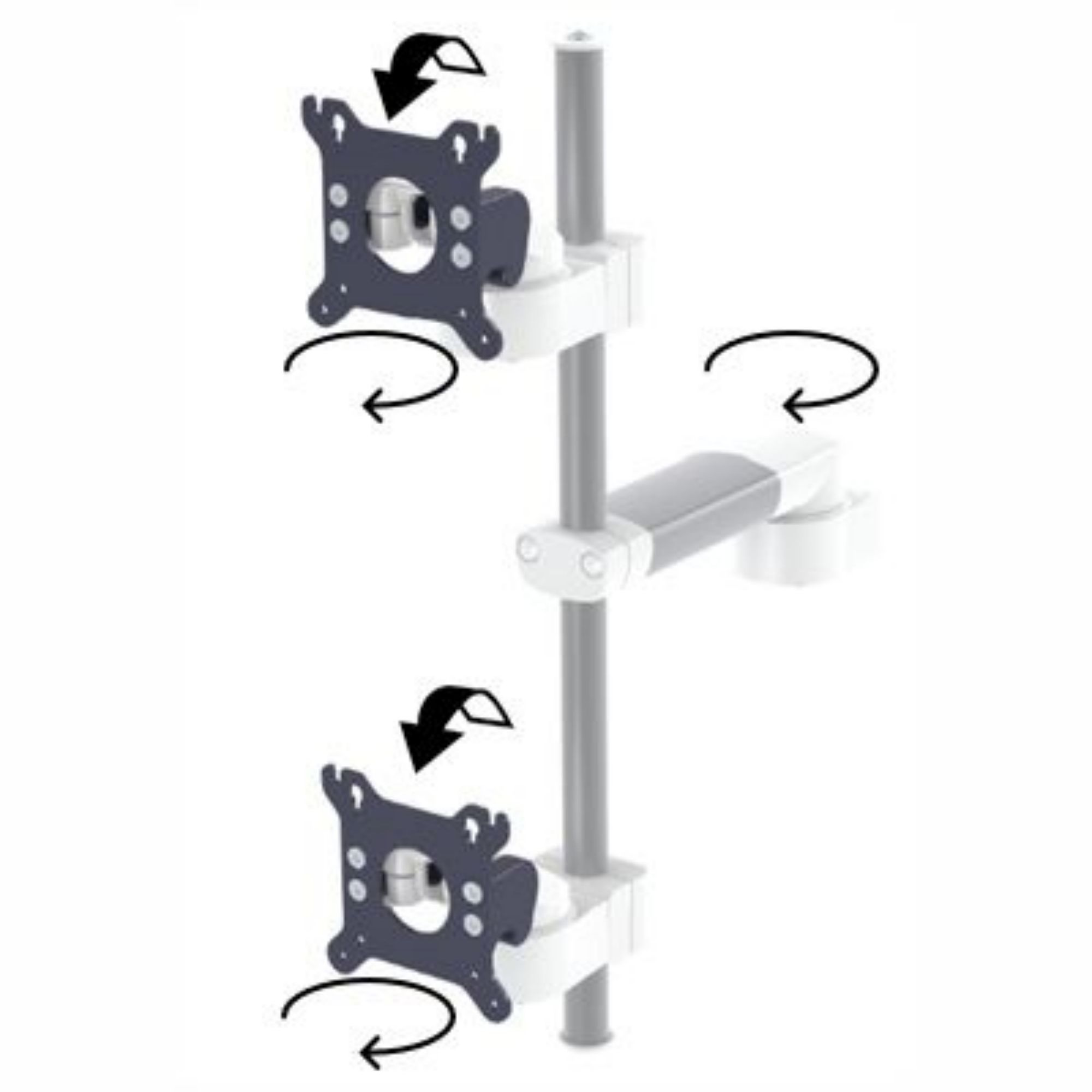

* Screen tilt: 20° down and 20° up

* Screen rotation: 45° to the right, 45° to the left.

* Arm rotation: 45° right, 45° left.

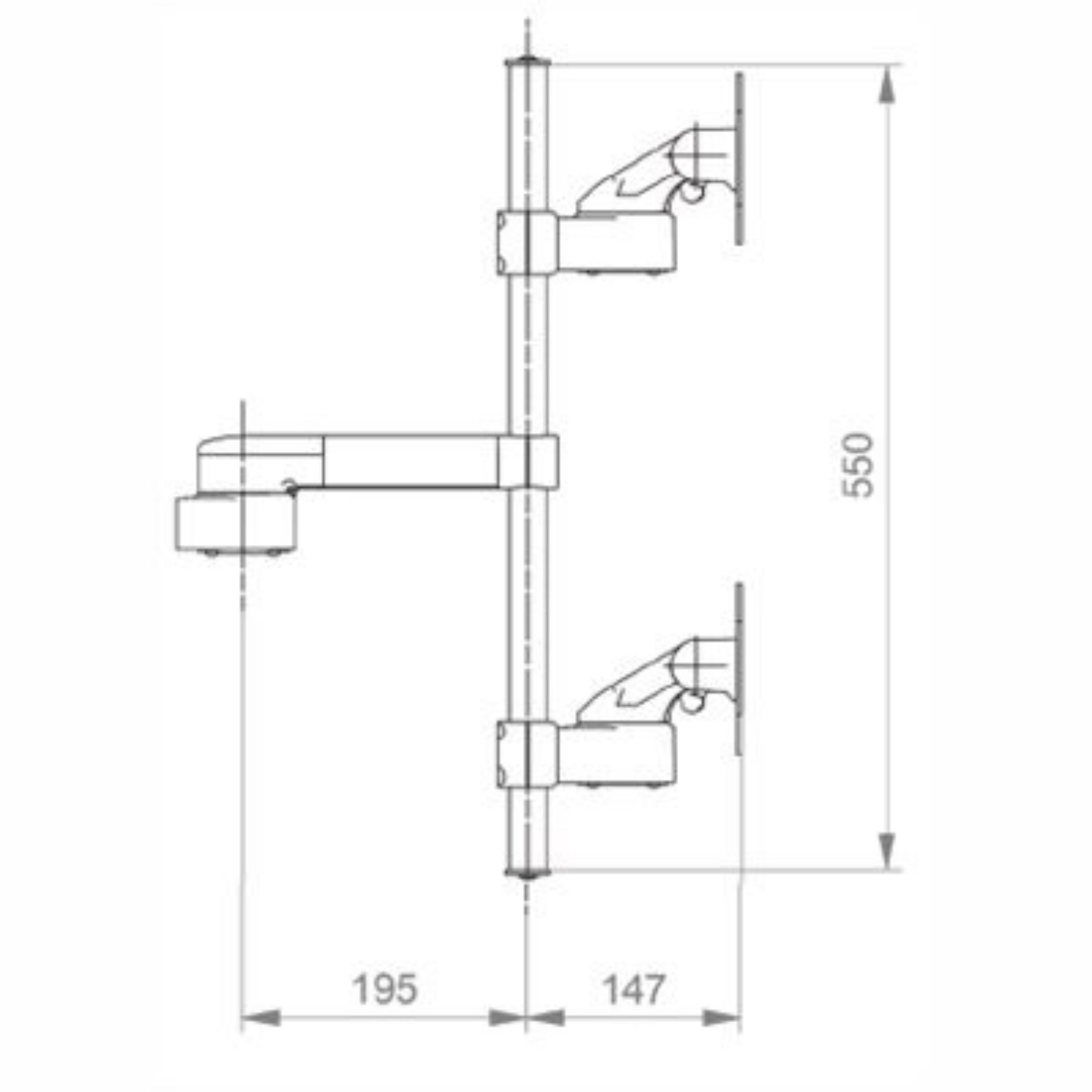

* Total length 387 mm

* Compatible with multimedia terminals (TMM)

* Colour RAL 7024 (Graphite grey) and White

* All our medical arms are in conformity with :

CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years

* Please specify Pole diameter when ordering
